SOOT-A-MATIC®

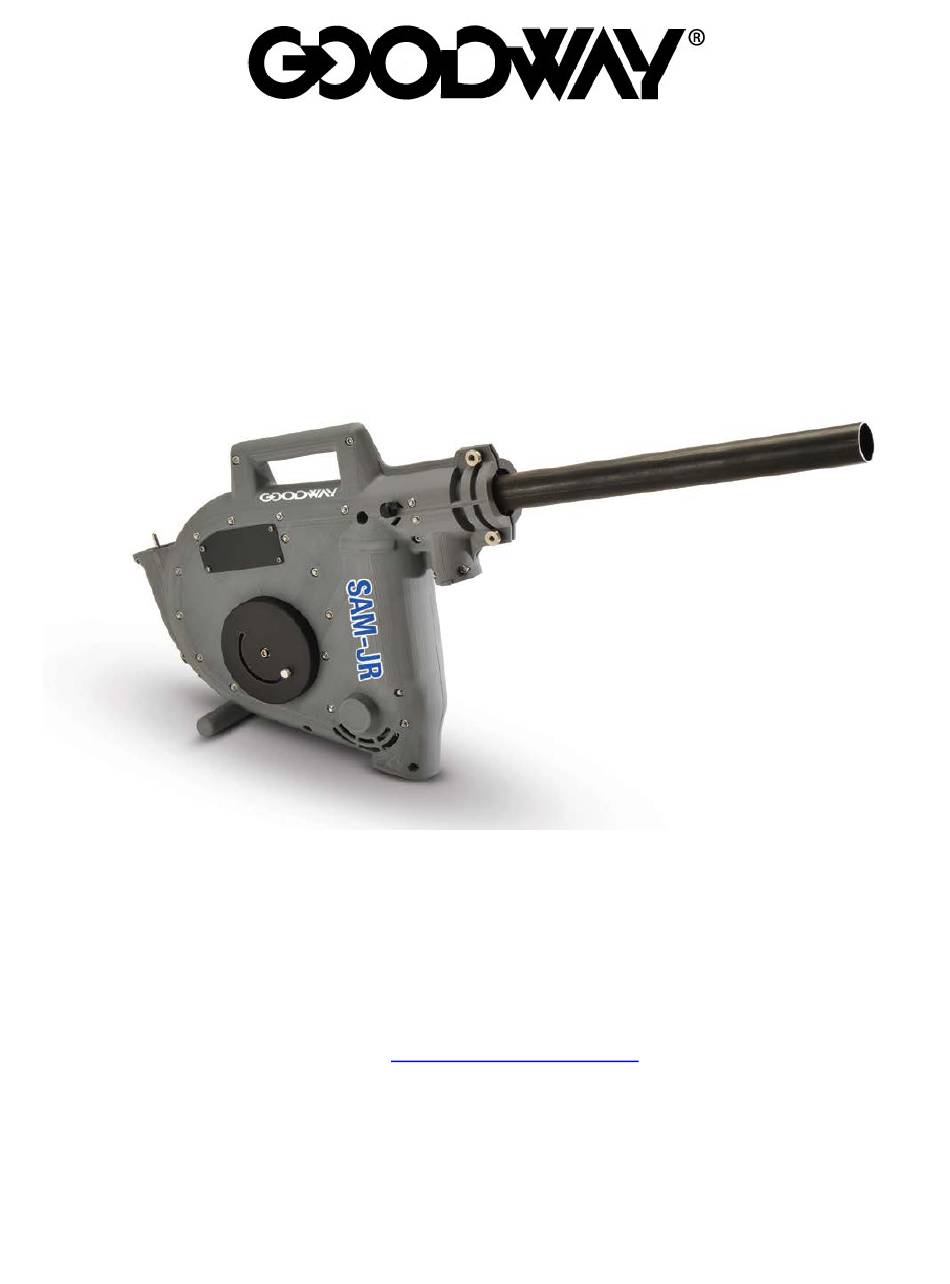

SAM-JR Firetube Boiler Cleaning Machine
Operating & Maintenance Manual
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 0902-6384 USA
Phone (203) 359-4708
Toll Free 1-800-333-7467
Fax (203) 359-9601
www.goodway.com
E-Mail:
goodway@goodway.com
Copyright 2014 Goodway Technologies Corp., Stamford, CT, U.S.A.
Effective Date: June 1, 2016
Goodway® is a registered trademark of Crossford International
Goodway reserves the right to improve products - contact the factory for the latest configuration and uses

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOOT-A-MATIC SAM-JR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goodway SOOT-A-MATIC SAM-JR

Summary of Contents for Goodway SOOT-A-MATIC SAM-JR

  • Page 1 E-Mail: goodway@goodway.com Copyright 2014 Goodway Technologies Corp., Stamford, CT, U.S.A. Effective Date: June 1, 2016 Goodway® is a registered trademark of Crossford International Goodway reserves the right to improve products - contact the factory for the latest configuration and uses...

  • Page 2: Table Of Contents

    Thank you for purchasing Goodway’s “SAM-JR” Firetube Boiler Punching System. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electrical shock, fire and/or personal injury. • Keep your work area clean and well lit. Cluttered benches and work areas invite accidents. •...

  • Page 4: Grounding Instructions

    Many accidents are caused by poorly maintained tools. • Use only GOODWAY recommended attachments. • When servicing a tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury.

  • Page 5: Getting Ready

    enough to carry the current the product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the correct size to use depending on cord length and nameplate amperage rating.

  • Page 6: Clutch Adjustment

    side of the machine). Loosen and adjust thumbscrew to appropriate length. The machine will automatically stop at this distance for the balance of the tubes. 4. When the motor has stopped, reverse the switch and hold until the brush comes completely back into the machine. WARNING: Running the steel tape all the way out to the end under power can result in gear and/or tape damage.

  • Page 7: Maintenance

    IMPORTANT: NEVER APPLY OIL OR GREASE TO THE STEEL TAPE OR THE BEARINGS. These parts should be kept clean and dry for proper operation of the machine. MAINTENANCE 1. After each cleaning period, run the tape out to the 18’ (95.5m) mark and let it roll out to the stop.

  • Page 8: Exploded Views

    EXPLODED VIEWS SAM-JR 6/1/2016...
  • Page 9 SAM-JR 6/1/2016...
  • Page 10 ITEM NO. PART NUMBER QTY. S4-001 Case, Right Side S4-002 Case, Left Side S4-003 Tape Reel 4&5 S4-011 Tape Latch Assembly 6&7 S4-012 Tape Latch Guide Assembly S4-046 Sprocket, 45T, Steel S4-051 Steel Spring HWS-2520-1.75-LSH HWN-251 Nylock S4-015 Tape Access Cover S4-004 Indicator Cover S4-005 Indicator Cover Stop S4-058 Knob, Distance Set...
  • Page 11 S4-026 Tape Scraper S4-027 Pin Tape Scraper L234 Label, Zero Arrow S4-030-200 Sam Jr 3 Nozzle For 2.00 OD Tube S4-033 Ferrule Brush Holder Hex S4-034 Swivel Stem S4-BRUSH-200 Brush 2.00 OD HWS-1024-038SH Cap Screw .25-20 x .38L S4-055 Bushing .38 x .75 x .063 S4-035 Ferrule Wedge 715-1 Thrust Washer .38 x 1.5 S4-067 Shoulder Screw 8-32 x .75...

  • Page 12: Wiring Diagram

    SAM-JR 6/1/2016...
  • Page 13 SAM-JR 6/1/2016...
  • Page 14 We Are Here to Serve You! For Sales Call: 1-800-333-7467 For Service Call: 1-800-370-2855 Goodway Technologies Corporation manufactures and distributes a complete line of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Floor Machines, Hi-Pressure Washers and other maintenance related equipment.
