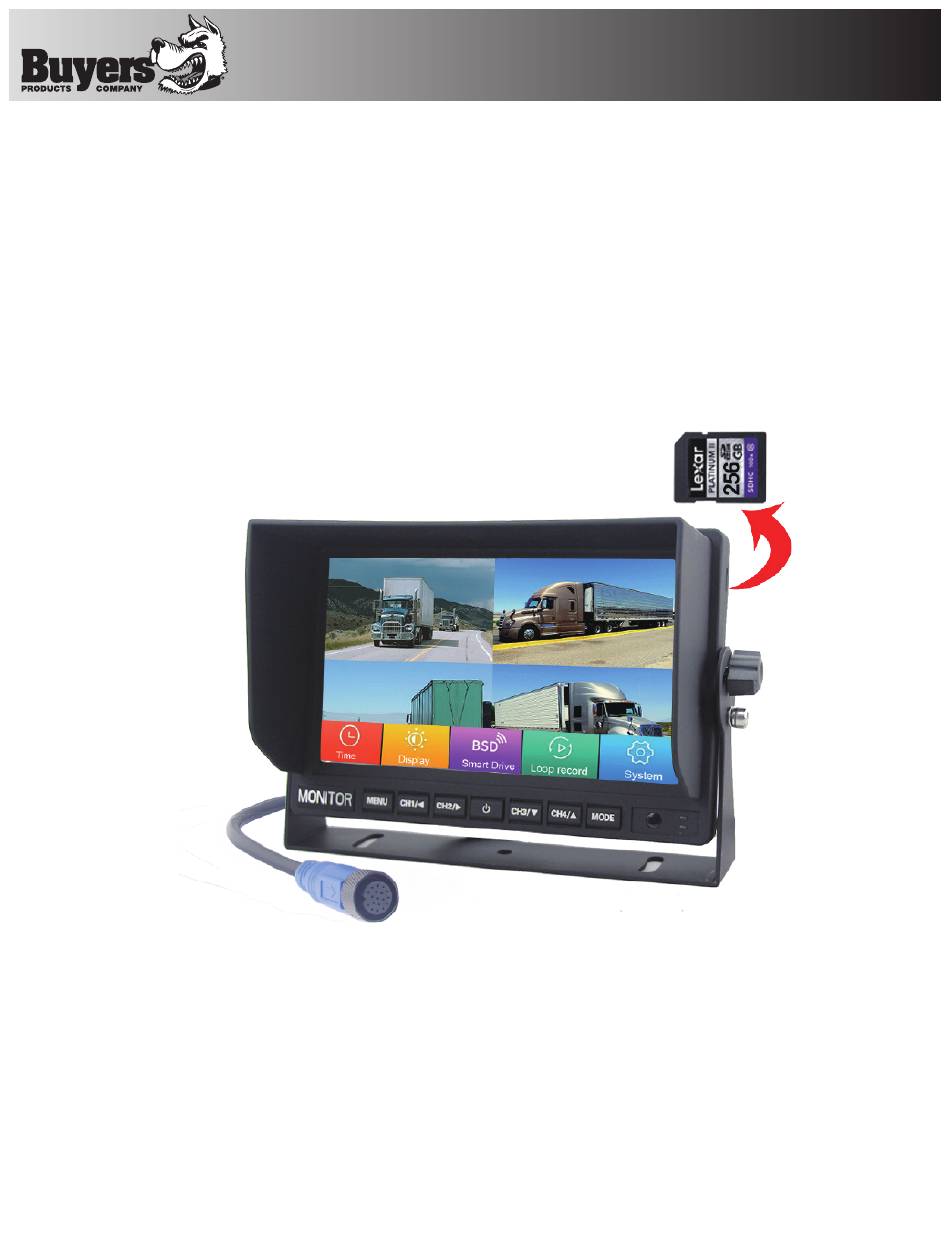

- Page 1 Phone (440) 974-8888 Fax 800-841-8003 8883060 Quad Screen Back Up Camera System with DVR & Blind Spot Detection (BSD)
-
Page 2: What's In The Box
What’s in the Box? Replacement QTY. Description Part Number 7" TFT LCD Color Monitor with Standard U-Bracket Mount, 8883061 Pedestal Mount and Flush Mount Sun Shade Power Harness 8883052 Remote Control 16' Camera Cable 8883116 65' Camera Cable 8883165 Blind Spot Cameras and Gasket Pad 8883062 Front/Rear Cameras 8883053... - Page 3 Introduction Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear Observation System with DVR function and Blind Spot Detection. With this manual you will be able to properly install and operate the unit.
-
Page 4: Safety Information
Safety Information WARNING • Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. • Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. - Page 5 Safety Information Please follow these guidelines when installing and using your camera system: • Electric shock or product malfunction may occur if this product is installed incorrectly. • Use this product within the voltage range specified. Failure to do so can cause electric shock or product malfunction including potentially failure of the camera system.
-
Page 6: Product Usage
Product Usage The Rear Observation System is designed to assist the driver to safely detect people and/or objects helping to avoid damage or injury. However, you the driver, must use it properly. Use of this system is not a substitute for safe, proper, or legal driving. -
Page 7: Before Beginning Installation
Before Beginning Installation Before drilling, check that no cable or wiring is on the other side of the wall. Clamp or secure all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and components causing electrical interference. - Page 8 Installation Guide Camera Cable Routing 1. Be sure to route the cable carefully. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges. Do not kink the cable and keep the cable away from HOT and rotating parts, such as but not limited to, exhaust systems and drive shafts.
- Page 9 Installation Guide Power Harness • To power the system, connect the power +12-24VDC (yellow wire) and ACC (red wire) to ignition power. Connect the ground (black wire) to chassis ground. • Each camera can be seen at any time by simply pressing the power button and using each channel button to toggle.
- Page 10 Display Function and Operation Display Button Function and Operation • Touch HOME symbol on screen or short press MENU button to enter the on screen display (OSD) menu. Select the option on the menu bar by hitting CH1 and CH2 buttons or by touching the touch screen to select.
- Page 11 Display Function and Operation The RED dot will+ move to the next corner. When you’re finished adjusting the shape, touch the SAVE button on the touch display. • Follow this same instruction to adjust both BSD Cams (Left Cam and Right Cam) •...
- Page 12 Display Function and Operation • Interval Record – Select OFF/1 hour/12 hours/24 hours option. • Record Mute – Use the touch screen to turn the record audio feature ON or OFF. When ON, the audio from the camera will be recorded. •...
- Page 13 Standard U-Bracket Monitor Installation 1. Remove the thumb and allen screw from the monitor then remove monitor. Place bracket in desired location and fasten down with 3 screws. (See below pictures) 2. Using the thumb and allen screws put the monitor into the bracket, adjust angle, and lock it.
- Page 14 Optional Monitor Installations Pedestal Mount 1. Using screws, secure pedestal bracket. (See below pictures) self-tapping screw or machine screw 2. Secondly, slide the metal buckle piece on the top of the pedestal bracket into the notch on the back of the monitor.
-
Page 15: Wiring Diagram
Wiring Diagram CH1 Front CH2 Rear CH3 Left CH4 Right Black, Ground Yellow, Power +12V-24V Red, ACC Brown, CH1 Trigger Green, CH2 Trigger Blue, CH3 Trigger Grey, CH4 Trigger Remote Control Function 1. Turn on / off display monitor 7. CH4 single image full screen display 2. -
Page 16: Monitor Specifications
Monitor Specifications Screen size 7 inch Aspect ratio 16:9 Resolution 1024x600 Brightness 500cd/m Video 4 ways video input Video System PAL & NTSC automatically Voltage 12V-24V Power Consumption Normal working condition < 11.4w Impact Rating Language Multi-language OSD Menu Display Menu, Brightness, Color, Contrast Adjustable Built-In Speaker Bracket Accessories... -
Page 17: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays "No Signal" • Do a hard reset, unplug all cables and power cables, leave disconnected for 1 minute, and then re-connect. • Check to ensure that the connection to the camera is tight. •... -
Page 18: Warranty
Buyers Products Company, Inc. system after partial failure or use with improper accessories. - Page 19 In no event shall Buyers Products Company and/or its affiliates have any liability for any losses (whether direct or indirect,...
- Page 20 www.buyersproducts.com Phone (440) 974-8888 Fax 800-841-8003 If you have questions about this product, contact: 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax 800-841-8003 Email: support@buyersproducts.com www.buyersproducts.com IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
