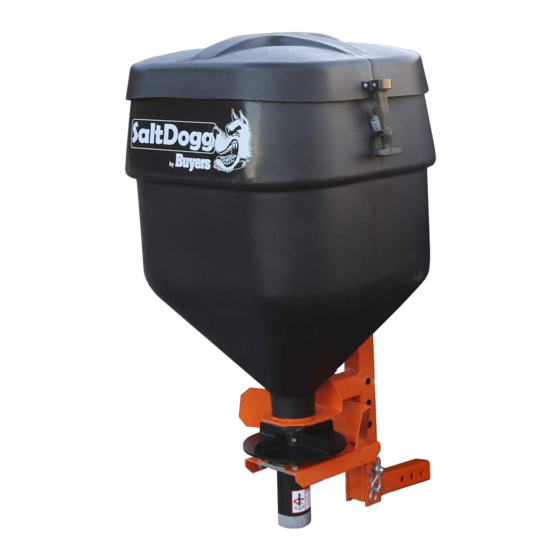

Buyers SaltDogg TGSUV1B Installation Instructions

Suv salt spreader

Download this manual

Installation Instructions

TGSUV1B

SUV Salt Spreader

SPREADER ASSEMBLY

Check contents of box against parts list to make

sure all components are included. When ordering

replacement or spare parts refer to parts list for

part numbers.

TOOLS NEEDED FOR ASSEMBLY

• 3/8 or 1/2 drives ratchet with 3/8, 7/16, 1/2, 9/16

& 15/16 sockets.

• 7/16, 1/2, 9/16 & 15/16 wrench.

• 1/8" Allen wrench

SPINNER SHIELD AND RECEIVER MOUNT

See Fig.1

Phone (440) 974-8888 • Fax (440) 974-0165

Toll-Free Fax 800-841-8003 • saltdogg.com

Install the 2" or 1¼" receiver mount (5 or 6) into

your truck or SUV receiver hitch. Secure receiver

mount using hitch pin (7). Attach the motor/frame

assembly (1) to the receiver mount by inserting the

5/8 bolt and nut (8, 9) in the bottom hole and the

hitch pin (7) in the top hole. It is recommended to

mount the frame at the highest possible

position for assembly purposes. Install the spin-

ner shield (10) with 3/8-16 x 1 hex head cap screws,

flat washers and hex nuts (11, 12, and 13). Position

the shield about a 1/2" away from the spinner and

center it to the spinner. The shield position can be

changed later to alter the salt pattern if needed.

9049 Tyler Blvd. • Mentor, Ohio 44060

—continued inside

Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Installation Instructions TGSUV1B SUV Salt Spreader SPREADER ASSEMBLY Check contents of box against parts list to make Install the 2" or 1¼" receiver mount (5 or 6) into sure all components are included.
Page 2 Fig. 1 Bill of Materials item part no. qty. description item part no. qty. description 3017105 Motor and Frame Assy., TGSUV1A – Washer, Flat 3/8 USS SST 3013283 Hopper, w/ Insert & Graphics, Assy., TGSUV1 – Screw, HHC 3/8-16 x 1 304 SST 3003571 –...
Page 3 Fig. 2 HOPPER & RETAINER Bill of Materials See Fig.1 on pg. 2 item part no. qty. description 3005473 Frame, Welded, TGSUV1A w/Sleeve Slide the hopper onto the sleeve below until the 3007502 Gate, Flow Adjuster, TGSUV1B holes in the hopper line up with the holes in the 30081391 Washer, Flat 1/4 SAE SST –...
Page 4 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com OPERATION Install unit on vehicle by sliding into receiver hitch. CAUTION: WHEN FILLING HOPPER, MAKE Be sure to install receiver safety pin. Plug wire CERTAIN THERE ARE NO LARGE OBJECTS harness (20) into the aux.
