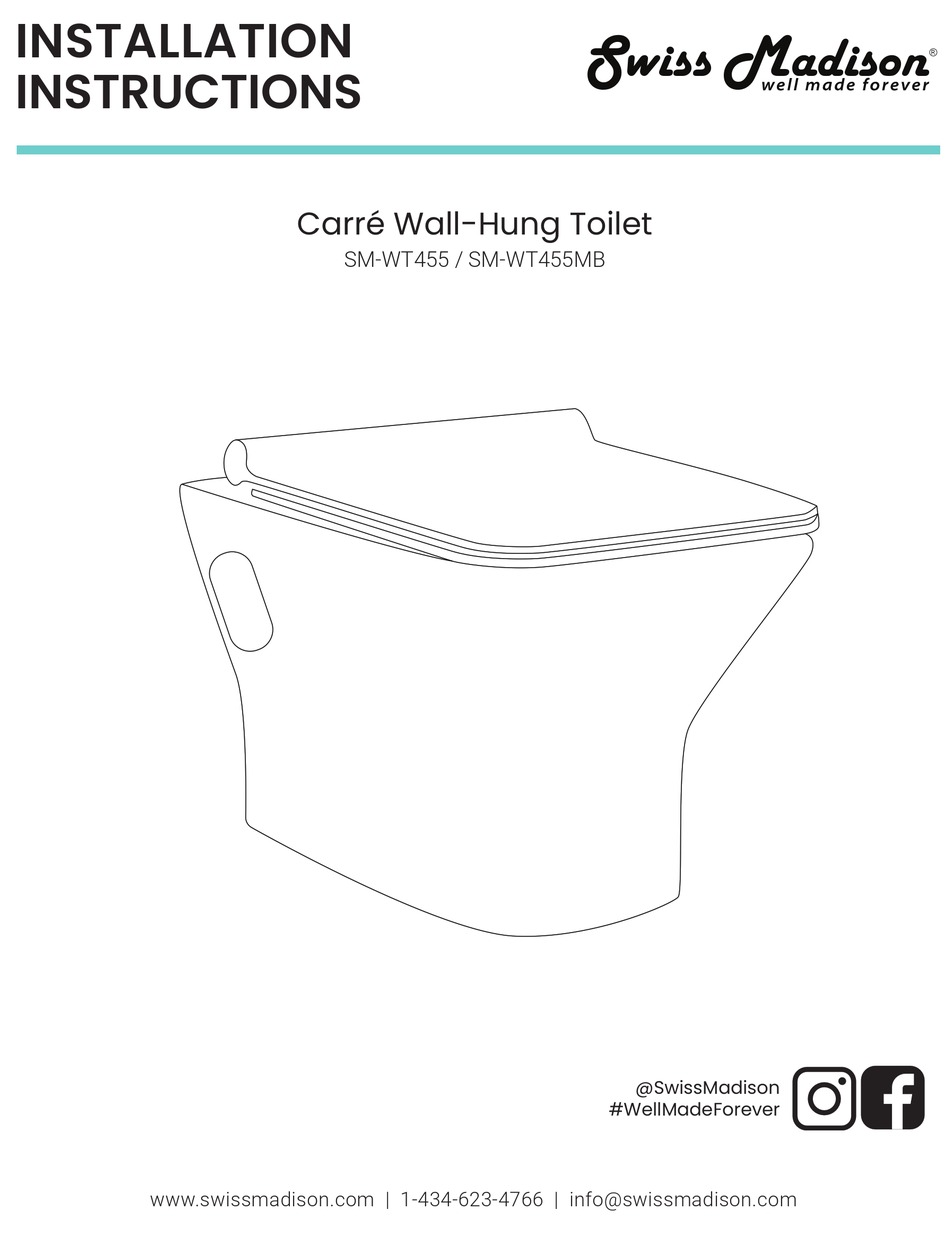

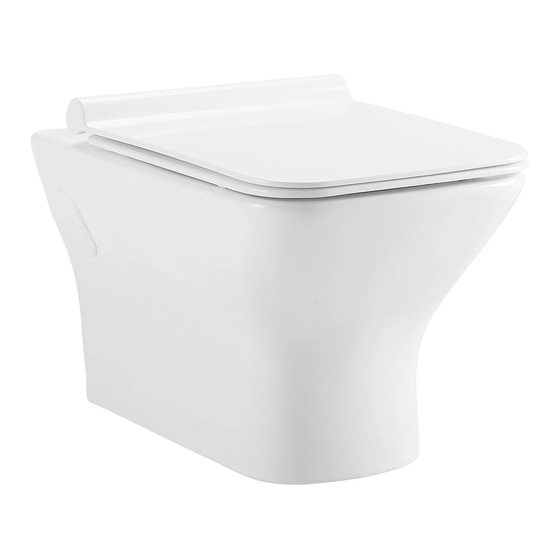

  • Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Carré Wall-Hung Toilet SM-WT455 / SM-WT455MB @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
  • Page 2: Prior To Installation

    Thank you for your purchase! Thank you for purchasing a Swiss Madison Wall-Hung Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
  • Page 3 WALL-HUNG TOILET MODELS H” 14 ³⁄4” W” 14 9⁄16” L” 21 7⁄16” Carré Collection SM-WT455 - White Model - Color 7⁄16” x 14 9⁄16” x 14 ³⁄4” SM-WT455MB - Matte Black L” x W” x H” — 2 —...
  • Page 4: Installation Instructions

    WALL-HUNG TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1.
  • Page 5 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 3. Determine Pipe Size · Apply lubricant on rubber washers of straight tube and connecting pipe, then insert into ceramic holes. · Draw lines on pipes as pictured below. 4. Cut Pipes · Using the marked lines, cut the straight tube and connecting pipe as instructed below. ·...
  • Page 6 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 5. Connect Pipes and Mount Toilet Bowl · Apply lubricant to the joint surface on straight tube and connecting pipe. · Adjust length of connecting bolt to be d+20mm then mount the toilet bowl to the wall. 6.
  • Page 7 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS Toilet Seat Installation 1. Dissassemble · Disassemble the cover cap and the hinge. Pull 2. Construct Hinges · Insert screw and nut into the hole on the hinge. · Attach blind hole screw fixing to the bottom on the screw. 3.
  • Page 8 WALL-HUNG TOILET INSTALLATION INSTRUCTIONS 4. Adjust and Cover Hinges · Be sure the hinge is all the way forward for proper seat fitting. · Place the covers onto the hinges. Incorrect: Correct: 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. ·...
  • Page 9: One-Year Limited Warranty

    If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
