- Page 1 Robustel EG5120 Hardware Manual EG5120 Hardware Manual Version: 1.0.5 Date: Nov. 21, 2023 RT090_HM_EG5120 1/10...
- Page 2 Robustel EG5120 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel EG5120 Hardware Manual Radio Specifications for Europe RF technologies 2G, 3G, 4G, 5G, GNSS, Wi-Fi*, BLE* Cellular EU Band： Non-EU Band： Frequency * 5G: NR SA/NSA: 4G: LTE FDD: B2/B4/B12/B13/B18/B19/B25/B26 NR_ n1, NR_n3, NR_n7, NR_n8, NR_n20, LTE TDD: B39/B41...
- Page 4 Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 RT090_HM_EG5120 5/10 EG5120 is a new generation of industrial edge computing gateway, supporting global 5G/4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11(bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications.
-
Page 6: Bottom View

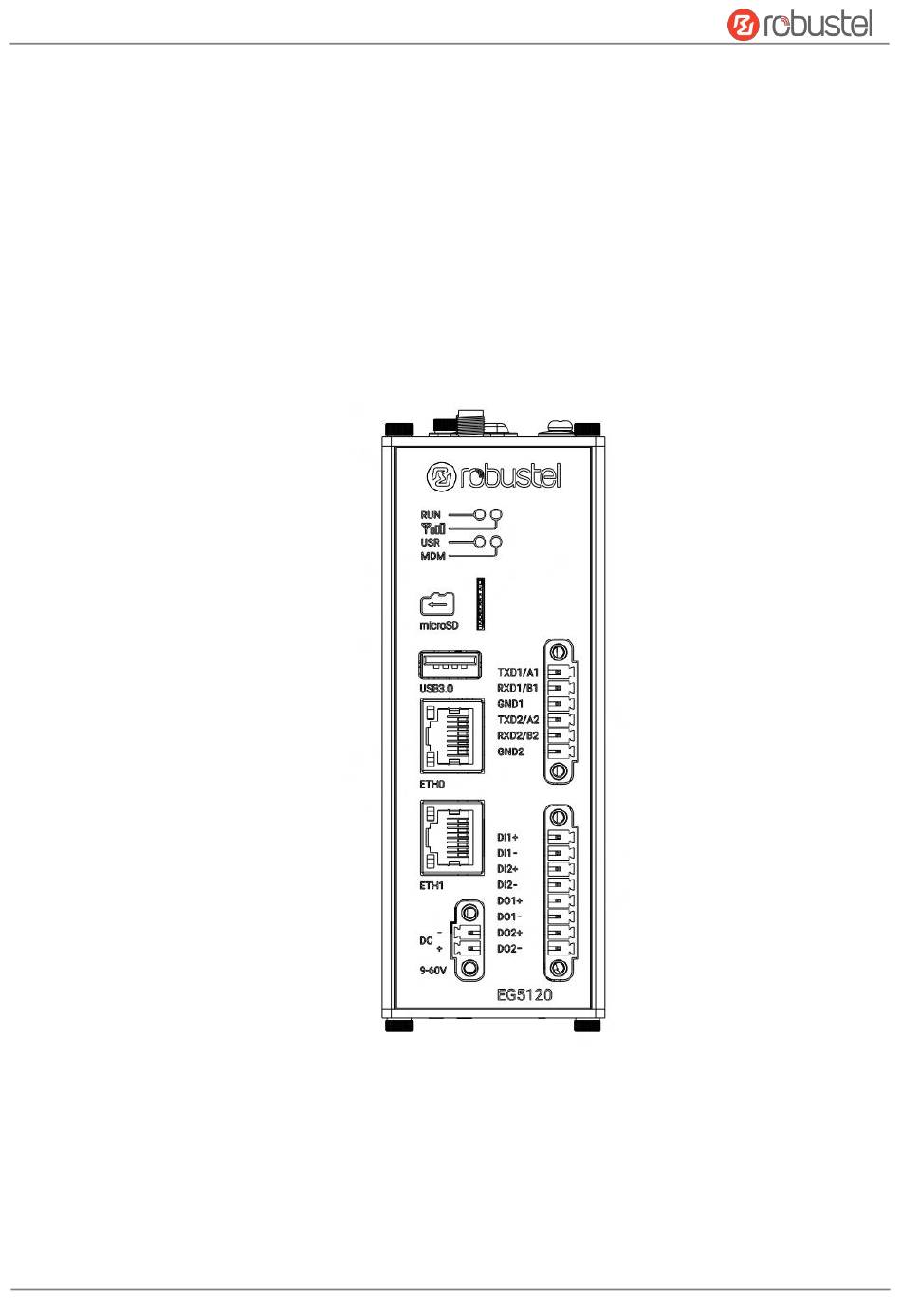

Robustel EG5120 Hardware Manual Panel Layout (May vary on different models, please refer to Table1) Top View Front View Bottom View Table1 Model Cellular Antenna port WIFI/BLE Antenna port GNSS Antenna port EG5120-A2AAZ-5G-A25GL B090701 EG5120-A2CAZ-5G-A25GL B090703 EG5120-A2AAZ-4L-A06GL B090702 EG5120-A2CAZ-4L-A06GL B090704... -
Page 7: Operation
Robustel EG5120 Hardware Manual Interface Descriptions Serial Ports. Two software configurable serial ports, could be configured as RS232 or RS485. Name RS232 Mode RS485 Mode TXD1/A1 data sending RS485_A RXD1/B1 data receiving RS485_B GND1 Ground Ground TXD2/A2 data sending RS485_A... - Page 8 Robustel EG5120 Hardware Manual 5. LED Indicators. Description On, solid Gateway system is initializing On, blinking Gateway starts operating Gateway is powered off Note: The RUN LED’s color is green Link connection is ready On, blinking Link connection with data transmission...
-
Page 9: Hardware Installation
Robustel EG5120 Hardware Manual Hardware Installation DIN Rail Mounting. Use 2 M3 screws to fix the DIN rail SIM Card Installation. Remove the SIM card cover to the device, then hang the DIN rail on the mounting to insert the SIM cards into the device, then screw bracket. - Page 10 Robustel EG5120 Hardware Manual Login to the Device Connect the gateway’s Ethernet port to a PC with After logging in, the home page of the web a standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
