Brighter X-STROBE IP User Manual

Hide thumbs

Advertisement

Table of Contents

BRIGHTER LIGHTING SP. Z.O.O.
ul. Warszawska 111
32-087 Bibice
POLAND
NIP: 9442248196
REGON: 361197164

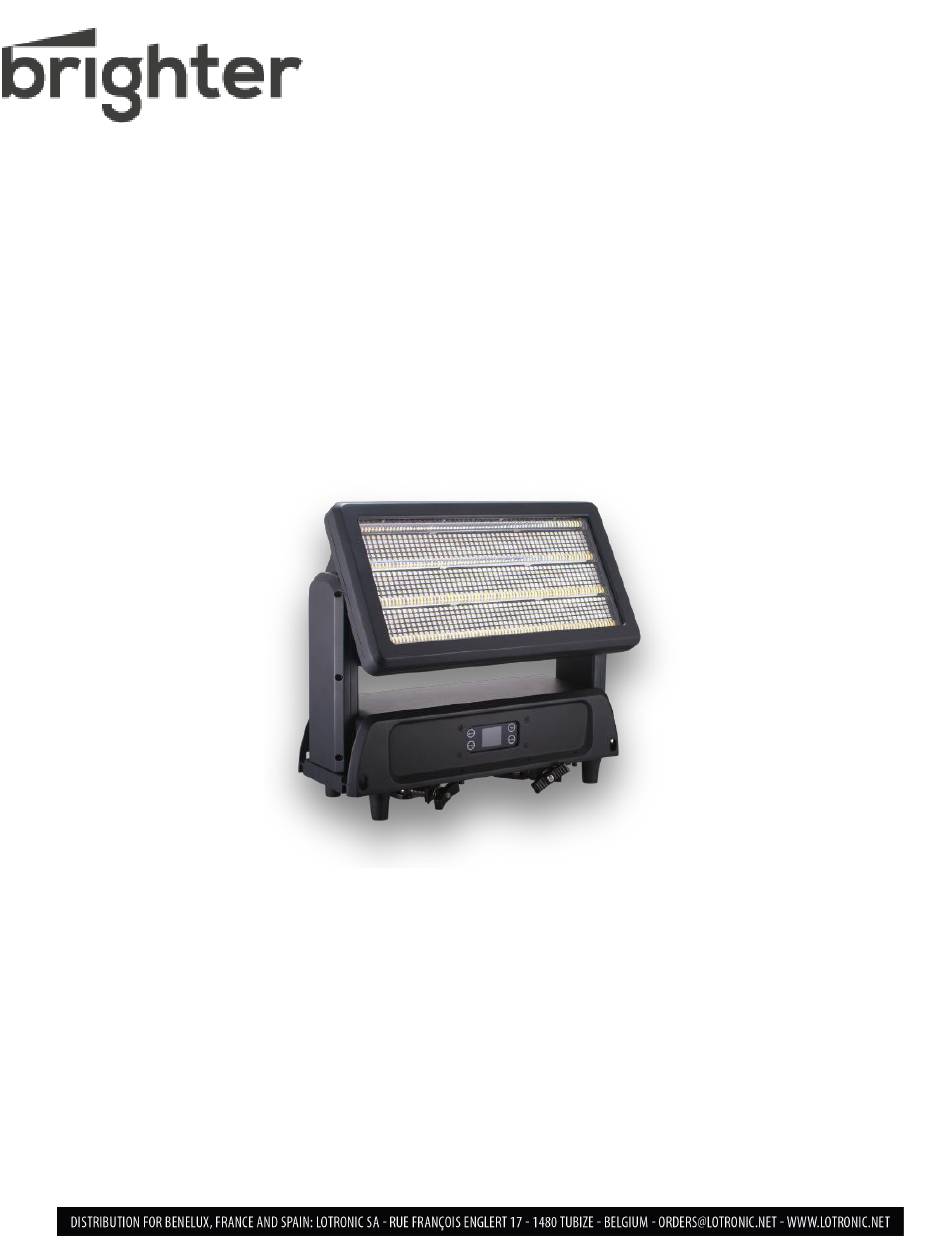

USER MANUAL
X-STROBE IP
USER MANUAL
This product manual contains important information about the safe installation and use of this projector. Please
read and follow these instructions carefully and keep this manual in a safe place for future reference.
Please read the instructions carefully before use!
Page 1 of 29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-STROBE IP and is the answer not in the manual?

Questions and answers

Related Manuals for Brighter X-STROBE IP

Summary of Contents for Brighter X-STROBE IP

  • Page 1 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 USER MANUAL X-STROBE IP USER MANUAL This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Safety Precautions

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 1. SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Manufacturer is not responsible for injuries and damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

  • Page 3: Maintenance

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 NEVER force a power cord connector into the fixture. If the power cord or any of its connectors are  damaged, replace it immediately with a new one of the same power rating DO NOT block any air ventilation slots ...
  • Page 4 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 • A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating •...

  • Page 5: System Menu

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 4.SYSTEM MENU Main Menu Sub Menu Option/Value Option/Value Address Channel Mode 15CH 21CH 27CH 105CH 108CH 198CH ArtNet sACN Control Mode DMX+ArtNet DMX+sACN Linear Square Dimmer Mode...

  • Page 6: Normal Sequence

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Calibration Tilt Adjust 0-255 Tilt Manual 0-255 FX Dim mode Dim 1 Dim 2 Dim 3 Dim 4 IP Mode:CUSTOM Ethernet 002.000.000.001 IP&Subnet Mask: 255.000.000.000 Network...
  • Page 7 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 RGWW RBWW GBWW RGBWW RGBWWCW 0-255 Manual 0-255 0-255 0-255 0-255 5.DMX CHART RDM: Manufacturer ID 09A4 Model ID 1900 3Ch Mode Value Function Description 0-255...
  • Page 8 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 No flash (single flash with ch.1 6-255 0,5-25Hz 0-255 Tilt -90° to 90° 15Ch Mode Value Function Description 0-255 Tilt -90° to 90° 0-255 Tilt Fine...
  • Page 9 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 27-31 1200hz 32-36 2000hz 37-41 4000hz 42-46 6000hz 47-51 8000hz 52-56 16000hz 57-61 24000hz 62-66 Dimmer Mode Linear 67-71 Square 72-76 I-Square 77-81 S-Shape 82-86 Fan Mode...
  • Page 10 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 126-140 141-155 FX10 156-170 FX11 171-185 FX12 186-200 FX13 201-215 FX14 216-230 FX15 231-245 FX16 246-255 FX Auto Run 12CH 0-255 Dark to light 13CH 0-255...
  • Page 11 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 156-205 Pulse open The larger value, the faster speed Dark to light 206-255 Pulse close The larger value, the faster speed Light to dark 11CH 0-255...
  • Page 12 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 156-205 Pulse open The larger value, the faster speed Dark to light 206-255 Pulse close The larger value, the faster speed Light to dark 19CH 0-255...
  • Page 13 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 47-51 8000hz 52-56 16000hz 57-61 24000hz 62-66 Dimmer Mode Linear 67-71 Square 72-76 I-Square 77-81 S-Shape 82-86 Fan Mode Fan Auto 87-91 Fan Silent 92-96 Fan Full...
  • Page 14 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-255 Section 1 Blue Dark to light 0-255 Section 1 Warm White Dark to light … … … … … … … … … … …...
  • Page 15 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Stop 193-255 CWW S>F 23CH 0-255 Cold White Dimmer Dark to light 24CH 0-255 Cold White Shutter Open 6-55 Synchronous strobe The larger value, the faster speed...
  • Page 16 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-10 No effect Menu set, no change 11-16 Dimmer smooth Dimmer menu set to smooth 17-21 Dimmer Fast Dimmer menu set to fast 22-26 LED FREQ...
  • Page 17 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 105CH Mode The pixels are arranged in a grid pattern as illustrated below: Value Function Description 0-255 Tilt -90° to 90° 0-255 Tilt Fine 16 bit adjustable...
  • Page 18 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 … … … … … … … … 97CH 0-255 Section 24 Red Dark to light 98CH 0-255 Section 24 Green Dark to light 99CH 0-255...
  • Page 19 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Stop 193-255 CWW S>F 105CH 0-255 Control The value must stop for 5 seconds to make Effect 0-10 No effect Menu set, no change 11-16 Dimmer smooth...
  • Page 20 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 108CH Mode The pixels are arranged in a grid pattern as illustrated below: Value Function Description 0-255 Tilt -90° to 90° 0-255 Tilt Fine 16 bit adjustable...
  • Page 21 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-255 RGBWW FX FX colour is controlled by colour chanels 6-20 21-35 36-50 51-65 66-80 81-95 96-110 111-125 126-140 141-155 FX10 156-170 FX11 171-185 FX12 186-200...
  • Page 22 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-10 No effect Menu set, no change 11-16 Dimmer smooth Dimmer menu set to smooth 17-21 Dimmer Fast Dimmer menu set to fast 22-26 LED FREQ...
  • Page 23 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 198CH Mode he pixels are arranged in a grid pattern as illustrated below: Value Function Description 0-255 Tilt -90° to 90° 0-255 Tilt Fine 16 bit adjustable...
  • Page 24 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 … … … … … … … … … … … … … … … … 97CH 0-255 Section 24 Red Dark to light 98CH 0-255...
  • Page 25 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 87-91 Fan Silent 92-96 Fan Full 97-101 Animation Fade Mode Dim 1 102-106 Dim 2 107-111 Dim 3 112-116 Dim 4 117-200 No Function No Function...

  • Page 26: Dynamic Effects

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6.SPECIFICATIONS CONSTRUCTION/PHYSICAL Dimensions: 493x170x200mm Weight: 14Kg Exterior Color: Black Housing Material: Magnesium-aluminum die-casting +aluminum profile DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0-25Hz Standalone: Yes...

  • Page 27: Dimensional Drawings

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 7.DIMENSIONAL DRAWINGS Page 27 of 29...
  • Page 28 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 The manufacturer reserves the right to make changes to technical parametes Page 28 of 29...
  • Page 29 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Page 29 of 29...
