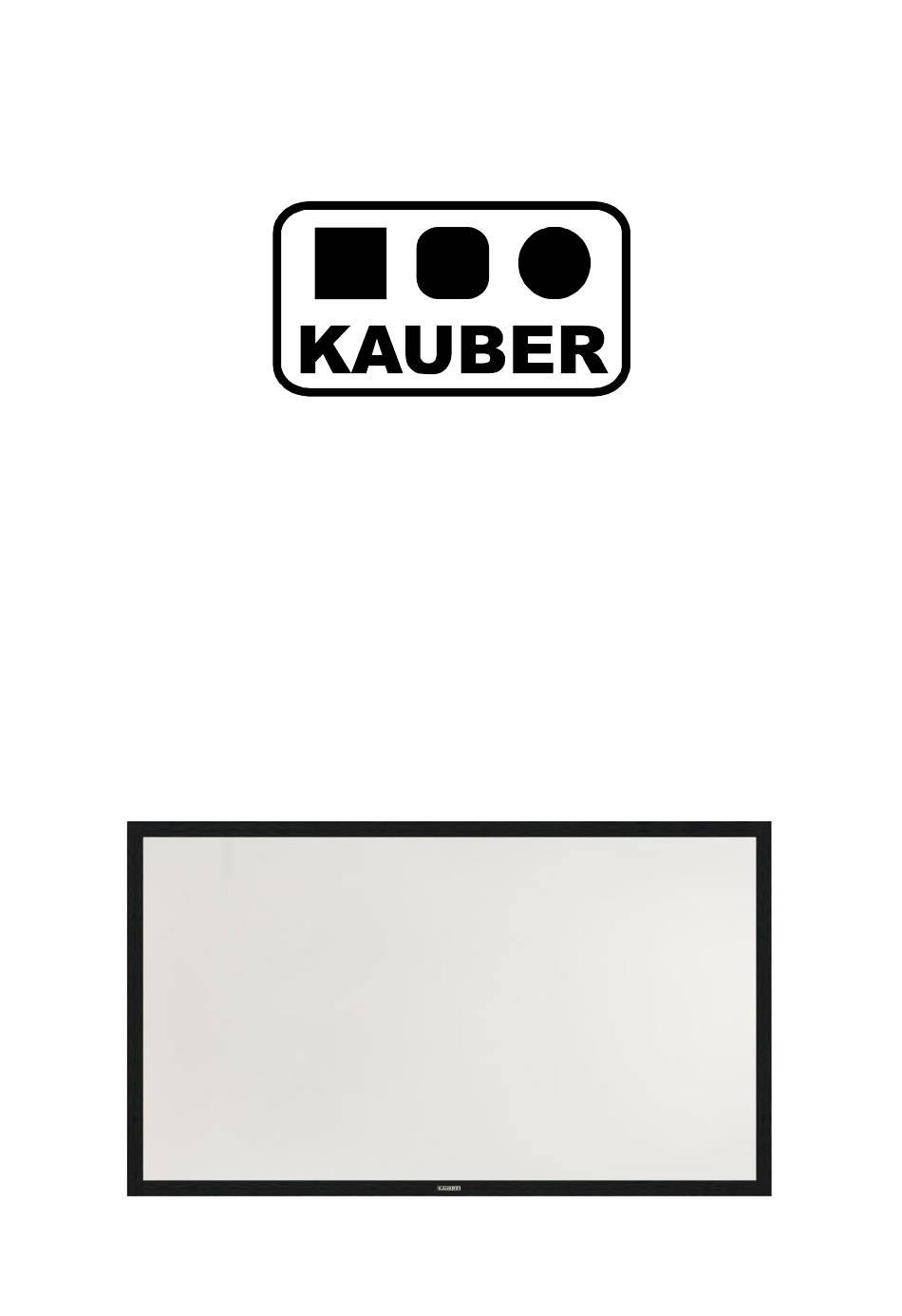

- Page 1 PROJECTION SCREEN INSTALLATION INSTRUCTION Frame Screen FRAME LARGE...
- Page 2 The FRAME LARGE series offers projection screens with a perfectly tensioned projection surface, affixed to an aluminium structure. The series is dedicated to demanding users. IMPORTANT!!! INSTALLATION AND EXPLOITATION NOTES 1. The screen must be installed away from moisture and strong direct sunlight.
- Page 3 *optional accessories for screens of a total width exceeding 5000mm. w w w k a u b e r...
-
Page 4: Screen Assembly
SCREEN ASSEMBLY 1. Place all frame elements on a clean and even surface, if your screen does not contain connectable sections Fig. 1, move directly to point 2 of the instruction. Insert three steel connectors into the screen frame profiles, as shown in Fig. 1/ Fig. 2 and fasten the screws, leaving two holes empty Fig. - Page 5 by tightening the set screws in order to obtain a surface that is as even as possible. Use the set screws on every angle bracket in the threads circled in the picture (Fig. 5) Fig.5 Fig. 6 5. Place the mounting hooks in the frame element (Fig. 7), at distances equal to the notches in the surface (Fig.8), (place and straighten the projection surface, so that the surface welding marks are visible from the top).
- Page 6 Fig.11 6. If your screen required joining sections from Pt. 1 of the instruction, place the cross-beam in the connection location of those sections as shown in Fig. 12. Then place the beam locking element Fig. 13 and fasten the screws Fig.
- Page 7 8. Fasten the included magnet (Fig. 16) to the lower frame section (Fig. 17), at a distance of no more than 20 cm from the frame edge. Fig. 16 Fig.17 9. The set includes two metal plates for wall mounting of the lower frame section, intended to eliminate protrusion of the lower screen corners from the wall ( Fig.
-
Page 8: Technical Data
C = A + 227 mm D = B + 227 mm Thank you for choosing the KAUBER screen We encourage you to buy other products by KAUBER w w w k a u b e r...
