1 Check Contents
When unpacking the camera, do not remove the plastic sheet
Tip
protecting the dome.

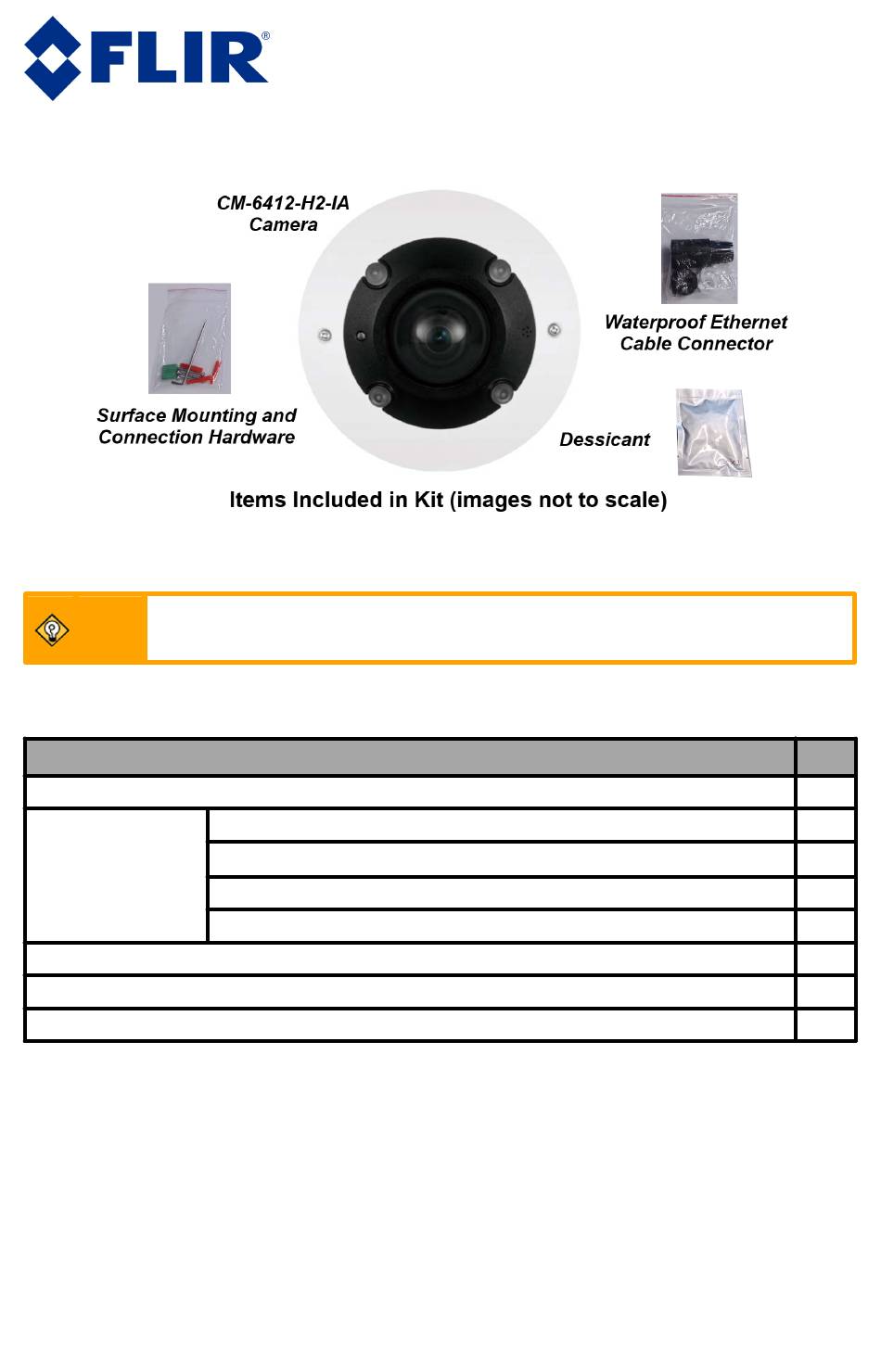

Make sure all of the items below are included in the camera kit:
CM-6412 camera base with cover, mounting bracket, and system cables attached
Bag containing
surface mounting
and connection
hardware
Bag containing waterproof Ethernet cable connector and parts
Bag containing dessicant
Printed quick install guide (this document)
CM-6412 Quick Install Guide Revision 100
Security Torx wrench
Self-tapping screw
Plastic anchor
Four-pin alarm I/O terminal block plug
This document does not contain any export-controlled information.
Quasar™ Hemispheric
Mini-Dome with Edge AI
Analytics Camera
Item
Qty
1
1
3
3
1
1
1
1
