• Refer to the user manual, safety guidelines, and battery labels before use. Users
shall take full responsibility for all operations and usage.
• Use batteries provided by DJI. DO NOT use other batteries.
• DO NOT drop or damage the battery. DO NOT place heavy objects on the battery.
• Always use a clean, dry cloth when cleaning the battery terminals. Otherwise, this
may cause poor contact, resulting in energy loss or failure to charge.
Using the Battery

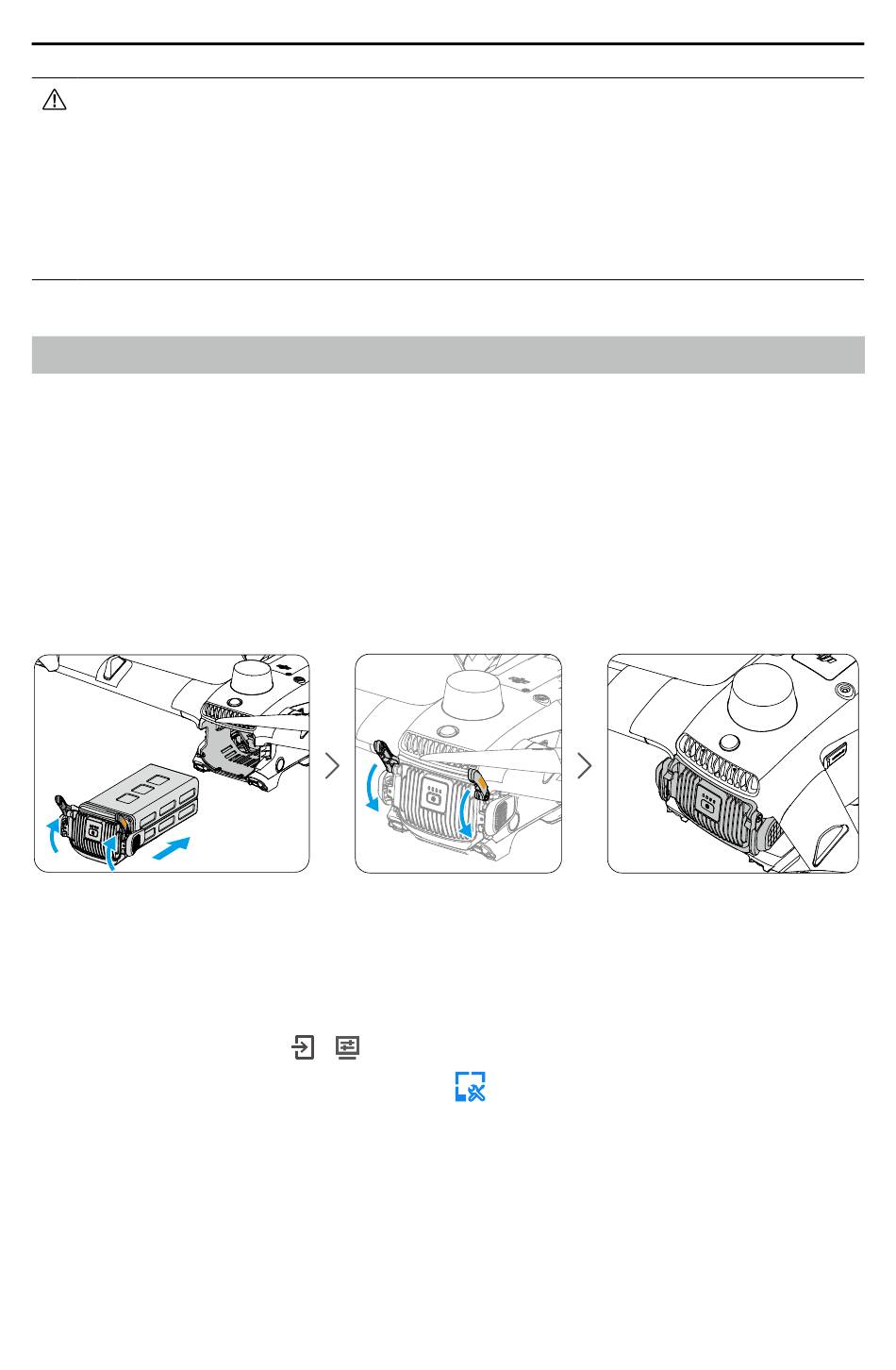

Installing and Removing the Battery
Insert the Intelligent Flight Battery into the battery compartment of the aircraft. Make
sure it is fully inserted with a clicking sound. Toggle the battery locks until the orange
mark completely disappears, which indicates the battery locks are tightened.
To remove the battery, toggle the battery locks to unlock, press the battery buckle and
pull out the battery.
Checking Battery Level
Using DJI FlightHub 2
There are two ways to view the battery information in DJI FlightHub 2.
1. Open Project page, click
2. Open the Devices page, click Dock >
temperature, battery cycles and other information.
>
to view the battery level and battery status.
DJI Dock 2 User Manual
to view the battery level and battery
© 2023 DJI All Rights Reserved
61
