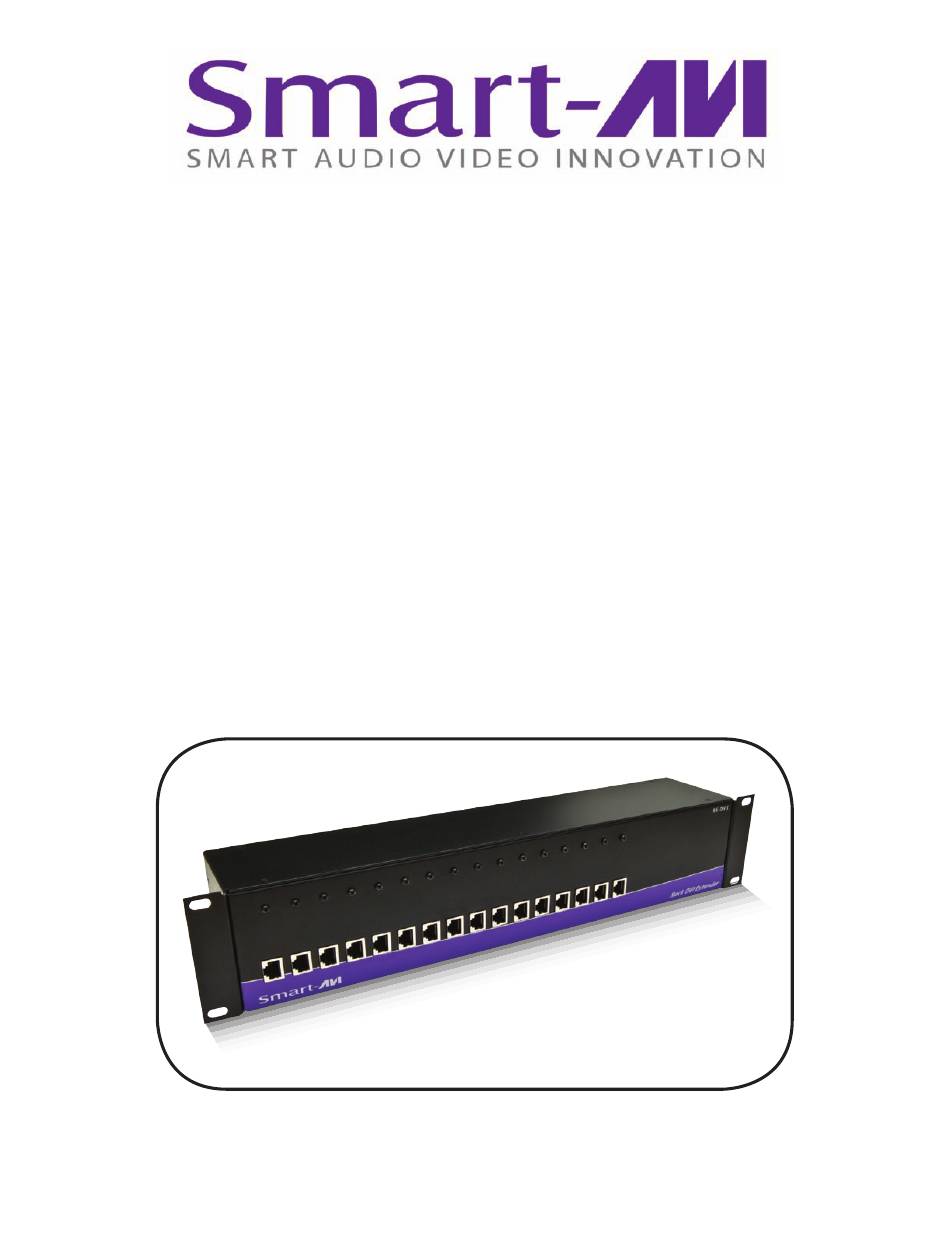

- Page 1 Installation Manual RK-D VX200 16-Port DVI-D Extender up to 275 feet over STP Cable www.smartavi.com...
- Page 2 Introduction The RK-DVX200 is a 16-port video extender system (transmitter and receiver) designed to broadcast high-definition DVI-D signals up to 275 feet using inexpensive STP cabling. It is the perfect solution for extending DVI-D signals to a remote location up to 275 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location.
-
Page 3: What's In The Box
What’s in the Box? PART NO. DESCRIPTION RK-DVX-TX4S DVI RACK 4 ports Transmitter over STP CAT6 RK-DVX-TX8S DVI RACK 8 ports Transmitter over STP CAT6 RK-DVX-TX16S DVI RACK 16 ports Transmitter over STP CAT6 RK-DVX-RX4S DVI RACK 4 ports Receiver over STP CAT6 RK-DVX-RX8S DVI RACK 8 ports Receiver over STP CAT6 RK-DVX-RX16S... - Page 4 Connect up to 16 DVI displays to the DVI-D ports on the front of the DVX200 receivers. DVX200 Receiver Connect the power to the RK-DVX200 transmitter and the DVX200 receivers. Power on the computers and displays. www.smartavi.com...
- Page 5 Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver. DVX200 Transmitter Connect the power to the RK-DVX200 receiver and the DVX200 transmitters. Power on the computers and displays. www.smartavi.com...
- Page 6 Up to 275 ft over STP RK-DVX200 Power off all devices. Connect DVI-D sources (computers) to the DVI-D ports of the RK-DVX200 transmitter. Connect the RK-DVX200 transmitter to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per channel (up to 16).
- Page 7 PIN 17 PIN 24 RK-DVX200-TX Front . t r 5VDC 1.6A Resolutions RK-DVX200-TX Rear Supported by the internal EDID configuration Supported Resolutions Resolution Refresh Rate Technical Specifications Input/Output Signal Technical Specifications PIN 1 PIN 8 Input/Output Signal DVI-D Configuration PIN 1...
- Page 8 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
