SMART-AVI RKT16-HDX100 Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format HDMI
Maximum Pixel Clock 165MHz
Inputs (16) HDMI
Local Outputs (16) HDMI
Remote Outputs (16) RJ-45
Up to 1920 x 1200 @60Hz or
Resolution
480p/720i/720p/1080i/1080p
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Cable Length Up to 20 ft
OTHER
Power Internal 110-240 VAC
Dimensions 17" W x 3.5" H x 3.25" D
Weight 10 lbs
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
16-port HDMI Rack
RKT16-HDX100 1
Mountable Transmitter
Power Cord 1 CCPWR06
Quick Start Guide 1

NOTICE

The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

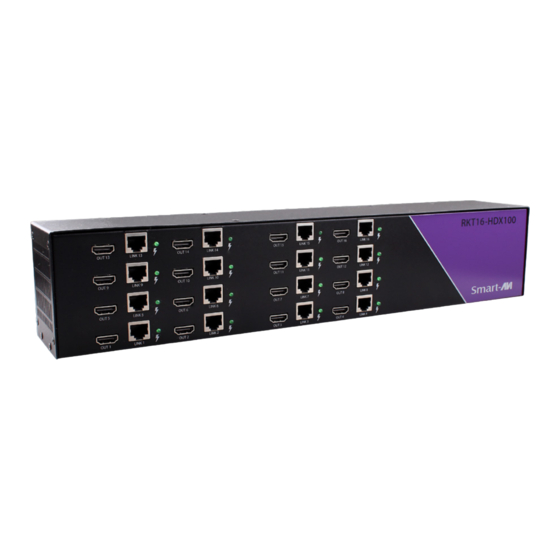

RKT16-HDX100
Rack 16-Port HDMI Extender
CONSOLIDATE SIXTEEN HDMI
EXTENDERS IN ONE RACK UNIT
TO TRANSMITHD SIGNALS
UP TO 150 FEET USING
INEXPENSIVE CAT5E/6 (STP)
Quick Start Guide
