SMART-AVI RK8-HDX-POE Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Format HDMI 1.3 (HDCP Compliant)
Resolutions 800x600, 1024x768 ,
1280x1024, 1366x768,
1920x1200, 480i, 720p, 1080i,
1080p, 4K x 2K @30Hz @24bit
Transmission 70 meters
Distance
Color Depth Deep Color 36/30/24 Bit at 1080p
and 3D
Audio Format Up to PCM 8 channel, Dolby Digital
TrueHD, and DTS-HD Master Audio
IR Range 38kHz, 56kHz
Video Bandwith 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts (TTL)
I/O CONNECTOR (Transmitter)
8 x (HDMI-A) 19PIN Socket
Input
8 x 3.5mm Jack for IR Receiver
8 x RJ45 Jack
Output
I/O CONNECTOR (Receiver)
1 x RJ45 Jack
Input
1 x 3.5mm Jack for IR Receiver
5 x 2.5mm
1 x 3.5mm Jack for IR Emitter
Output
1 x HDMI-A 19PIN Socket
MECHANICAL - Transmitter
Dimensions 17"H x 6"W x 1.7"D
3.26 lbs
Weight
110/220V
Power
ENVIRONMENTAL
Operating Temp. +0 to +40° C (+32° to 104° F)
Humidity 10% to 85% (Non-condensing)
Storage Temp. -20° to +60°C (-4° to +140° F)
SAFETY
Certificate FCC, CE, RoHS
Power Adapter UL, CE, FCC, RoHS
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20180212
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

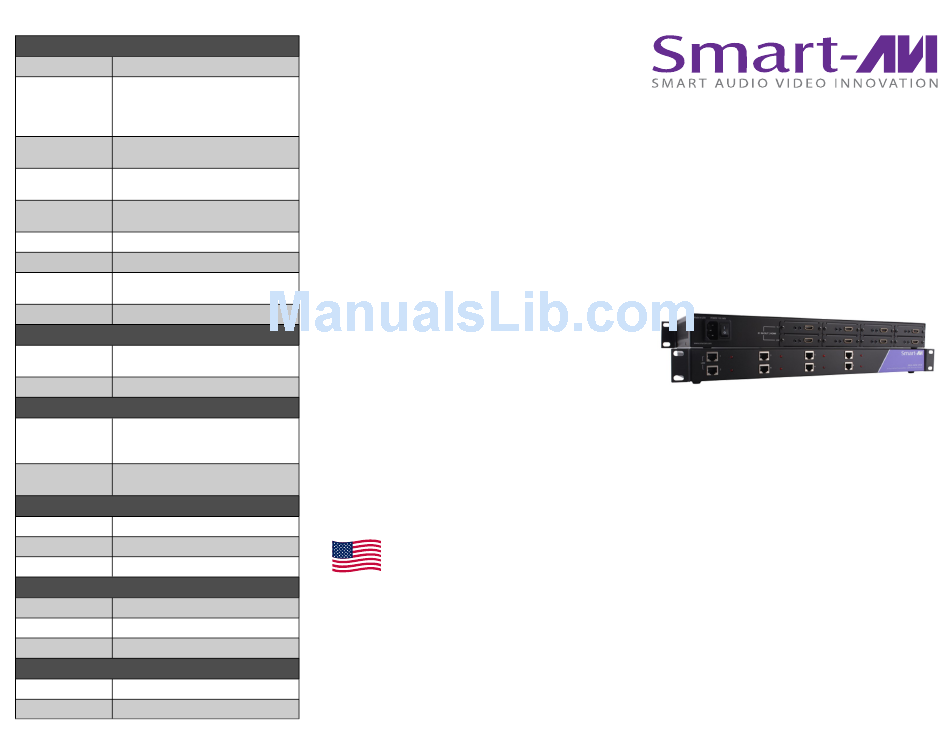

RK8-HDX-POE
8-Port HDMI, IR and Power Extender
Rack Over Cat5e/6
Consolidate up to eight HDMI
extenders in one powered rack unit to
transmit HD signals using Cat5e/6

Quick Start Guide
