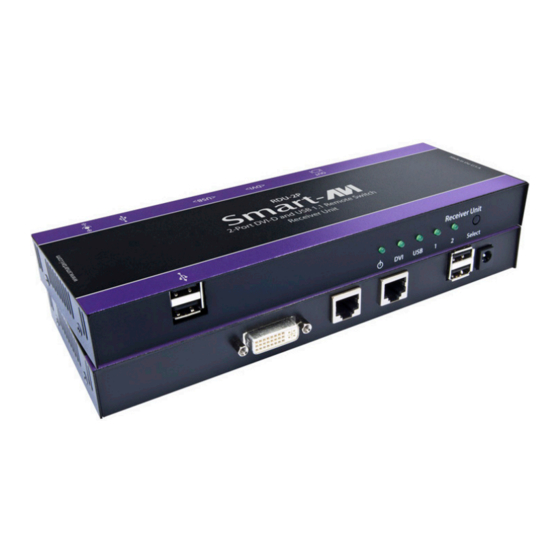

- Page 1 RDU-2p 2-Port DVI-D and USB Extender with Integrated Local/Remote Switch USER MANUAL RDU-2P 2 DVI-D and USB with Integrated Extender Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
- Page 2 OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?________________________________________________________________________ OVERVIEW__________________________________________________________________________________ INSTALLATION_______________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 2-Port DVI-D and USB Extender with Integrated Local/Remote Switch...
- Page 3 Technical Specifications VIDEO Format DVI-D Single Line Maximum Pixel Clock 165 MHz Input Interface (TX) (2) DVI-D 29-pin female Output Interface (RX) (1) DVI-D 29-pin female Resolution Up to 1920 x 1200 @60Hz 5 volts p-p(TTL) Input Equalization Automatic Input Cable Length Up to 20 ft.
- Page 4 What’s in the box? PART NO. Q-TY DESCRIPTION RDU-2P-TX-S 2 DVI-D and USB with Integrated Transmitter RDU-2P-RX-S 2 DVI-D and USB with Integrated Receiver PS5VD4A PS5VD4A Power Supply User Manual RDU-2P-TX RDU-2P-RX 2-Port DVI-D and USB Extender with Integrated Local/Remote Switch...
- Page 5 6. Connect up to 4 USB 1.1 devices to the USB ports on the RDU-2PRX. 7. Connect the power supply to the Power ports on the RDU-2PTX and RDU-2PRX. 8. Power on the RDU-2P using the front switch. 9. Power on the computers, displays and USB 1.1 devices.
- Page 6 Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •...
- Page 7 Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
