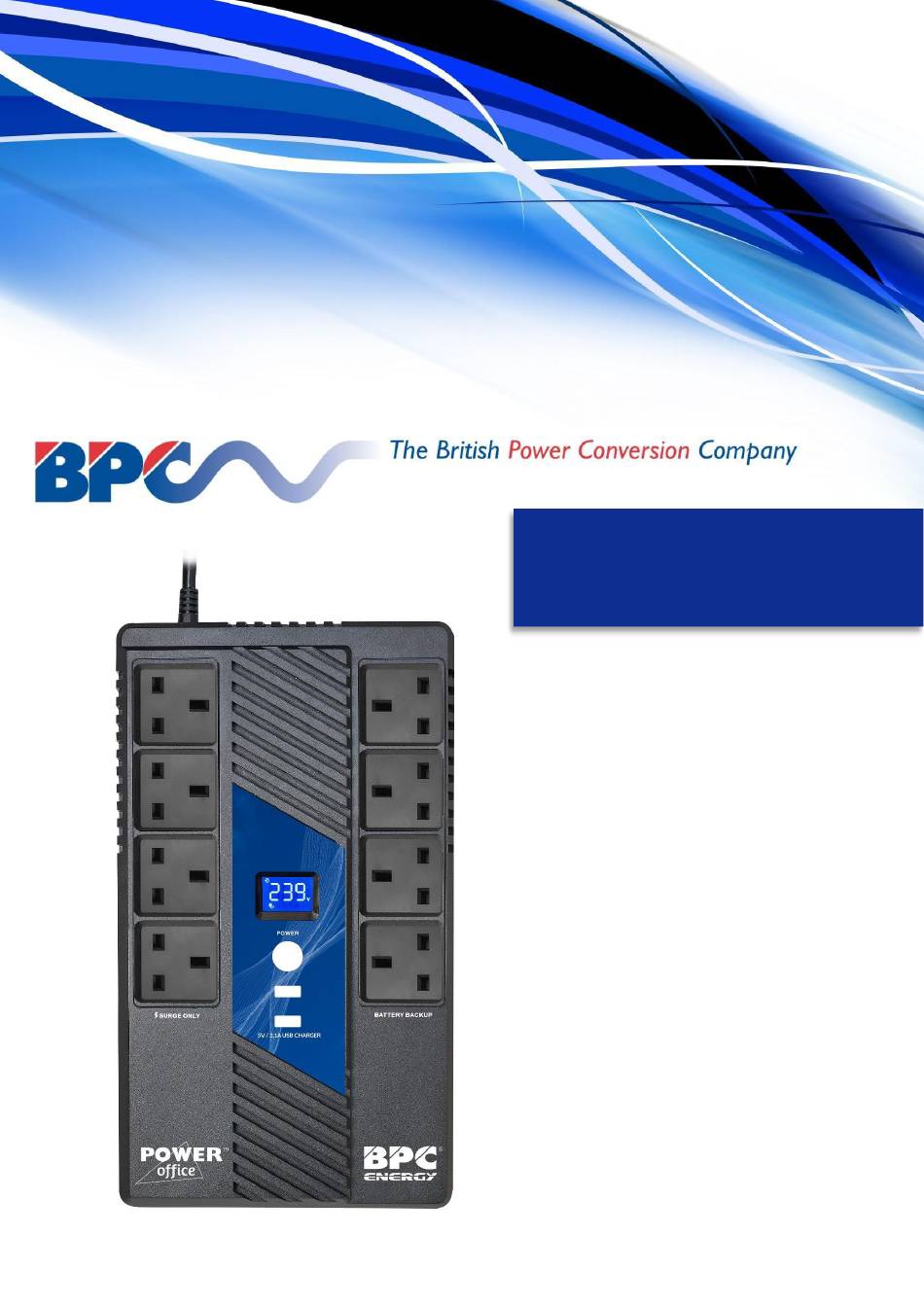

- Page 1 BPC635-01 POWEROFFICE 1000 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1 – SAFETY WARNINGS ....................3 1.1 DESCRIPTION OF SYMBOLS USED IN THIS MANUAL .............. 3 1.2 GENERAL WARNINGS ......................3 1.3 BATTERY SAFETY ........................4 CHAPTER 2 – GENERAL DESCRIPTION ....................5 2.1 INTRODUCTION ........................5 2.2 PANEL VIEW ........................... 5 2.3 DISPLAY PANEL ........................ -
Page 3: Chapter 1 - Safety Warnings
CHAPTER 1 – SAFETY WARNINGS Read the following safety information carefully before you install or operate the BPC PowerOffice 1000 UPS equipment and keep this manual within easy access of the equipment for future reference. 1.1 DESCRIPTION OF SYMBOLS USED IN THIS MANUAL WARNING: The warning symbol is used where there is danger of an electrical shock, equipment damage or personal injury. -
Page 4: Battery Safety
• Remove watches, rings or other metal objects. • Use tools with insulated handles. WARNING: The PowerOffice 1000 system uses recyclable batteries: • The batteries contain lead and pose a hazard to the environment and human health if not disposed of properly. -
Page 5: Chapter 2 - General Description
The advantages of using PowerOffice 1000: Power blackout protection: If the mains power fails, the PowerOffice 1000 continues to supply the critical load using the energy stored in its batteries, keeping the load immune from power disturbances. Increased power quality:... -
Page 6: Display Panel
2.3 DISPLAY PANEL The operation and display panel shown in the below chart, is on the front panel of the UPS. It includes a LCD touch display, indicating the operating status and input/output power information. Figure 2.2 – PO1000 Display 2.3.1 LCD OPERATION UPS Mode Description... - Page 7 Battery Mode Alarm will beep every 10 seconds and LCD information will be displayed in the following order when LCD is touched. 1. Output voltage 2. Input voltage When battery level is low, 3. Load level icon will flash. 4. Battery capacity Overload in When overload occurs, alarm will battery mode...
-
Page 8: Outlet Description
2.4 OUTLET DESCRIPTION There are two sets of available output from the PowerOffice 1000, specified by the description located at the bottom of the sockets. “⚡︎Surge Only” outlet sockets will include only surge protection, where the output will be lost in the event of a major mains failure and will not be supplied by battery, but will otherwise be protected from minor surges. -
Page 9: Dataline Protection
2.5 DATALINE PROTECTION Connect a single modem/phone/fax line into surge-protected “IN” outlet on the back panel of the UPS unit. Connect from “OUT” outlet to the equipment with another modem/fax/phone line cable. 2.6 USB CHARGING PORTS There are two 5V / 2.15A USB A charging ports located on the front of the system. Figure 2.4 USB sockets... -
Page 10: Chapter 3 - Installation
CHAPTER 3 – INSTALLATION 3.1 ACCEPTING DELIVERY The PowerOffice 1000 UPS cabinet is shipped in a purpose-built box that is easy to move by hand or a pallet truck. The accessories are shipped separately. CAUTION: Observe the following precautions when off-loading and moving the cabinet: •... -
Page 11: Installation
3.2 INSTALLATION 3.2.1 ENVIRONMENTAL CONSIDERATIONS A certain amount of pre-planning will help provide a trouble-free installation process. You should consider the following guidelines when planning the installation location and operating environment. 1. The cabinet requires sufficient front and rear clearance to enable cooling airflow, as described below. -
Page 12: Internal Battery Connection
3.2.3 INTERNAL BATTERY CONNECTION NOTE: All UPS ARE SUPPLIED WITH INTERNAL BATTERY CONNECTED To replace the internal battery: 1. Ensure UPS system is switched OFF and disconnected from mains supply. 2. Remove the rear cover via the single central screw. (see Fig.3.1) 3. -
Page 13: Chapter 4 - Operation Instructions
CHAPTER 4 – OPERATION INSTRUCTIONS 4.1 START UP 4.1.1 START UP UPS FROM MAINS 1. Turn on the input mains supply. 2. Press the silver POWER button to turn on the inverter. It will show all details for 4 seconds: Figure 4.1 Start-up display 3. -
Page 14: Chapter 5 - Trouble Shooting
The PowerOffice 1000 will generate an audible warning if a fault or abnormal operating condition is detected and will indicate the source of the triggered alarm on the LCD panel. There are no user-serviceable parts in the PowerOffice 1000, so the degree of rectification that can be carried out by the operator is minimal. -
Page 15: Troubleshooting Procedures
The USB port can be used to connect the UPS system to a PC. Connect to the PC using a USB Cable (Not Provided). Viewpower software can be then downloaded to enable full monitoring and control of the PC system. Monitoring Software “ViewPower HTML” is available for download from BPC Website (UPS Software (bpc-ups.com) -
Page 16: Chapter 7 - Technical Specification
CHAPTER 7 – TECHNICAL SPECIFICATION Power Rating VA / Watts 1000VA / 600W INPUT Nominal Voltage Range 170V - 280V OUTPUT Output Operation Voltage 230V ±10% (Battery Mode) Output Frequency 50 ± 1Hz (Battery Mode) Transfer Time Typical 6ms, 10ms max Waveform Simulated Sinewave EFFICIENCY... - Page 17 Mains Surge Protection 310 Joules Data Line Protection Phone/ Fax/ Modem/ DSL/ Network Data Line Protection 1000m ensures complete protection of your equipment from surges Diagnostic Testing Automatic diagnostic testing: automatic periodic battery self-testing to provide an early battery replacement indication Control Panel LCD touchscreen status display with Online, On battery, Replace battery and Overload indicators...
