U.S. Products MOCCASIN-2022 Manual

Hide thumbs

Advertisement

Table of Contents

MOCCASIN - 2022
CLICK TO ORDER PARTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOCCASIN-2022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Products MOCCASIN-2022

Summary of Contents for U.S. Products MOCCASIN-2022

  • Page 1 MOCCASIN - 2022 CLICK TO ORDER PARTS...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING OR SERVICING MACHINE Failure to Observe These Instructions Can Cause Personal Injury DANGER! to Machine Operator, By-standers or Possible Machine Damage. • When using an electrical appliance, basic precautions should always be followed, including the following: •...

  • Page 3: Grounding Instructions

    GROUNDING INSTRUCTIONS This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current in order to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 4 OPERATION, USE & ACCESSORIES CAUTION: It is always advisable to receive instructions from a person previously trained, before attempting to operate the Moccasin - 2022. However, if you are familiar with carpet cleaning, you should be able to operate this machine. Please read all of these illustrated operating instructions. NOTE: Always wear tennis shoes.

  • Page 5: Filling The Solution Tank

    The recovery tank hose and the solution tank hose are shown in the drain position in Figure 3. Figure 4 illustrates the vac hose removed from the vac shoe for cleaning. The raising and lowering levers for the vac shoe and the brush head are shown in Figure 5. FIGURE 5 FIGURE 4 FIGURE 3...

  • Page 6: Operation

    Before attempting to operate the machine, it may be necessary to check the spray jets and see if they are clean. If the machine has been used previously, cleaning solution may have settled into the spray jets and dried there, clogging them. See Service & Maintenance for cleaning instructions. To make the most efficient use of the Moccasin - 2022, and to get the cleanest carpet, always vacuum the carpet, with a vacuum cleaner to remove excess dirt before scrubbing and extracting.
  • Page 7 AFTER USE AND BEFORE STORAGE Both the solution and recovery tanks should be drained after each use. In addition, both tanks should be rinsed with clear water. This is particularly important for the solution tank. If it is possible, turn the machine ON and operate it with clear water in the solution tank to completely clean the spray jets (running for 30 seconds should be sufficient).

  • Page 8: Specifications

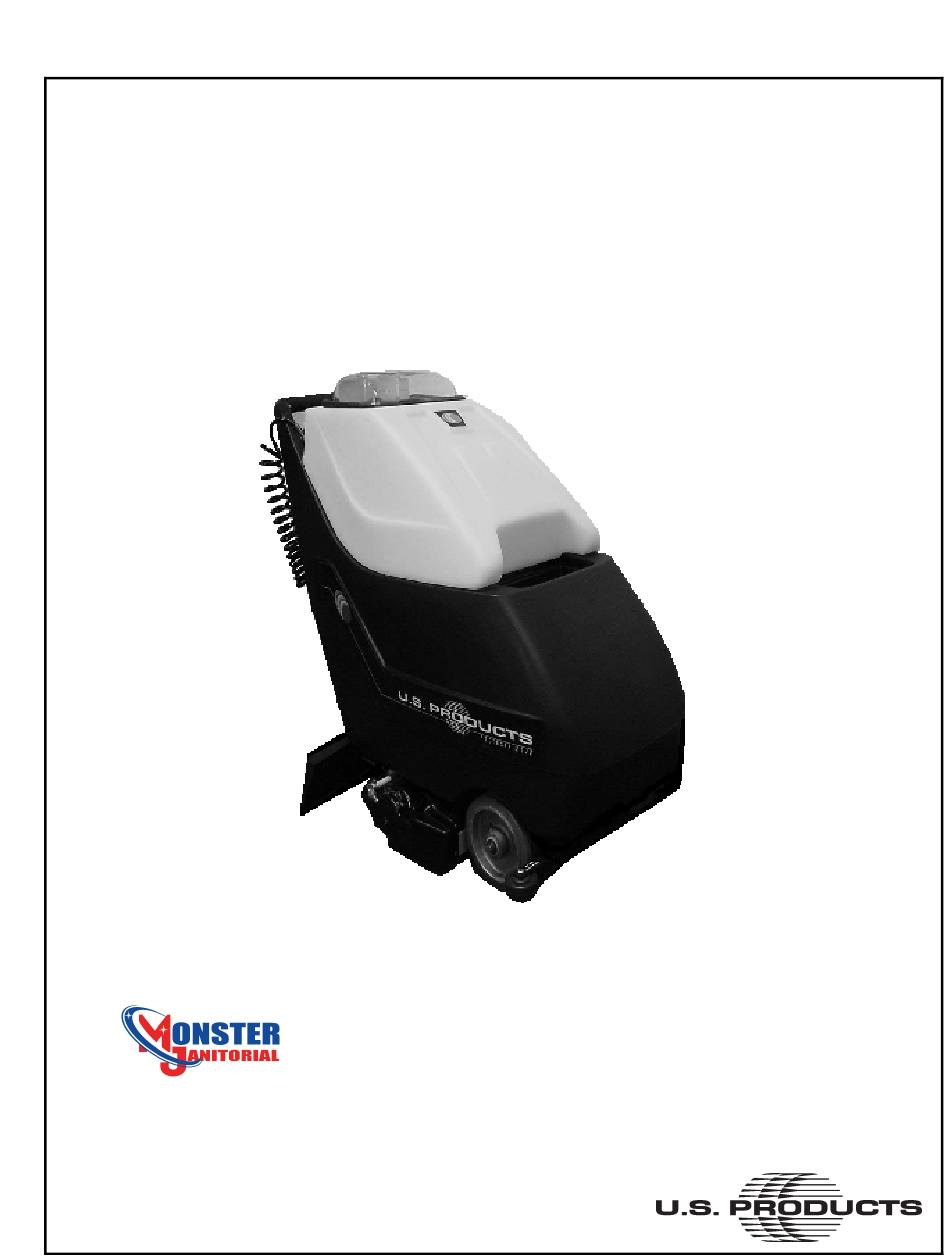

    SPECIFICATIONS General Machine Description The Moccasin - 2022 is a self propelled carpet extraction machine. The Moccasin - 2022 is available in a 115 volt or 240 volt configuration to power the drive, vacuum, and brush motor, and the solution pump. OPERATOR CONTROLS All operator controls are positioned for ease of use, and include drawing icons for simplified user training.
  • Page 9 function by testing for continuity when in the ON position. SOLUTION SPRAY JET BAR - ASSEMBLY TESTING & SERVICE In order to clean the spray jets, you must revolve the spray jet bar from the brush housing. This is done by removing the spray jet bar to which the spray jet is attached.
  • Page 10 WARNING Refer to the wiring diagram for proper wiring of the replacement motor and recitifier. Incorrect wiring can cause personal injury and machine damage. SOLUTION FILTER Clean solution must pass through an in-line mesh filter prior to entering the solution pump. This filter is mounted externally under the right / rear side of the solution tank (body).
  • Page 11 DRIVE MOTOR / DRIVE CHAIN ADJUSTMENT AT THE FRONT OF THE MACHINE The propulsion drive motor is mounted at the front of the chassis, and secured by four hex bolts. Access to this motor, and to the drive chain for chain tension adjustment and lubrication is from underneath the machine (at the front of the machine).

  • Page 12: Treatment Methods

    COMMON STAINS AND CLEANING TREATMENTS TREATMENT METHODS First: Remove excess material by blotting to absorb liquids, or by scraping with a dull edged (butter knife) if the material is a solid. Second: Clean the remaining stain as directed by the chart below. Always follow the direction on the container.

  • Page 13: Wiring Diagram

    WIRING DIAGRAM...
  • Page 14 HOLD DOWN BRACKET 7319 1/4 EXTERNAL STAR LOCK WASHER 7322 1/4-20 X 5/8 ROUND HEAD PHILLIPS MACHINE SCREW 7272 U.S. PRODUCTS LOGO LABEL - LABEL SET 7038 DRAIN VALVE GASKET 7066 ADAPTER - 1 1/2 FSL X 1 1/2 MPT 7238...
  • Page 15 SOLUTION / RECOVERY TANKS...
  • Page 16 ITEM NO. USP NO. PART DESCRIPTION QTY. 7347 MASTER POWER SWITCH, - 120 AND 240 VOLT 7075 ROCKER SWITCH - SPRAY VACUUM BRUSH 7282 KNOB WITH SET SCREW 7272 SWITCH CONTROL PANEL LABEL - LABEL SET 7253 LIMIT SWITCH, DEADMAN LEVER 7286 6-32 X 1 ROUND HEAD PHILLIPS MACHINE SCREW 7227...

  • Page 17: Control Panel

    CONTROL PANEL 6-32 HEX NUT WITH STAR LOCK WASHER 7338 3/8 SPLIT LOCK WASHER 7342 3/8-16 X 1 HEX BOLT 7294 10-24 HEX NUT WITH STAR LOCK WASHER 7002 STRAIN RELIEF CORD CLAMP 7005 STRAIN RELIEF NUT, PLASTIC 7278 #6 FLAT WASHER 7318 5/16 I.D.
  • Page 18 ITEM NO USP NO. PART DESCRIPTION QTY. 7181 BRUSH COVER, LONG 7272 SPRAY BAR LABEL - LABEL SET 7245 BRUSH COVER, SHORT 7303 10-24 X 3/8 TRUSS HEAD PHILLIPS MACHINE SCREW 7314 10 X 1/2 PAN HEAD PHILLIPS SHEET METAL SCREW 7304 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW 7007...
  • Page 19 BRUSH HOUSING...
  • Page 20 ITEM NO. USP NO. PART DESCRIPTION QTY. 7294 10-24 HEX NUT WITH STAR LOCK WASHER 7311 10-32 X 1/2 PHILLIPS ROUND HEAD SCREW 7291 #10 SPLIT LOCK WASHER 7295 7/32 I.D. X 1/2 O.D. X .032/.065 THICK SAE FLAT WASHER (#10) 7306 10-24 X 3/8 PAN HEAD PHILLIPS THREAD CUTTING SCREW 7291...
  • Page 21 CHASSIS 7371 GEAR DRIVE MOTOR 120 VOLT 7212 GEAR DRIVE MOTOR 240 VOLT 7053 COOLING DUCT, VAC MOTOR 7184 ADJUSTING WHEEL TENSION SPRING 7052 VAC MOTOR SPLASH COVER 7071 VAC MOTOR GASKET, UPPER 7070 VAC MOTOR ASSEMBLY, 120 VOLT 7092 VAC MOTOR ASSEMBLY, 240 VOLT 7049 VAC MOTOR GASKET, LOWER...
  • Page 22 ITEM NO. USP NO. PART DESCRIPTION QTY. 7026 90° HOSE BARB 3/8 X 1/4 NPTM 7262 GROUND WIRE, SOLENOID VALVE 7287 #8 INTERNAL STAR LOCK WASHER 7289 8-32 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW 7040 1/4 HEX NIPPLE, BRASS 7043 1/4 NPT STREET “T”...
  • Page 23 VAC SHOE...
  • Page 24 EXTRACTOR One Year Limited Warranty In the event of a claim under the limited warranty below, the exclusive remedy is for the manufacturer to repair or replace the product. U. S. Products warrants to the original purchaser/ user that this product is free from defects in workmanship and materials under normal use and service for a period of one (1) year from date of purchase.
