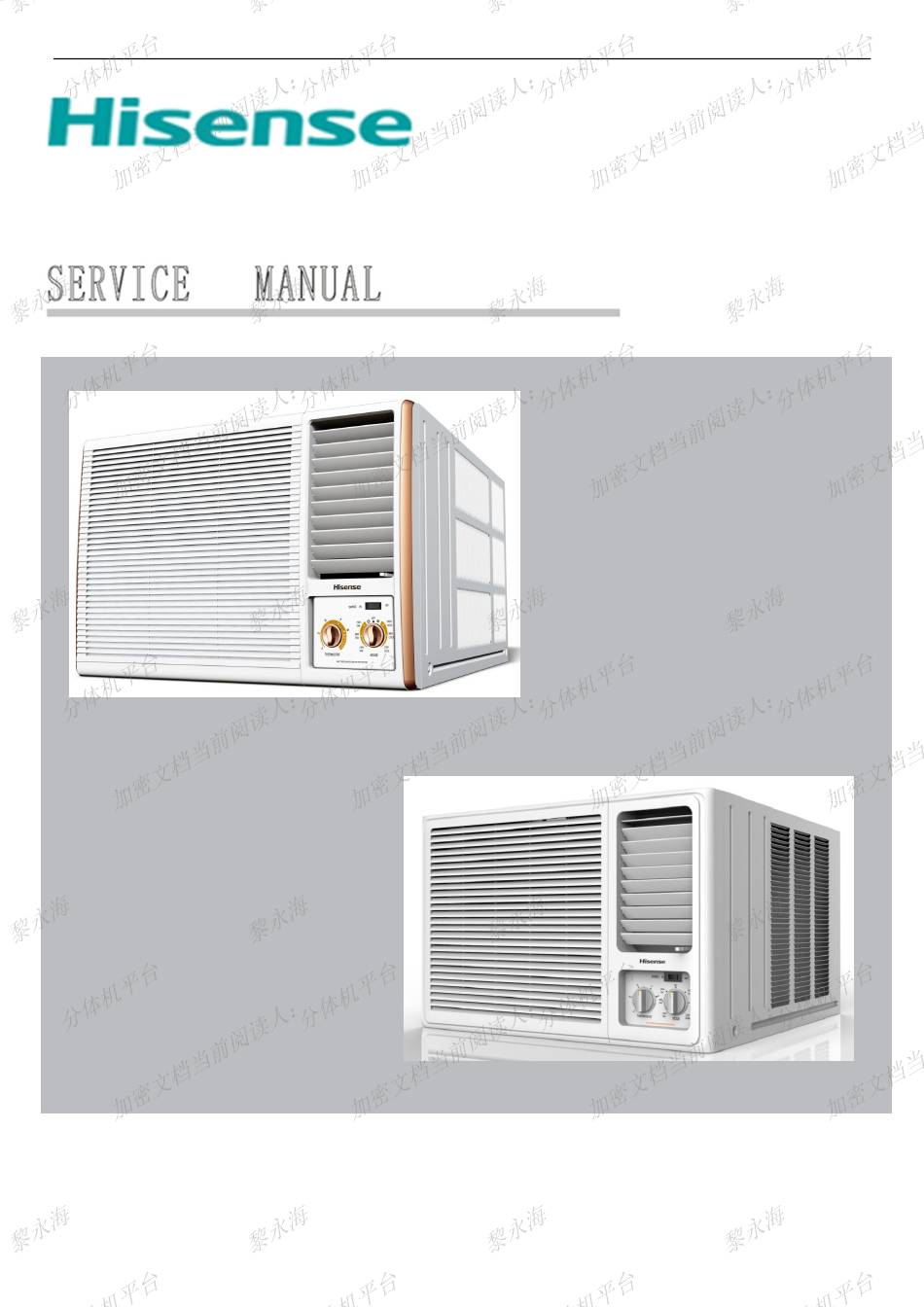

  • Page 1 Version: 1.4 Window Air Conditioner Hisense Corporation...
  • Page 2 MODEL: AW-08CW1RVFUE20 AW-08DR1RVFU21 AW-12CW1RWFUE20 AW-08DR1RVFU20 AW-10CW1RVFUE20 AW-08CW1RVFUE21 AW-12DR3RYFU20 AW-18CW3RXFUE20 AW-12CW1RWFUE21 AW-14CW1RWFUE20 AW-08CW1RVGUE20 AW-18DR3RXFU20 AW-24CW3RDFUE20 AW-24DR3RDFU20...
  • Page 3: Table Of Contents

    Contents 1. Safety Considerations ................... 4 2. Product Specifications................... 6 3. Product Picture and Drawing ................14 3-1. Product Pictures ..................14 3-2. Product dimensions ..................16 4. Installation Instruction ..................17 4-1. Installation instruction ..................17 4-2. Electric Wiring Diagram ................19 4-3.
  • Page 4: Safety Considerations

    1. Safety Considerations IMPORTANT! Please Read Before Starting This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of your job to install or service the system, so it operates safely and efficiently.
  • Page 5 fire hazard. When Transporting Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioner can cut your fingers.
  • Page 6: Product Specifications

    2. Product Specifications AW-08DR1RVFU21 Model AW-10CW1RVFUE20 AW-08DR1RVFU20 Panel Power supply nameplate V-ph-Hz 115/1/60 115/1/60 Electric Input nameplate parameter Input current nameplate Energy Class —— —— Cooling CEER BTU/W 10.90 11.40 Efficiency Heating Energy Class —— —— (Average Season) —— —— Rated 2345 2931...
  • Page 7 On/Off Timer (24 Hour) Energy Saver Auto Fan Dehumidify Function Sleep Mode Infrared Remote Control Mechanical — — Control Panel — — Design Fan Speeds - — — Cool/Fan/Heat Mechanical Thermostat — — Control Panel — — Design Filter Type dustproof dustproof Filter Access...
  • Page 8 Model AW-12CW1RWFUE20 AW-12DR3RYFU20 Panel Power supply nameplate V-ph-Hz 115/1/60 208/230/60 电 源 Electric Input 铭 牌 功 率 nameplate 1040 1020/1050 parameter Input current 铭 牌 电 流 nameplate 5.1/4.7 Energy Class E-star —— 能 效 等 级 Cooling 能 效 值 CEER BTU/W 12.0...
  • Page 9 Digital 时 间 温 度 显 Time/Temp 示 Display COOL , D RY 、 F AN 、 E NERGY COOL , D RY 、 F AN 、 E NERGY Mode 模 式 SAVER SAVER Fan Speeds - 风 扇 转 速 Cool/Fan On/Off Timer 定...
  • Page 10 Model AW-08CW1RVFUE20 AW-08CW1RVFUE21 Panel Power supply nameplate V-ph-Hz 115/1/60 115/1/60 Electric Input nameplate parameter Input current nameplate Energy —— —— Class Cooling CEER BTU/W 11.40 11.40 Efficiency Energy —— —— Heating Class (Average Season) —— —— Rated 2345 2345 Capacity(T1)
  • Page 11 Model AW-12CW1RWFUE21 AW-14CW1RWFUE20 Panel Power supply nameplate V-ph-Hz 115/1/60 115/1/60 Electric parameter Input nameplate 1040 1235 Input current nameplate 11.2 Energy Class E-star Energy-Star Cooling CEER BTU/W 12.00 11.30 Efficiency Heating Energy Class —— —— (Average Season) —— —— Rated 3517 4103 Capacity(T1)
  • Page 12 Model AW-24CW3RDFUE20 AW-18CW3RXFUE20 Panel Power supply nameplate V-ph-Hz 230/208/1/60 230/208/1/60 Electric parameter Input nameplate —— —— Input current nameplate 11.4/12.3 7.2/7.9 Energy Class E-Star E-Star Cooling CEER BTU/W 9.80 11.3/11.3 Efficiency Heating Energy Class —— —— (Average Season) —— —— Rated ——...
  • Page 13 Model AW-18DR3RXFU20 AW-24DR3RDFU20 Panel Power supply nameplate V-ph-Hz 230/208/1/60 230/208/1/60 Electric parameter Input nameplate —— —— Input current nameplate 7.2/7.9 11.2/12.2 Energy Class Cooling CEER BTU/W 11.3/11.3 9.40 Efficiency Heating Energy Class —— —— (Average Season) —— —— Rated —— ——...
  • Page 14: Product Picture And Drawing

    AW-08CW1RVGUE20 Model Panel Power supply nameplate V-ph-Hz 115/1/60 115/1/60 Electric Input nameplate parameter Input current nameplate Energy —— —— Class Cooling CEER BTU/W 11.40 11.40 Efficiency Energy —— —— Heating Class (Average Season) ● —— —— Rated 2345 2345 Capacity(T1) Rated Btu/h 8000...
  • Page 15 View Front Panel View Front Panel View Front Panel View Front Panel...
  • Page 16: Product Dimensions

    H ( m m ) H ( m m ) D ( m m ) D ( m m ) D ( m m ) D ( m m ) ● AW-12DR3RYFU10 AW-08CW1RVFUE20 AW-08DR1RVFU20 ● AW-12CW1RWFUE20 AW-08CW1RVFUE21 AW-08DR1RVFU21 AW-10CW1RVFUE20 AW-12DR3RYFU20...
  • Page 17: Installation Instruction

    4. Installation Instruction 4-1. Installation instruction Installation accessories Note: All above accessories are prepared or purchased by user Installation requirements L eave a space more than 100 cm at the rear of the appliance and ensure the outdoor air intake not 、...
  • Page 18 Installation steps 、 T est the appliance by plugging the power supply cord in a correct outlet of power source before installation. 、 A clearance of 20 mm is advisable between the appliance cabinet and the wall. Fix the indoor air intake panel with the cabinet by employing two screws which packed in the packing bag as shown in Fig.5.
  • Page 19: Electric Wiring Diagram

    4-2. Electric Wiring Diagram Model Code A W - 0 8 C W 1 R V F U E 2 0 2 1 4 2 7 1 9 A W - 0 8 D R 1 R V F U 2 0 2 1 4 2 7 1 9 - 1 2 C W 1 R W F U E 2 0 2 1 4 2 7 1 9...
  • Page 20: Refrigerant Flow System

    4-3. Refrigerant Flow System 4-4. Test Running ● △ △ △ △ Check after Installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. ● It may cause insufficient Have you done the refrigerant leakage test? cooling(heating)capacity Is heat insulation sufficient? It may cause condensation and dripping.
  • Page 21: Function Operation

    △ △ △ △ Operation Test 1. Before Operation Test (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected correctly and securely. (3) Cut-off valves of the connection pipes should be opened. (4) All the impurities such as scraps and thrums must be cleared from the unit.
