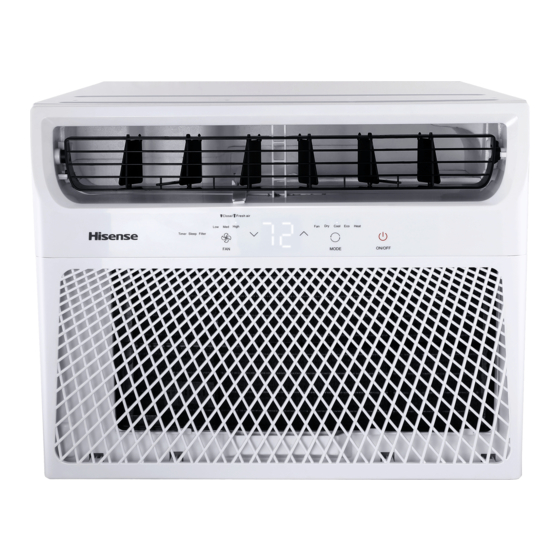

- Page 1 Model: AW1221DR3W AW1521CW1W AW1821CW3W AW2521CW3W...
-
Page 2: Table Of Contents
TABLE OF CONTENTS AIR CONDITIONER SAFETY INSTALLATION REQUIREMENTS Electrical Requirements Tools and Parts Unpack the Air Conditioner Location Requirements INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation Window Air Conditioner Installation Complete Installation AIR CONDITIONER USE Starting Your Air Conditioner Using the Remote Control Changing Air Direction Exhaust Air Vent Normal Sounds... -
Page 3: Air Conditioner Safety
AIR CONDITIONER SAFETY You safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol . This symbol alerts you to potential hazards that can kill or hurt you and others . -
Page 4: Installation Requirements
INSTALLATION REQUIREMENTS Electrical Requirements WARNING Wiring requirement 208/230 V (187.2 V min. to 253 V max.) 18 A time-delay fuse or circuit breaker for 12K cooling and heating 115 V (103.5 V min. to 126.5 V max.) 15 A time-delay fuse or circuit breaker for Electrical Shock Hazard 15K cooling only Plug into a grounded 3 prong outlet. -
Page 5: Tools And Parts
Tools and Parts Gather the required tools and parts before starting installation. Parts supplied Read and follow the instructions provided with any tools listed Check that all parts are included in parts package. here. T ools needed Phillips screwdriver Tape measure ■... -
Page 6: Location Requirements
Location Requirements Window Installation Before You Begin Read these instructions completely and carefully. Window opening measurements: ■ IMPORTANT: Save these instructions for local inspector’s use. These instructions are for a standard double-hung ■ IMPORTANT: Observe all governing codes and ordinances. window. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation Remove Air Conditioner from Cabinet NOTE: Remove any packaging material from cabinet exterior. 1、Locate the two Front Panel screws and remove. 2、Push metal cabinet side inward to release plastic tabs These screws will be needed to re-install the Front on each side of Front Panel. -
Page 8: Window Air Conditioner Installation
Window Air Conditioner Installation Assemble Window Filler Panels 1. Place cabinet on floor, a bench, or a table. 2. Slide "I" section at end of window filler panel into side retainer on each side of the cabinet. 3. On each side of cabinet, insert top and bottom legs of window filler panel frame into channel in the top and bottom angle rails. - Page 9 Install Support Bracket 1. Hold each support bracket flush against outside 2. Attach sill angle brackets to support brackets at of sill and tight to bottom of cabinet. Mark brackets marked positions with flat head bolts and nuts. at top level of sill. Mark cabinet bottom at distance Hand tighten only at this point.
- Page 10 Attach Window Filler Panels to Window Frame Attach the EVA Foam 1.Pull the left-hand curtain out until it fits into the window channel. 1. Put one EVA Foam on the Curtain housing. 2.Use a 1 /8"(3mm) drill bit to drill a starter hole through the In order to minimize air leaks and ensure optimal hole in the top rail.
-
Page 11: Complete Installation
Install Air Conditioner into Cabinet and Install Front Panel to Unit Lift air conditioner and carefully slide into cabinet. 2 CAUTION: Do not push on controls OR finned coils. 3 Be sure air conditioner is firmly seated towards rear of cabinet. Reconnect electronics plug if present. -
Page 12: Starting Your Air Conditioner
Starting Your Air Conditioner High High Cool Cool Heat ■ Timer Sleep Filter Timer Sleep Filter ON/OFF CONNECT CONNECT MODE MODE ON/OFF T emperature ∧ 1. Press the power button to turn on the air conditioner. Press the plus UP button to raise the temperature. - Page 13 Timer Sleep Filt r e 1. The LED light on control panel for Timer、Sleep、Filter. Timer Sleep Filter Timer Sleep Filter The function introduction See “using the remote control”. WIFI WIFI control is available for connected models with this logo on control panel. CONNECT CONNECT 1.
-
Page 14: Using The Remote Control
Using the Remote Control NOTE: Remote control may differ in appearance. T emperature ∧ Press the plus UP button to raise the temperature. Each ■ ∧ UP ( time you press or hold the plus button, the temperature will go up 1°F (1°C) until it reaches 86°F (30°C). ∨... -
Page 15: Changing Air Direction
Timer Filter 1. When the Filter indicator light is lit, remove, clean To set timer for a 1 – 24 hour delay on – off operation: and replace the air filter. See “Cleaning the Air Filter”. 1. Press TIMER on remote control, LED display on the air 2. -
Page 16: Air Conditioner Care
AIR CONDITIONER CARE Y our new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember the cost of this service call is your responsibility. -
Page 17: Troubleshooting
LESHOOTING Before calling for service try the sugge stions below to see whether you can solve your problem without outside help. Air conditioner will not operate Air conditioner power supply cord trips Reset button pops out) Disturbances in your electrical current can trip (Reset ■... - Page 18 The temperature of the room you are trying to cool is ■ Water drips from cabinet into your house extremely hot. Allow extra time for the air conditioner to cool off a very hot room. The air conditioner is not properly leveled. The air ■...
- Page 19 Version NO:2166536-01...
