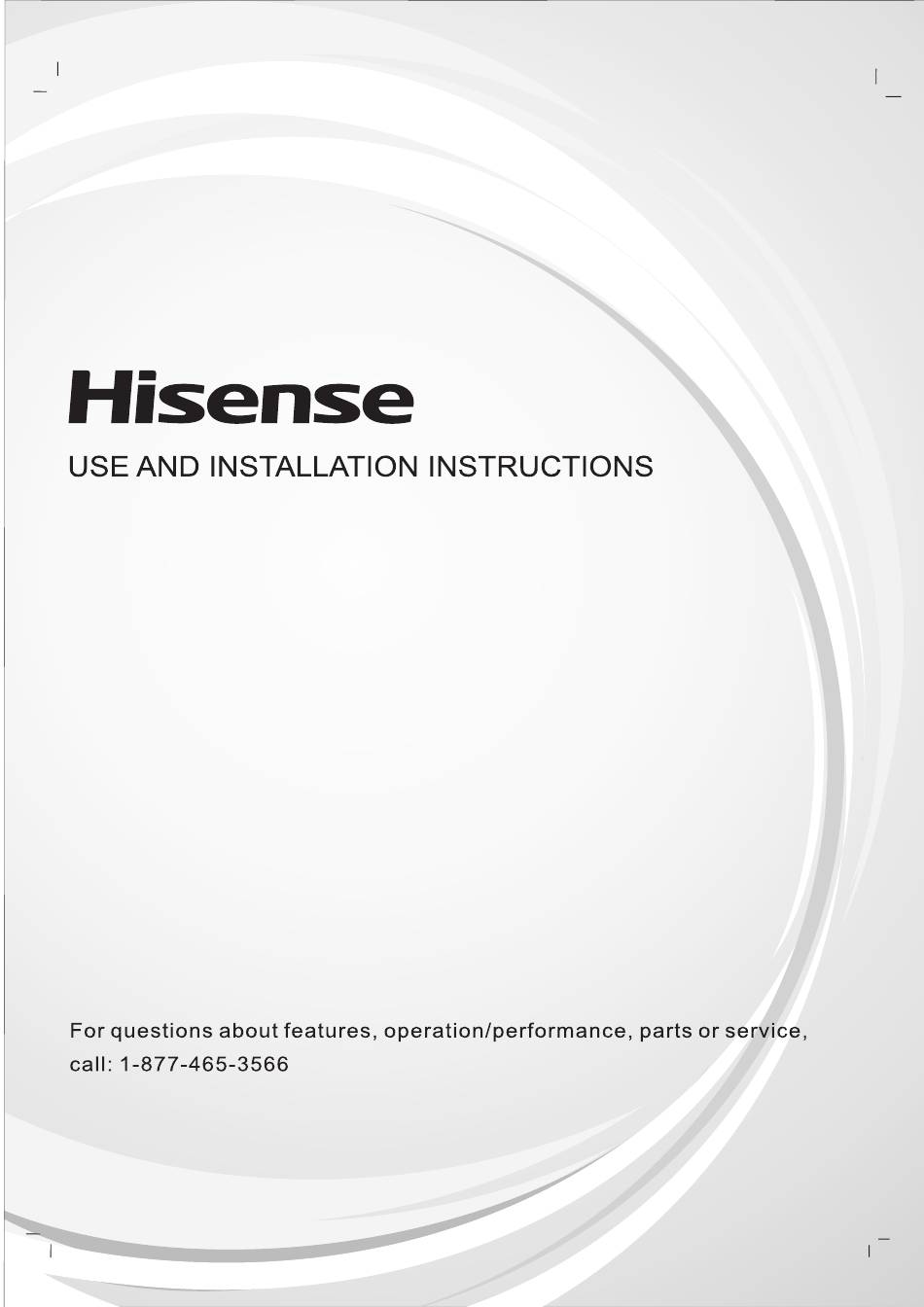

- Page 1 Model: AW0621CR1W AW0821CW1W AW1021CW1W AW1221CW1W...
-
Page 2: Table Of Contents
TABLE OF CONTENTS AIR CONDITIONER SAFETY INSTALLATION REQUIREMENTS Electrical Requirements Tools and Parts Unpack the Air Conditioner Location Requirements INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation Window Air Conditioner Installation Complete Installation AIR CONDITIONER USE Starting Your Air Conditioner Using the Remote Control Changing Air Direction Exhaust Air Vent Normal Sounds... -
Page 3: Air Conditioner Safety
AIR CONDITIONER SAFETY You safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol . This symbol alerts you to potential hazards that can kill or hurt you and others . -
Page 4: Installation Requirements
INSTALLATION REQUIREMENTS Electrical Requirements WARNING Wiring requirement 115 V (103.5 min. to 126.5 max.) 10 A time-delay fuse or circuit breaker for 6K cooling only 13 A time-delay fuse or circuit breaker for 8 K cooling Electrical Shock Hazard only Plug into a grounded 3 prong outlet. -
Page 5: Tools And Parts
Tools and Parts Gather the required tools and parts before starting installation. Parts supplied Read and follow the instructions provided with any tools listed Check that all parts are included in parts package. here. T ools needed Phillips screwdriver Tape measure ■... -
Page 6: Location Requirements
Location Requirements Window Installation Before You Begin Read these instructions completely and carefully. Window opening measurements: ■ IMPORTANT: Save these instructions for local inspector’s use. These instructions are for a standard double hung ■ IMPORTANT: Observe all governing codes and ordinances. window You will need to modify them for other types of windows . -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation 2. Insert top and then bottom of right-hand curtain housing in Attach Top Rail top and bottom curtain rails on air conditioner. 1. Locate the bag of screws provided. Back View 2. Place the top rail on top of the air conditioner cabinet, lining up the 4 holes in the top rail with the 4 holes on top of the air conditioner cabinet. - Page 8 Window Air Conditioner Installation 1. Center air conditioner in window. Lower the window sash behind the top rail to hold cabinet in place. Attach Side Curtains to Window Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air 1.
-
Page 9: Complete Installation
Remove the backing from the EVA Foam. Remark a line on the EVA Foam according to less 1/8 Attach one EVA Foam on the Curtain housing , the side (3mm) than the measured width in, then cut the EVA with adhesive should facing the Curtain housing... -
Page 10: Starting Your Air Conditioner
Starting Your Air Conditioner High High Cool Cool ■ Timer Sleep Filter Timer Sleep Filter ON/OFF CONNECT CONNECT MODE MODE ON/OFF T emperature ∧ 1. Press the power button to turn on the air conditioner. Press the plus UP button to raise the temperature. Each ■... - Page 11 Timer Sleep Filt r e 1. The LED light on control panel for Timer、Sleep、Filter. Timer Sleep Filter Timer Sleep Filter The function introduction See “using the remote control”. WIFI WIFI control is available for connected models with this logo on control panel. CONNECT CONNECT 1.
-
Page 12: Using The Remote Control
Using the Remote Control NOTE: Remote control may differ in appearance. T emperature ∧ Press the plus UP button to raise the temperature. Each ■ ∧ UP ( time you press or hold the plus button, the temperature will go up 1°F (1°C) until it reaches 86°F (30°C). ∨... -
Page 13: Changing Air Direction
Timer Filter 1. When the Filter indicator light is lit, remove, clean To set timer for a 1 – 24 hour delay on – off operation: and replace the air filter. See “Cleaning the Air Filter”. 1. Press TIMER on remote control, LED display on the air 2. -
Page 14: Air Conditioner Care
AIR CONDITIONER CARE Y our new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember the cost of this service call is your responsibility. -
Page 15: Troubleshooting
LESHOOTING Before calling for service try the sugge stions below to see whether you can solve your problem without outside help. Air conditioner will not operate Air conditioner power supply cord trips Reset button pops out) Disturbances in your electrical current can trip (Reset ■... - Page 16 The temperature of the room you are trying to cool is ■ Water drips from cabinet into your house extremely hot. Allow extra time for the air conditioner to cool off a very hot room. The air conditioner is not properly leveled. The air ■...
