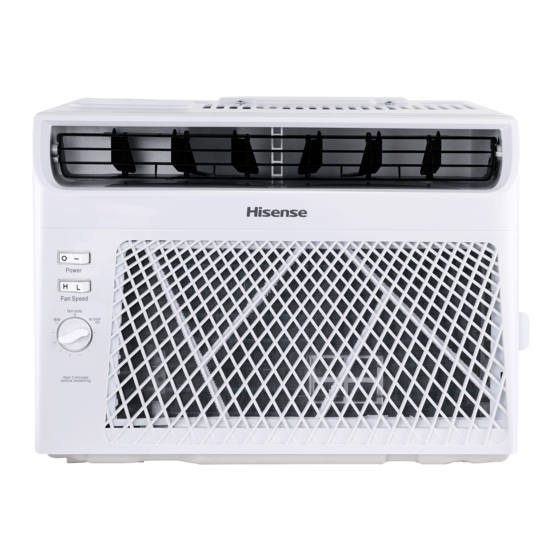

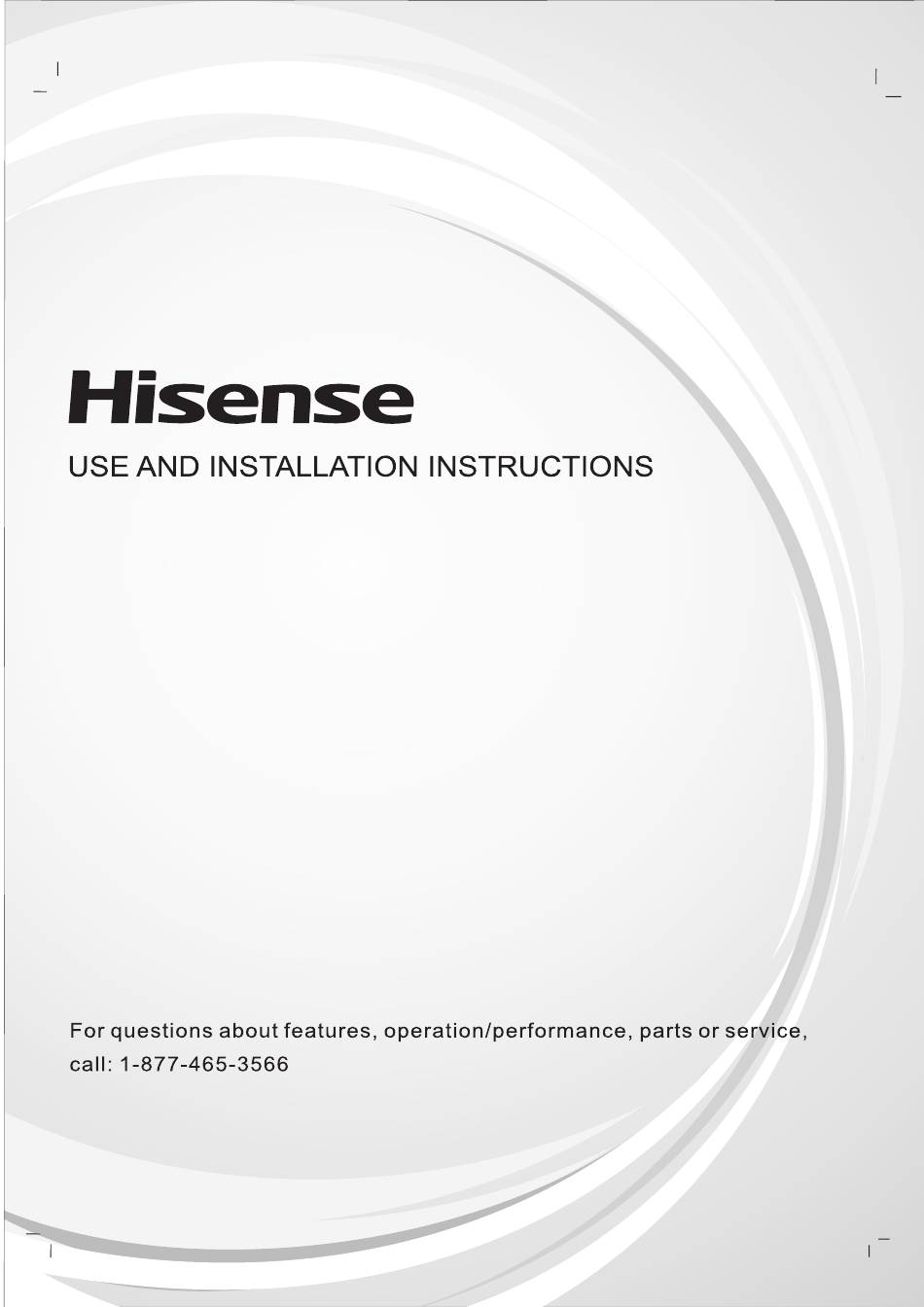

- Page 1 Model: AW0521CK1W...
-
Page 2: Table Of Contents
TABLE OF CONTENTS AIR CONDITIONER SAFETY INSTALLATION REQUIREMENTS Electrical Requirements Tools and Parts Unpack the Air Conditioner Location Requirements INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation Window Air Conditioner Installation Complete Installation AIR CONDITIONER USE Starting Your Air Conditioner Changing Air Direction Normal Sounds AIR CONDITIONER CARE Cleaning the Air Filter... -
Page 3: Air Conditioner Safety
AIR CONDITIONER SAFETY You safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol . This symbol alerts you to potential hazards that can kill or hurt you and others . -
Page 4: Installation Requirements
INSTALLATION REQUIREMENTS Electrical Requirements WARNING Wiring requirement 115 V (103.5 min. to 126.5 max.) 10 A time-delay fuse or circuit breaker Electrical Shock Hazard Power Supply Cord Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. -
Page 5: Tools And Parts
Tools and Parts Gather the required tools and parts before starting installation. Parts supplied Read and follow the instructions provided with any tools listed Check that all parts are included in parts package. here. T ools needed Phillips screwdriver Tape measure ■... -
Page 6: Location Requirements
Location Requirements Window Installation Before You Begin Read these instructions completely and carefully. Window opening measurements: ■ IMPORTANT: Save these instructions for local inspector’s use. These instructions are for a standard double-hung ■ IMPORTANT: Observe all governing codes and ordinances. window. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation 2. Insert top and then bottom of right-hand curtain housing in Attach Top Rail top and bottom curtain rails on air conditioner. 1. Locate the bag of screws provided. Back View 2. Place the top rail on top of the air conditioner cabinet, lining up the 4 holes in the top rail with the 4 holes on top of the air conditioner cabinet. - Page 8 Window Air Conditioner Installation 1. Center air conditioner in window. Lower the window sash behind the top rail to hold cabinet in place. Attach Side Curtains to Window Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air 1.
-
Page 9: Complete Installation
Complete Installation 1. Insert foam seal behind the top of the lower window sash and against the glass of the upper window. Electrical Shock Hazard WARNING Plug into a grounded prong outlet A. T op of lower window sash Do not remove ground prong . B Foam seal Do not use an adapter . -
Page 10: Starting Your Air Conditioner
Starting Your Air Conditioner Air Conditioner Features (5K BTU model only) Power ■ Press the power button to turn on the air conditioner. ○ — NOTE: Wait 3 minutes before restarting the appliance to prevent damaging the compressor. Fan Speed ■... -
Page 11: Changing Air Direction
Changing Air Direction Use the Vertical Level Vane to direct the air right or left. Use the whole cartridge to direct air up, down or straight ahead. A. Vertical Level Vane B. Cartridge Normal Sounds When your air conditioner is operating normally, you may hear Clicks from the thermostat cycle. -
Page 12: Troubleshooting
LESHOOTING Before calling for service try the sugge stions below to see whether you can solve your problem without outside help. Air conditioner will not operate Air conditioner power supply cord trips Reset button pops out) Disturbances in your electrical current can trip (Reset ■... - Page 13 The temperature of the room you are trying to cool is ■ Water drips from cabinet into your house extremely hot. Allow extra time for the air conditioner to cool off a very hot room. The air conditioner is not properly leveled. The air ■...
- Page 14 4179381-02...
