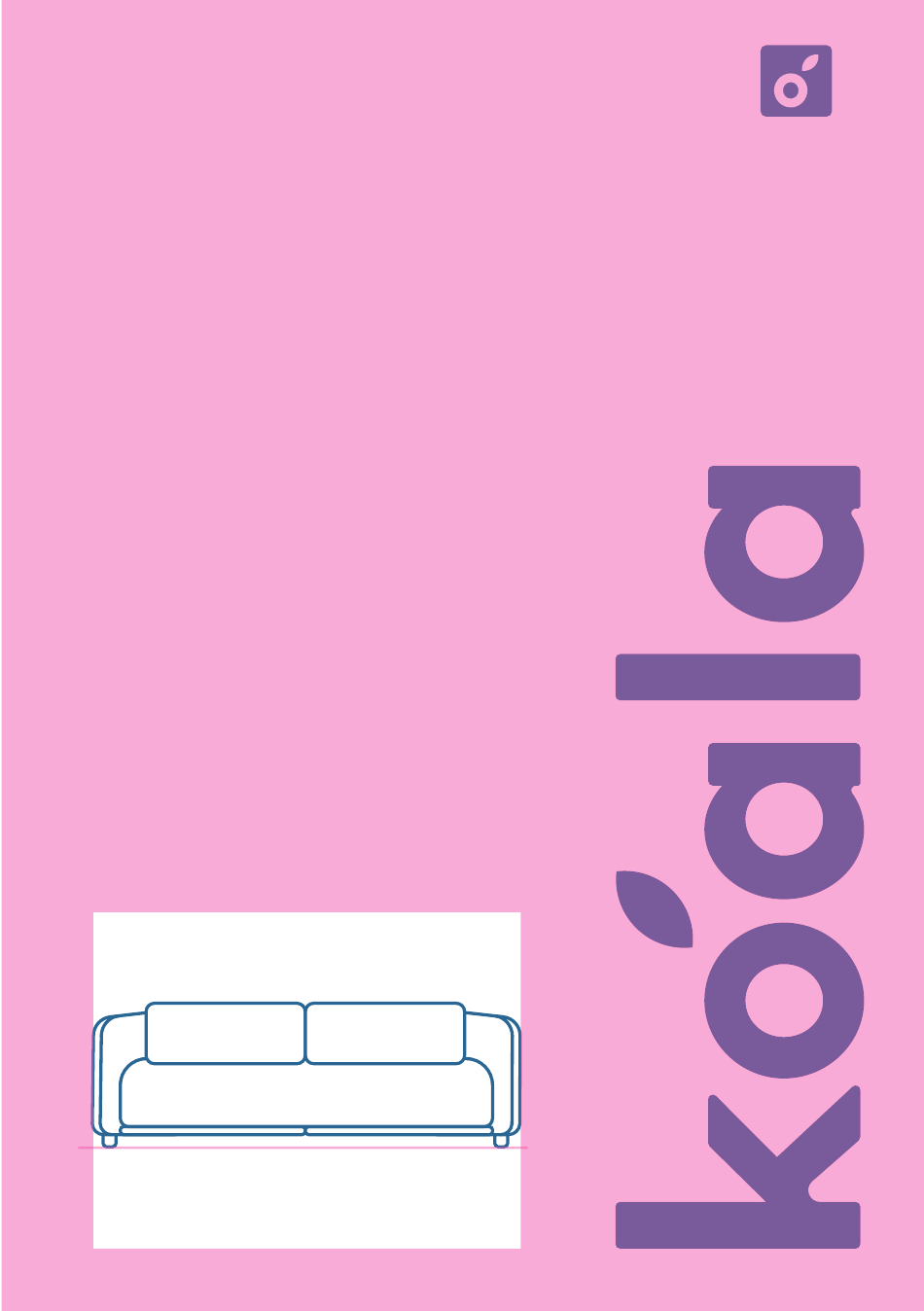

- Page 1 Click the button to watch the assembly video THE BEAUTY...
-
Page 2: What's In The Box
Click the button What’s in the box*: to watch the assembly video *Not to scale Left Armrest Right Armrest Small Seat Panel Large Seat Panel Left Backrest Right Backrest Left Pull-out Frame Right Pull-out Front Frame Beam Backrest Cushions Timber Shelf 104-9359 Mattress Middle Leg... - Page 3 Click the button Lay backrests flat, join together and to watch the assembly video open the to secure with secret doors large gumnuts from inside. Align middle leg on backrests and secure with small gumnut from inside. NOTE - Ensure flat side of middle leg is facing up.
- Page 4 Click the button Slide armrests onto u-shaped to watch the assembly video connectors on backrests. Secure each armrest with a large gumnut.
- Page 5 Click the button Mount front beam to armrest pins and to watch the assembly video secure with small gumnuts. Screw legs onto armrests.
- Page 6 Click the button Hold the front beam as a handle and to watch the assembly video rotate the sofa bed onto its legs. NOTE - Ensure front beam is secured with small gum nuts. Ensure tabs on timber shelves are facing up and place onto pins in backrests, then close the secret doors...
- Page 7 Click the button Place small seat panels onto seat frame to watch the assembly video and ensure velcro is at the back of the sofa. Slide each half of the pull-out frame together and secure with one gumnut at the bottom front, and one gumnut at the top rear.
- Page 8 Click the button Mount a stopper on each pull-out to watch the assembly video frame and secure with a gumnut. Place large seat panels onto pull-out frame.
- Page 9 Click the button Lift the front of the pull-out frame and to watch the assembly video slide the back end underneath the front beam of the seat frame. Place seat cushion onto seat frame.
- Page 10 Click the button Place backrest cushions onto sofa to watch the assembly video bed. Convert to bed sofa...
- Page 11 Click the button Convert to sofa bed to watch the assembly video Enjoy!
-
Page 12: Safety And Use
Product Information and Care FABRIC Regular Care (Weekly) • Vacuum regularly using low suction. • Protect from direct sunlight. Spot Cleaning • Remove any spills immediately by gently blotting any liquid with a clean cloth. • Scoop up any solids before blotting the remaining liquid. •... - Page 13 Click the button to watch the assembly video don’t forget to recycle.
