4.3.9.

AIR GAP MEASUREMENT AND SENSOR REASSEMBLY

•

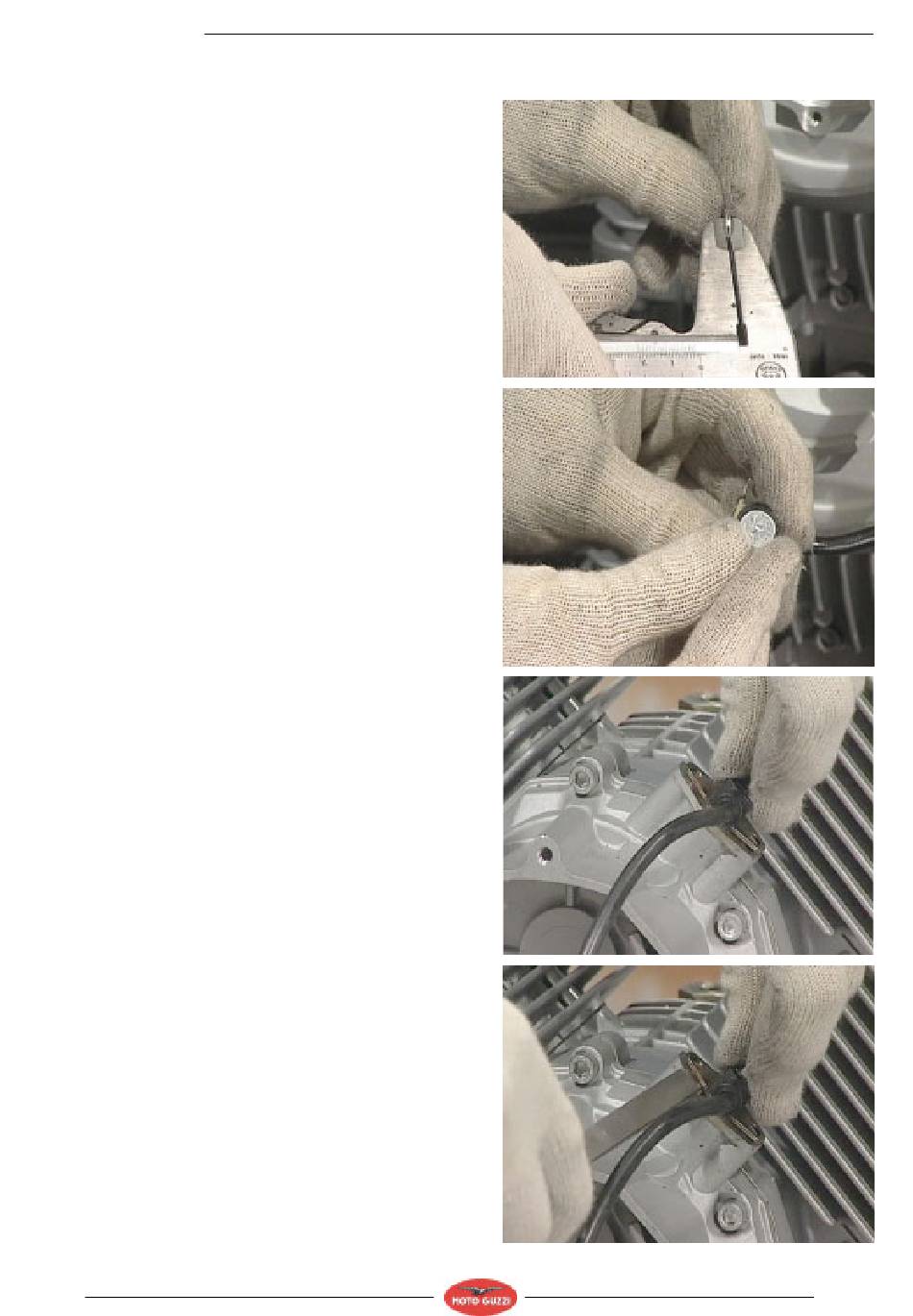

Insert a flat washer on the sensor to measure
thickness.
•
Position the sensor on timing cover and contact it with
the sound wheel.
•
Use a thickness gauge to measure clearance between
securing plate and cover. Substraction of flat washer
thickness from the found value gives the clearance
between sensor and sound wheel.
