Reference Manual
MS-00809-0300-4965, Rev AA
March 2025

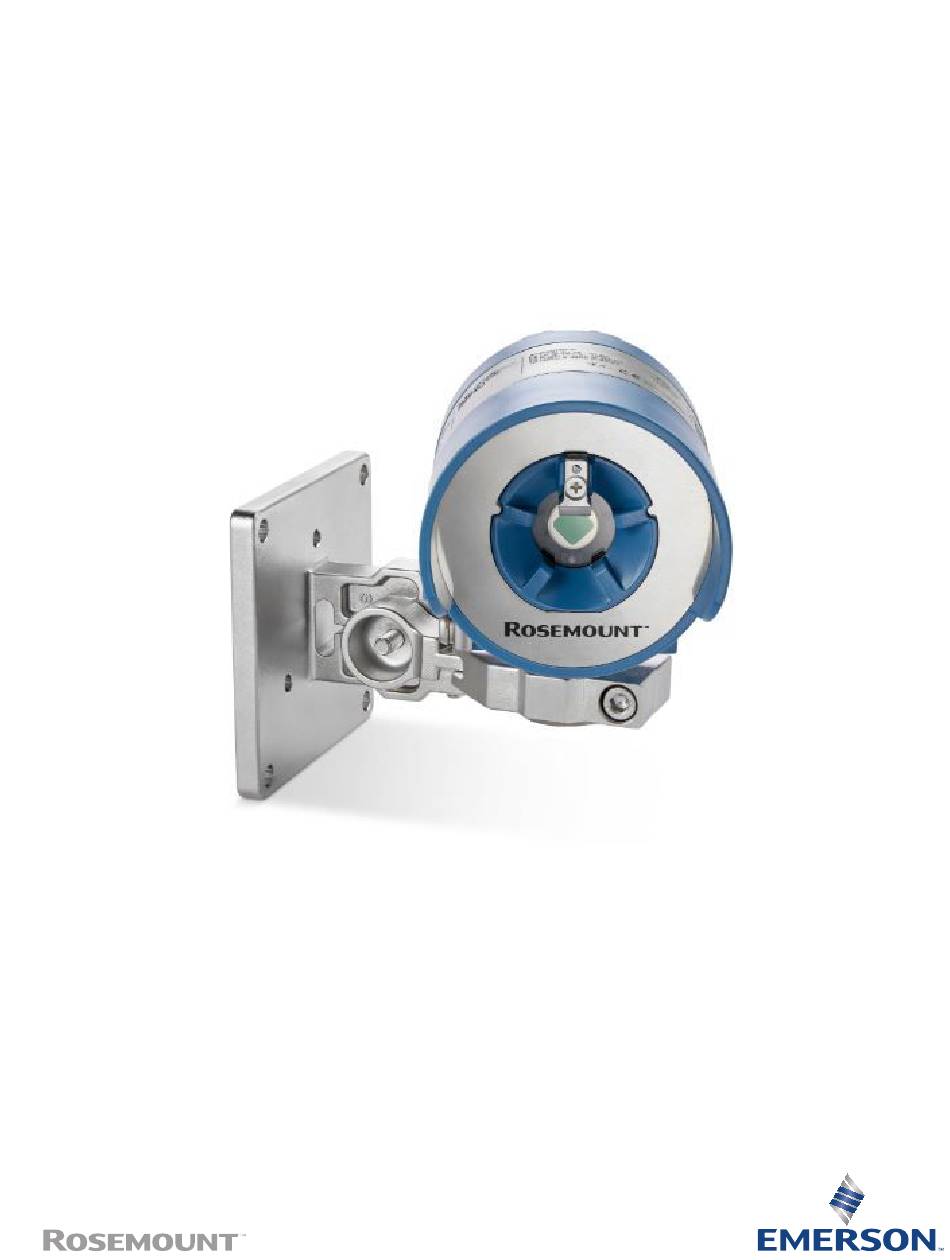

Rosemount
965 Flame Detector
With HART
Protocol
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 965 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount 965

  • Page 1 Reference Manual MS-00809-0300-4965, Rev AA March 2025 Rosemount ™ 965 Flame Detector With HART Protocol ®...
  • Page 3: Table Of Contents

    Introduction..........................5 Chapter 2  Installation..........................7 ® 2.1 Download the HART Device Driver (DD)................. 7 ® 2.2 Load DD on HART handheld communicator................7 ® Chapter 3  Operating the HART handheld communicator..............9 3.1 Overview screen........................10 3.2 Device information screen....................... 11 3.3 Service tools screen........................14 www.Emerson.com...
  • Page 4 Contents Reference Manual March 2025 MS-00809-0300-4965 www.Emerson.com...
  • Page 5: Chapter 1 Introduction

    This manual describes how operators can use HART handheld field communicators to ® configure the Rosemount 965 Flame Detectors to suit customer needs, perform firmware upgrades, and find troubleshooting information and functionality. This manual also describes the HART handheld communicator software and provides ®...
  • Page 6 Introduction Reference Manual March 2025 MS-00809-0300-4965 www.Emerson.com...
  • Page 7: Chapter 2 Installation

    Device Driver (DD) ® To download the HART device driver: Procedure 1. Go to Emerson.com/Rosemount. 2. Using the site navigation, go to the relevant product page. 3. Scroll down to Documents and Drawings. 4. Click SOFTWARE DOWNLOADS & DRIVERS. 5. Download the relevant file.
  • Page 8 Installation Reference Manual March 2025 MS-00809-0300-4965 www.Emerson.com...
  • Page 9: Operating The Hart ® Handheld Communicator

    ® MS-00809-0300-4965 March 2025 3  Operating the HART handheld ® communicator Main screen: From the main screen, there are three options: A. Overview: Opens Overview screen. B. Service Tools: Opens Service Tools screen. C. Configure: Opens Configure screen. www.Emerson.com...
  • Page 10: Overview Screen

    F. Locate Device: Click here to make the device Light-Emitting Diode (LED) blink to locate a connected device. G. Log: Shortcut to Log screen. H. Device Information: Displays Device Information screen. When the Device Information screen is opened from the Overview screen, all fields are read-only. www.Emerson.com...
  • Page 11: Device Information Screen

    Reference Manual Operating the HART handheld communicator ® MS-00809-0300-4965 March 2025 3.2  Device information screen A. Identification: Opens Identification screen. B. Revisions: Opens Revisions screen. C. Security: Opens Security screen. www.Emerson.com...
  • Page 12: Identification Screen

    C. Model D. Final asmbly num (Final assembly number) E. Dev id (Device identification) F. Date G. Descriptor H. Message I. Model number Note When the Identification screen is accessed from the Overview screen, all fields are read- only. www.Emerson.com...
  • Page 13: Security Screen

    A. Universal rev: Universal revision B. Fld dev rev: Field device revision C. Hardware rev: Hardware revision D. Software rev: Software revision E. DD Revision: Device driver revision 3.2.3  Security screen A. Device lock status. B. Password Protection: Enabled or disabled. www.Emerson.com...
  • Page 14: Service Tools Screen

    Reference Manual ® March 2025 MS-00809-0300-4965 3.3  Service tools screen Note If the Service Tools screen provides links to sub-screens, then these may be used to view and edit service-related device parameters. A. Alerts B. Variables C. Trends D. Maintenance www.Emerson.com...
  • Page 15: Alerts Screen

    ® MS-00809-0300-4965 March 2025 3.3.1  Alerts screen The Alerts screen provides information about device alerts and enables active alerts to be reset. A. Refresh Alerts: Tap to refresh alert status. B. Displays alert status: No Active Alerts in this example. www.Emerson.com...
  • Page 16 B. Primary Variable: Opens screen where the analog output variables can be selected. C. Secondary Variable: Opens screen where the temperature-related variables can be selected. D. Tertiary Variable: Opens screen where the voltage-related variables can be selected. E. Quaternary Variable: Opens screen where the heater-related variables can be selected. www.Emerson.com...
  • Page 17 3.3.4  Secondary variable screen The Secondary Variable screen displays electronics information. A. Electronics Temperature: Displays electronics temperature. B. Temperature Status: Displays how well the temperature is being read. C. Electronics Temperature gauge: Tap to display Electronics Temperature gauge screen. www.Emerson.com...
  • Page 18 From the Trends screen, the variables can be viewed on a listed graph. A. Analog Output: Displays the analog output on a graph. B. Electronics Temperature: Displays the electronics temperature on a graph. C. Supply Voltage: Displays the supply voltage on a graph. www.Emerson.com...
  • Page 19: Maintenance Screen

    A. Manual Built In Test: Performs manual built-in test. B. Analog Trim: Calibrates 4-20 mA. With the analog trim function, the multimeter values can be rounded to a 4-mA fixed value. Tap Analog Trim and then enter and confirm the multimeter reading. www.Emerson.com...
  • Page 20: Log Screen

    B. Previous Log Records: Displays previous log records. C. Last Log Records: Displays the latest Log Record screen. D. Next Log Records: Displays the next Log Record screen. E. Device Log: Displays the log in a table. 3.3.10  Reset/Restore screen A. Reset Device: Performs soft reset www.Emerson.com...
  • Page 21: Configure Screen

    From the Configure screen, the detector's parameters can be configured manually or by using the wizard. A. Guided Setup: Opens screen from which the parameters can be configured using the wizard. B. Manual Setup: Opens screen from which the parameters can be configured manually. www.Emerson.com...
  • Page 22 C. Detection Option: Guides the user through detector options configuration. D. Access Control: Guides the user through access control configuration. E. 4-20 Current: Guides the user through the 4-20 mA current configuration. F. Device Information: Guides the user through detector information configuration. www.Emerson.com...
  • Page 23 B. BIT: Opens BIT Settings screen. C. Detection Options: Opens Detection Options screen. D. Security: Opens Security screen. E. Current Levels: Displays levels. F. Device Information: Displays the Device Information screen. See Device information screen. G. HART: Opens HART Settings screen. www.Emerson.com...
  • Page 24: Alarm Screen

    ® March 2025 MS-00809-0300-4965 3.3.14  Detector settings screen A. Sensitivity: Selects the sensitivity. See the options displayed in the Rosemount 965 Quick Start Guide. B. Alarm: Opens the Alarm screen. C. Window Heater: Opens Window Heater Settings screen. 3.3.15  Alarm screen A.
  • Page 25 A. Alarm Relay on BIT: Activate or deactivate alarm relay on BIT. B. Automatic BIT: Activate or deactivate automatic BIT. C. BIT Interval: Manually select BIT interval. D. BIT Fault Count: Manually select BIT fault count. E. Post Manual BIT Duration: Set post manual BIT duration in seconds. www.Emerson.com...
  • Page 26: Security Settings Screen

    A. Device Lock Status: Displays device lock status. B. Lock/Unlock: Lock or unlock the detector for maintenance. No other device can configure the detector while it is locked. C. Password Protection: Displays password protection status. D. Enable/Disable Password: Enable password protection to prevent unauthorized access. www.Emerson.com...
  • Page 27 D. Warning: Current displayed during warning. 13 - 16 mA (should always be lower than alarm value). Default: 16 mA. E. Alarm: Current displayed during alarm. 15 - 20 mA (should always be higher than warning). Default: 20 mA. www.Emerson.com...
  • Page 28: Device Information Screen

    Revision numbers screen A. Universal rev: Displays HART revision number. ® B. Fld dev rev: Displays device revision number. C. Hardware rev: Displays hardware revision number. D. Software rev: Displays software revision number. E. DD Revision: Displays device driver revision number. www.Emerson.com...
  • Page 29 Reference Manual Operating the HART handheld communicator ® MS-00809-0300-4965 March 2025 3.3.21  Device information screen A. Identification: Opens Identification screen. B. Revisions: Opens Revisions screen. C. Security: Opens Security screen. www.Emerson.com...
  • Page 30 Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
