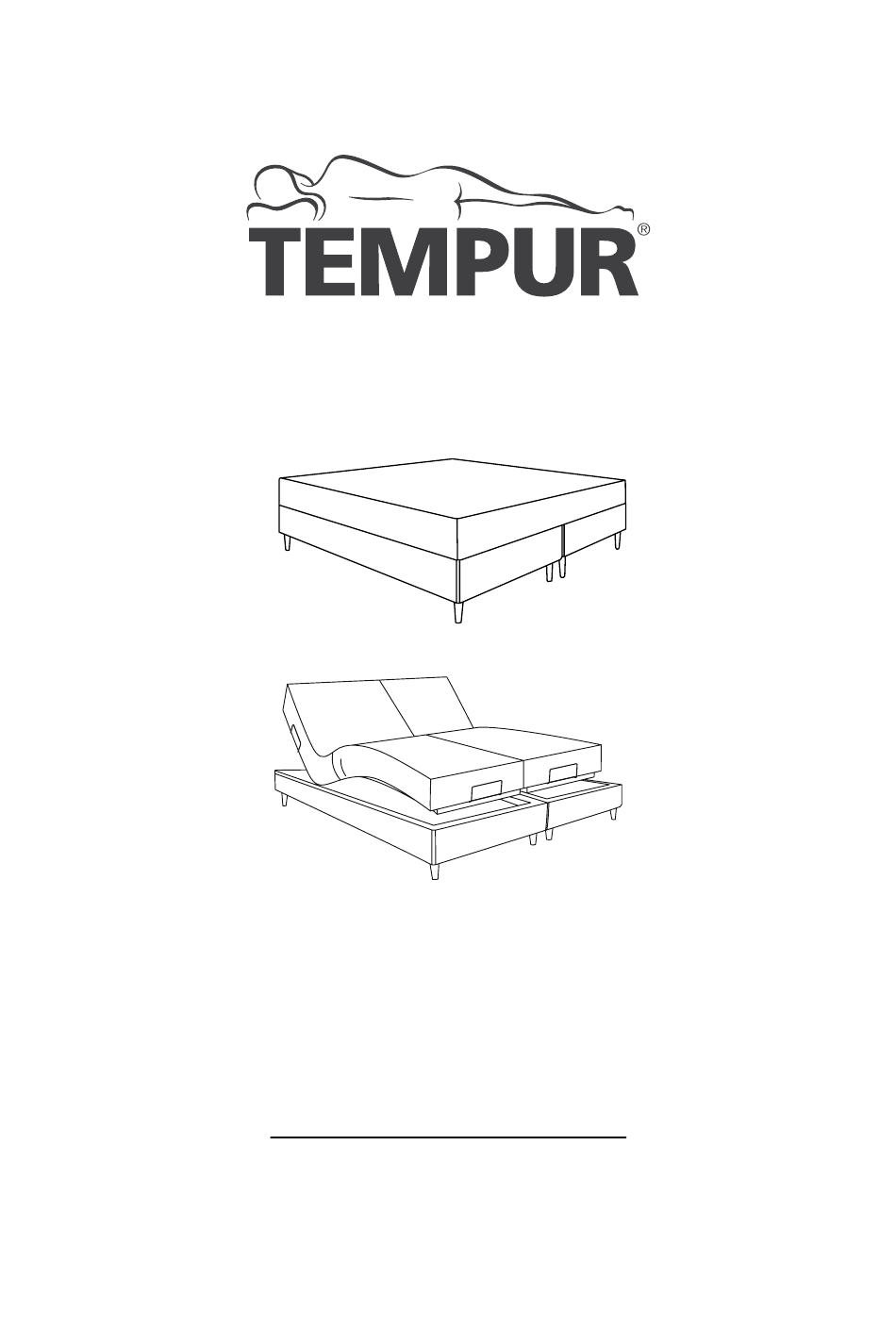

- Page 1 TEMPUR FORM Bed range ASSEMBLY GUIDE...
- Page 2 Contents: TEMPUR FORM Static Boxspring bed assembly guide TEMPUR FORM Adjustable Boxspring bed assembly guide Headboard assembly guide...
- Page 3 Welcome to TEMPUR® Thank you for choosing a TEMPUR® product!
- Page 4 TEMPUR FORM Bed range Static Boxspring bed assembly guide...
- Page 5 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and dam- age to the product. Assemble the product with a minimum of two people. Open the packaging carefully to prevent causing damage to the product. Dispose of the packaging safely and as sustainably as possible in your local area.
-
Page 6: Component List
Component list Check all the components. No tools are needed for the assembly. 2x bed base 8x legs 2x connector sets... - Page 7 IMPORTANT Check for the holes at the head-end of the bed base. These are for connecting the headboard to the bed base if you opted for one. These holes also mark the head-end of the bed frame. During the assembly it’s important to determine the head-end and foot-end to install correctly the connector set between the two bed frames.
- Page 8 2. Attach the legs and connector sets to the first bed half. There are two connectors which need to be positioned on the upside edge of the first frame. For the first half of the base place the connector with the velcro side down.
- Page 9 4. Attach the legs and connector sets to the second bed base. There are two connectors which need to be positioned on the upside edge of the second frame. For the second half of the base place the connector with the velcro side up.
- Page 10 6. Once the connectors are in place, you are now ready to place the mattress onto the bed.
- Page 11 TEMPUR FORM Bed range Adjustable Boxspring bed assembly guide...
- Page 12 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and damage to the product. Assemble the product with a minimum of two people. Open the packaging carefully to prevent causing damage to the product. Dispose of the packaging safely and as sustainably as possible in your local area.
- Page 13 Component list Check all the components. No tools are needed for the assembly. 8x legs 2x bed base 2x foot-end mattress retainer 2x connector sets 2x side mattress retainer 2x remote control with 2x motor with power cord batteries...
- Page 14 1. Install the legs and connector sets. Using two people, position both bed bases upside down on an even surface. Make sure head-ends face the same direction. Attach the connectors to left side of left hand bed base and to the right side of the right half of the bed base.
- Page 15 2. To install the motor Slide the catches off the top of the motors. Take note of where the motor indicates the head and foot ends. Head and foot markings are shown on the image below. 3. Install the motors to both bed bases. Install the motor as per the image slotting into the brackets in the middle of the base.
- Page 16 4. Slide the catches back into the motors. Slide the catches back onto the motor to lock into place as per the image be- low. Repeat the step for the second half of the frame. IMPORTANT Make sure catches are inserted correctly and motor is firmly connected. 5.
- Page 17 7. Syncing the remote control to a motor. Whilst being no more than 2 meters from the base, follow the next steps to sync the first motor and the remote: 1. Connect the motor to the power supply. 2. Press the button on the motor twice, as show in image 2. The button will then light up.
- Page 18 8. Connect the two bed bases together. Using two people put both bed bases on an even surface with the connecting plates facing each other. Push the beds together and then overlap the connectors to link the velcro pads. Push the velcro pads together to secure. 9.
- Page 19 Buttons on your remote. Two upper buttons control the head-end - left button rises and right button lowers the head-end. Two middle buttons control the foot-end - left button rises and right button lowers the foot-end. Two bottom buttons control both the head-end and foot-end together - left button rises and right button lowers both.
- Page 20 TEMPUR FORM Bed range Headboard assembly guide...
- Page 21 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and damage to the product. Assemble the product with a minimum of two people. Open the packaging carefully to prevent causing damage to the product. Dispose of the packaging safely and as sustainably as possible in your local area.
- Page 22 Component list Check all the components. All the tools needed for assembly come with the product. 1x headboard 2x M4 screw 2x mounting bracket 2x M6 screw 1x M6 Allen key 1x M4 Allen key...
- Page 23 1. Install the mounting brackets. At the head end of the base using the tools provided, screw the mounting bracket into the holes as per the image. Using the M4 screw for upper hole and M6 screw for the bottom hole. Repeat this for both outer sides of each base.
