TEMPUR ARC™ Bed range
ASSEMBLY GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARC Bed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TEMPUR ARC Bed

Summary of Contents for TEMPUR ARC Bed

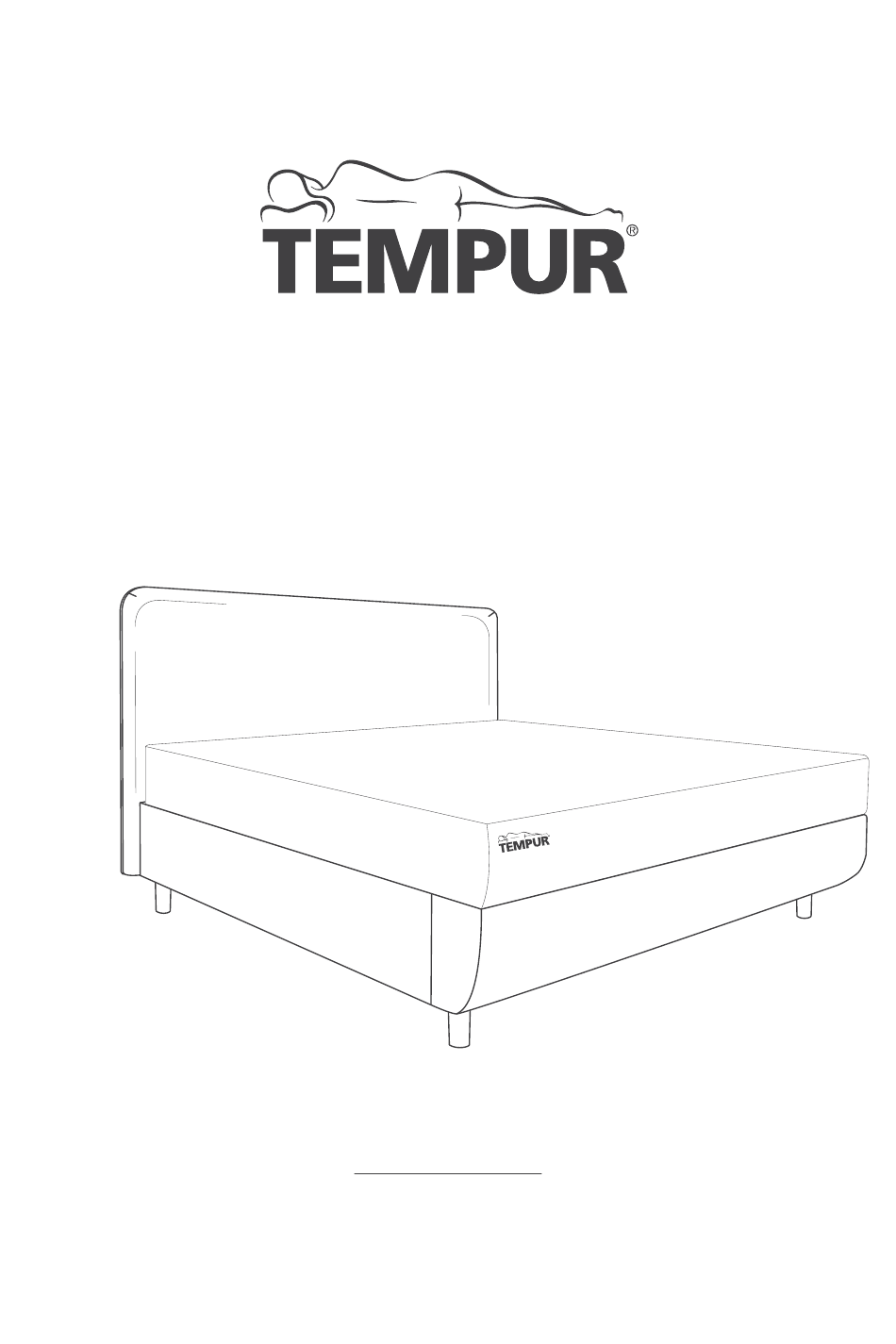

  • Page 1 TEMPUR ARC™ Bed range ASSEMBLY GUIDE...
  • Page 2 TEMPUR ARC™ Outer frames assembly guide Product exceptions: Luxury headboard TEMPUR ARC™ Inner frames assembly guides TEMPUR ARC™ Static disc inner frames assembly guide TEMPUR ARC™ Adjustable disc inner frames assembly guide TEMPUR ARC™ Storage mesh assembly guide TEMPUR ARC™ Ottoman inner frame(s) assembly guide...
  • Page 3 Welcome to TEMPUR ® Thank you for choosing a TEMPUR product. ®...
  • Page 4 TEMPUR ARC™ Bed range Outer frames assembly guide...
  • Page 5 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and damage to the product. Assemble the product with a minimum of two persons. Open the packaging carefully, so as not to damage the product and its parts. Dispose of the packaging safely and as sustainably as possible in your local area.

  • Page 6: Component List

    Component list Check all components. All the means and tools required for product assembly come with the product: 1 x headboard 2 x side panels 1 x foot-end panel 4 x cones; 4 x leg details; 4 x felt pads...
  • Page 7 Products exceptions TEMPUR LUXURY headboard extra component ® In case you have a TEMPUR LUXURY headboard, there is an additional component, ® a headboard extra panel. TEMPUR LUXURY will be standing on the floor. The additional panel is attached on ®...

  • Page 8: Assembly Steps

    Assembly steps 1. Connecting cones with legs Connect cones with leg details. Screw legs into cones. Make sure that these are fixed firmly. 2. Follow icons on the corner connectors Follow the head and feet graphic icons on the corner connectors. You need to connect the corners with matching icons on them, feet with feet and head with head.
  • Page 9 3. Organizing the bed parts Lay all outer frame parts on the floor, connectors facing upside.
  • Page 10 4. Connecting one side panel with headboard Place one side panel into the headboard corner connector. Fix the panel by placing one leg into the corner connector. Push the leg, no need to twist the legs. When the bed frame will be lifted into its upright position afterwards, these will be fixed in firmly.
  • Page 11 6. Turning bed to horizontal position One person is standing on one side of the bed frame by the head-end and another one the opposite side. Hold with one hand the headboard and with other hand the side panel, follow the arrows on the drawing for hand positions.
  • Page 12 8. Fixing the foot-end with legs One person is by one foot-end corner and another one in the opposite corner, shown with arrows on the drawing. Fix the foot-end panel by placing legs in each corner connector and push them. No need to twist, the weight of the construction of the bed will fix the legs to the end position.
  • Page 13 TEMPUR ARC™ Static Disc Static disc inner frames assembly guide...
  • Page 14 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and damage to the product. Assemble the product with a minimum of two persons. Open the packaging carefully, so as not to damage the product and its parts. Dispose of the packaging safely and as sustainably as possible in your local area.
  • Page 15 Components Follow the direction of the frame; you have light gray discs at the head-end. Head-end Foot-end...
  • Page 16 Removing transport holders Remove 4 pieces of white plastic holders at the head- and foot-end.
  • Page 17 CAUTION Lift and carry the frame with two people by holding it from the bottom support frames. WARNING While mounting the frames, be careful your fingers are not trapped between the outer and inner frame. CAUTION Be aware not to carry the frame only holding it from the middle of the slats or discs, these may come off or be damaged.
  • Page 18 Double static disc inner frames placement Take one frame with two people and turn it sideways. One person lifts the frame from the head-end and the other from the foot-end. Hold the frame from the longer side support frame. Place the frame sideways (inner side facing downwards) inside the outer frame.
  • Page 19 Add another frame the same way. Discs are with different softnesses, light gray colored discs are softer and dark gray colored are harder.
  • Page 20 Mattress placement Place the mattress in position with two people. Follow the TEMPUR brand, ® which should be placed in the front left corner of the bed.
  • Page 21 TEMPUR ARC™ Adjustable Disc Adjustable disc inner frames assembly guide...
  • Page 22 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely, and to minimize the risk of personal injuries and damage to the product. Assemble the product with a minimum of two persons. Open the packaging carefully, so as not to damage the product and its parts. Dispose of the packaging safely and as sustainably as possible in your local area.
  • Page 23 Components Follow the direction of the frame, you have light gray discs on the head-end side of the frame. Head-end Foot-end 2 x Premium remote control 4 x cable 2 x adapter 2 x mattress bar...
  • Page 24 Removing transit ties Remove the transit ties from both sides of the frame by cutting. Remove the fastening tie from the cable.
  • Page 25 Premium motor Connect the correct plug end into the motor mains and insert the other end into the adapter. Lead the cable around the middle relief. By using the relief, you avoid the mains cable plug being pulled out of the motor and a potential malfunction.
  • Page 26 Mattress bar installation The mattress bar needs to be attached on the support frame, under slat units, at the foot-end side. Remove first slat unit with discs by pulling it out. Firstly, pull out slat unit one end and then the other end. Place and pull the mattress stopper to its position on the support frame.
  • Page 27 CAUTION Lift and carry the frame with two people by holding it from the bottom support frames. WARNING While mounting the frames, be careful your fingers are not trapped between the outer and inner frame. CAUTION Be aware not to carry the frame only holding it from the middle of the slats or discs, these may come off or be damaged.
  • Page 28 Double adjustable inner frames placement Installing first frame: Both persons should hold the frame from its longer opposite sides. Hold from the bottom non-moving part of the frame and lift the frame horizontally. One person stands by the bed outer frame and the other steps inside the bed base. Place the frame head-end onto the corners and headboard metal angle.
  • Page 29 Installing second frame: Lift the frame sideways. The longer side, which will be inner side in the bed base, needs to be facing downwards. Hold from opposite frame ends from non-moving part of the frame. The person standing on the head-end side steps into the bed base. Place the inner frame head-end onto the headboard metal angle, and the other end onto the bed foot-end.
  • Page 30 Pairing two motors and two remotes - Frames working in a separate mode 1. Plug first motor cable into the power socket. 2. The motor light will start to blink at a steady pace and now you have 3 minutes for pairing.
  • Page 31 Pairing two motors and two remotes - Frames working in a parallel mode 1. Plug the cables of both motors into power sockets. 2. Both motor lights will start to blink at a steady pace and now you have 3 minutes for pairing.
  • Page 32 Pairing two motors and one remote - Frames working in a parallel mode 1. Plug the cables of both motors into power sockets. 2. Both motor lights will start to blink at a steady pace for 3 minutes and now you have 3 minutes for pairing.
  • Page 33 Restarting pairing Version A To restart pairing, unplug the motor cable(s) from the power socket and wait for 1 minute, then plug the cable(s) back in again. Now you are ready for pairing mode. 1 min Version B To do it faster, push the motor light(s) button on the remote(s) to light up and then take the motor cable(s) out from the power socket(s).
  • Page 34 Premium remote functions Underfloor light on/off Backrest up Backrest down Footrest up Footrest down Zero Gravity position Memory position To use the Zero Gravity To save Memory position, function, just push the press the remote memory button once and it moves button down for 10 seconds.
  • Page 35 Mattress placement Place the mattress in position with two people. Follow the TEMPUR brand, ® which should be placed in the front left corner of the bed.

  • Page 36: Emergency Lowering

    Emergency lowering Emergency lowering is meant for lowering the bed if a power failure occurs and the bed needs to move into a horizontal position. 1. Disconnect the motor from the mains. 2. Remove the slats in the middle of the motor foot and head end side. Remove the slats from the frame by clipping them out.
  • Page 37 3. Take the hex key on the side of the motor, use something you have at home such as a pen to push the key out. Do not use an electric screwdriver for lowering, use the hex key enclosed on the motor. 4.
  • Page 38 TEMPUR ARC™ Storage mesh net assembly guide...
  • Page 39 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely and to minimize the risk of personal injuries and damage to the product. Open the packaging carefully, so as not to damage the product and its parts. Dispose of the packaging safely and as sustainably as possible in your local area.

  • Page 40: Component List

    Component list 1 x headboard 2 x side panels 1 x foot end panel 4 x cones; 4 x leg details; 4 x felt pads 1 x storage mesh 2 x strap...
  • Page 41 1. Lay all outer frame parts on the floor, connectors facing upside. 2. Connect cones with leg details. Screw legs into cones. Make sure that these are fixed firmly. Add felting pad.
  • Page 42 3. Place the straps diagonally on top of 4. Place the storage mesh on top of each other with the strap loops facing the belts. the corners. 5. Place one side panel into the headboard corner connector. Fix the panel by placing one leg into the corner connector.
  • Page 43 6. Connect second side panel with the headboard corner connector and fix it with another leg. Before fixing it firmly place the loops of strap and storage mesh on top of the leg cone. 7. Turn the bed to its horizontal position.
  • Page 44 9. Place the straps and storage mesh loops into foot-end corners. One person is lifting the bed frame corner and other one places the loops inside corner connector on the top of the leg cone. Finally make sure that all the legs are fixed firmly.
  • Page 45 TEMPUR ARC™ Ottoman inner frame(s) assembly guide...
  • Page 46 CAUTION The assembly instructions must be followed closely to install the bed system successfully, safely and to minimize the risk of personal injuries and damage to the product. Assemble the product with two persons. Component list 1 x or 2 x inner frames (depending on the frame) Components to join two inner frames (incase you have two inner frames)
  • Page 47 Components to join hinges with the frames 4 x M6 50 mm bolts 4 x M6 nuts 1 x M6 spanner 1 x M6 Allen key 2 x pistons 4 x M8 nuts 1 x M8 spanner 1. Define head and foot end of the frame(s). On the head end side, you have holes for mattress stopper.
  • Page 48 3. Slot the M6 x 60 mm bolts through the holes and fix slightly with the M6 nuts. Do it at both ends of the frame. At the foot end side add the handle on top of the bracket. Tighten the bolts and nuts with the M6 spanner and Allen key. 4.
  • Page 49 5. Carefully place the inner frames on the bed base. Connect the frames with hinges. Align the holes on the frame with the holes on the hinge and pass the two M6 x 50 mm bolts into the holes, both sides of the frame. Place a M6 nut onto each of the M6 bolts and tighten with fingers then using the Allen key, fully tighten the bolts.
  • Page 50 WARNING Don’t leave the storage bed in a closed position without weight (mattress) on top of it. Especially don’t leave it unattended in case you have children. The frame can spring upwards quickly and suddenly without the weight of the mattress and can cause injuries. Please make sure that children do not play with the bed.
