Rekluse RadiusX Installation Manual page 16

Lever with "slack" th
removed
Optimal Free Play Gain yields 1/8"-1/4" (3 mm-6 mm) of
clutch lever movement, measured at the ball end of the lever.
This measurement at the lever correlates to achieving the ideal
installed gap.
Two Ways to Check for Free Play Gain
The following steps explain 2 ways to check Free Play Gain. One
way uses the rubber band Rekluse includes in the clutch kit, and
one uses your hand. You can use either method to check for Free
Play Gain.
Pg. 16

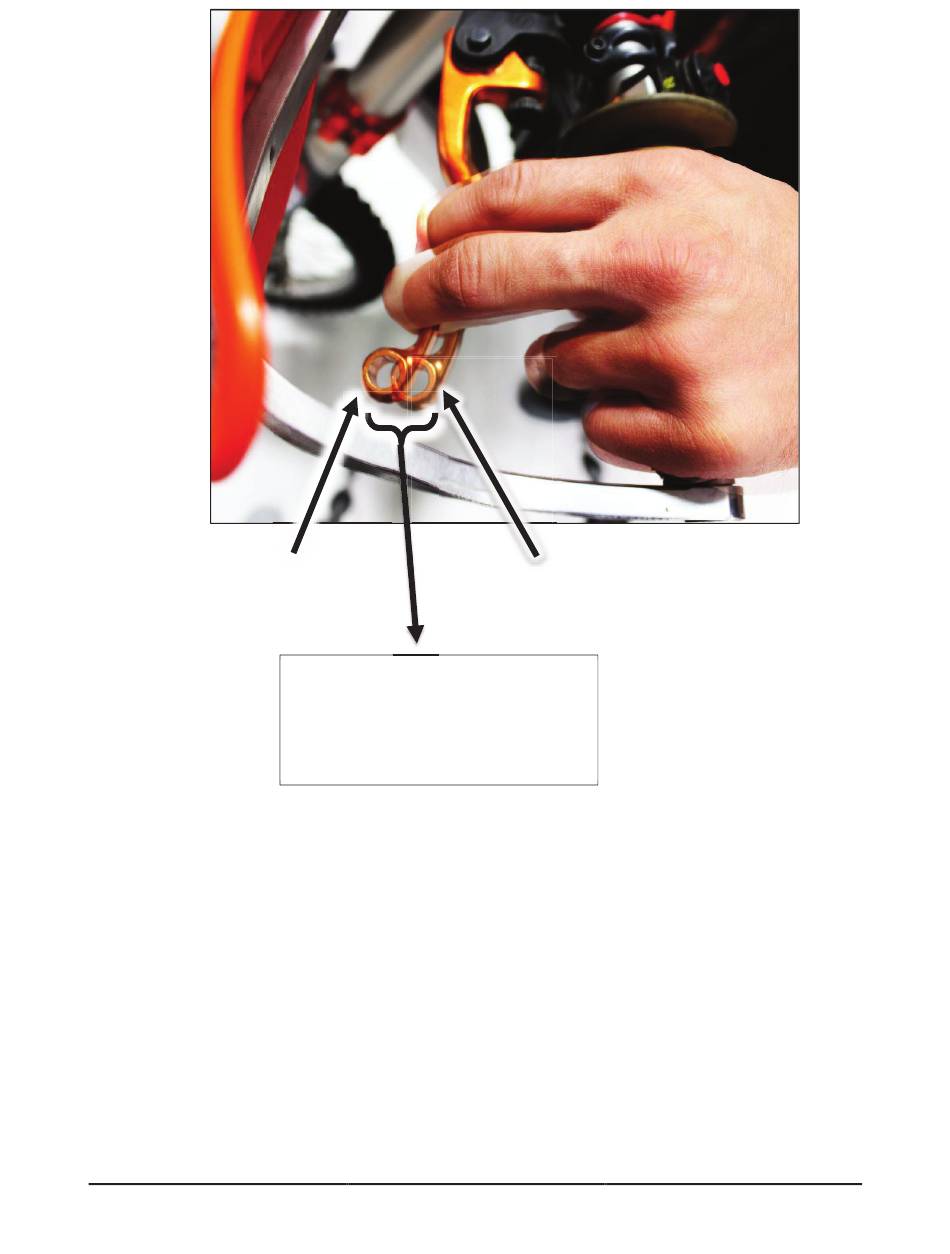

" l k" "
Free Play Gain
1/8"-1/4" (3 mm-6 mm)
lever movement
Doc ID: 191-6305A
Doc Rev: 091020
Leve L Lever position around
5,000 RPM
