LED CONTROL BOARD REPLACEMENT

WARNING: Power must be disconnected before installation and servicing,

cleaning, and other user maintenance. Failure to disconnect power creates risk

of fire, electric shock, and serious bodily injury.

CAUTION: The Big Ass Fans product warranty will not cover equipment damage

or failure that is caused by improper installation or use.

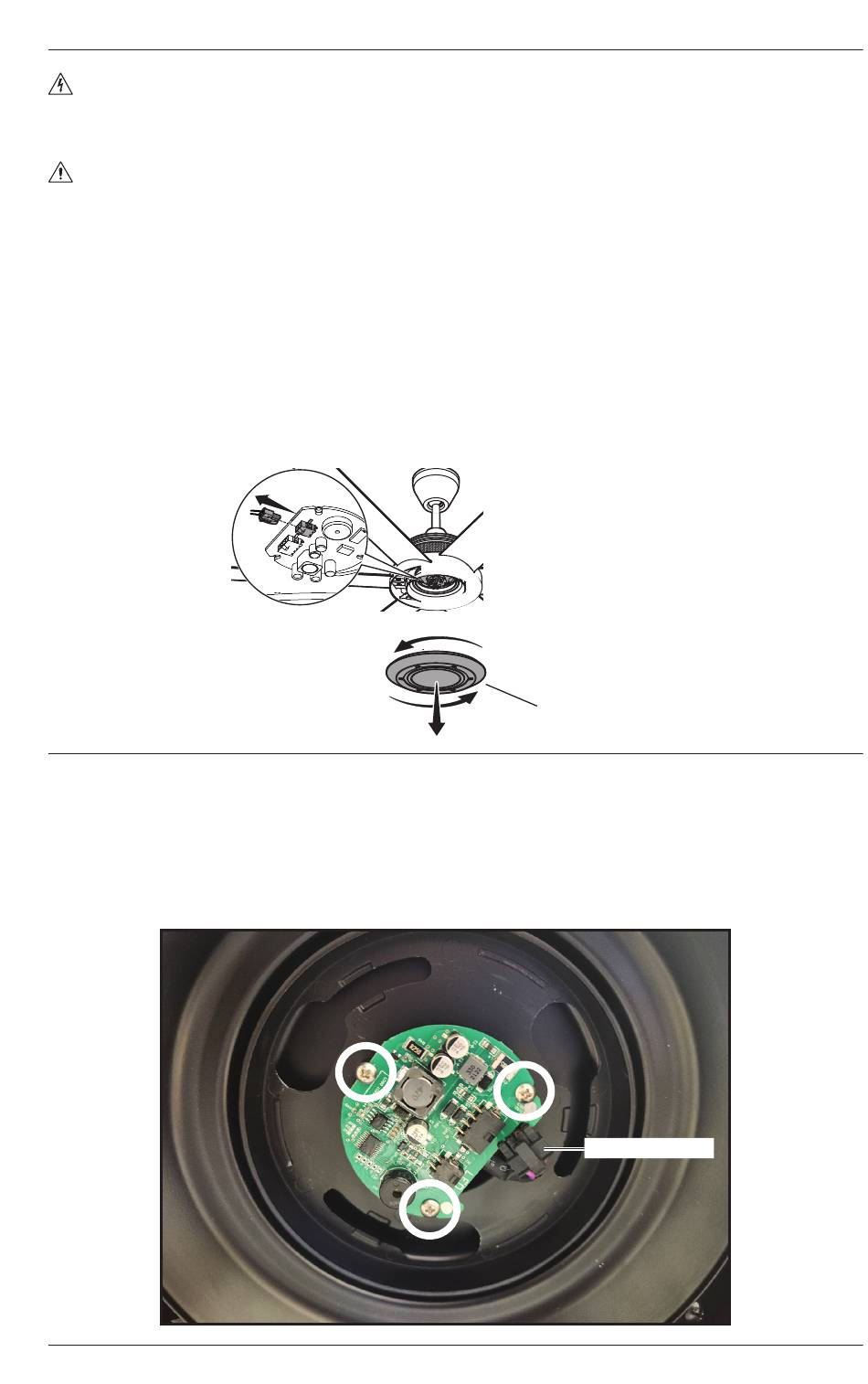

1. Remove light or lower cover

Remove light or lower cover from bottom of fan by twisting counterclockwise (Fig. 1).

Disconnect light wiring harness from "LED" receptacle on bottom of fan (Fig. 1).

Fig. 1

2. Remove old control board

Disconnect fan wiring harness from control board on bottom of fan and remove the

three screws securing control board to fan (Fig. 2). Save screws for installing new

control board.

Fig. 2

Light Wiring

Harness

Light or Lower Cover

Wiring Harness

Need help?

Do you have a question about the Mammoth and is the answer not in the manual?

Questions and answers

Summary of Contents for BIG ASS FANS Mammoth

Page 1 Failure to disconnect power creates risk of fire, electric shock, and serious bodily injury. CAUTION: The Big Ass Fans product warranty will not cover equipment damage or failure that is caused by improper installation or use.
Page 2 LED CONTROL BOARD REPLACEMENT 3. Install new control board Secure new control board to fan with the three screws and connect wiring harness (Fig. 3). Fig. 3 Wiring Harness 4. Reinstall light or lower cover CAUTION To reduce the risk of electric shock, disconnect power to fan before installing light. If reinstalling a light, plug light wiring harness into “LED”...
