Summary of Contents for Redarc Manager30

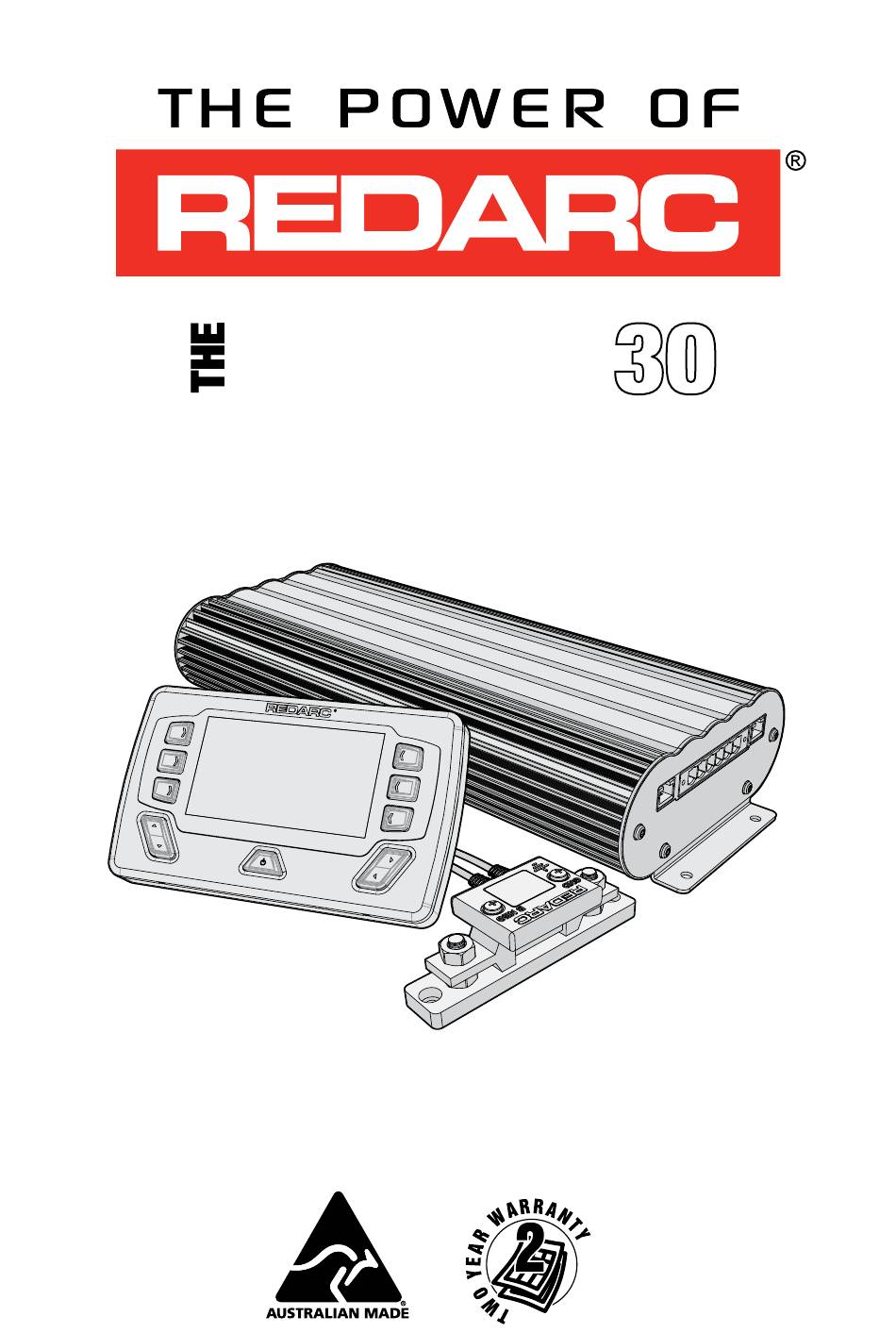

- Page 1 MANAGER Battery Management System BMS1230S3R-NA...
- Page 2 Use of an attachment not recommended or sold by REDARC may result in a risk of fire, electric shock, or injury to persons. GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS — Charger shall be grounded to reduce risk of electric shock.
- Page 3 WARNINGS AND SAFETY INSTRUCTIONS Do NOT try to charge non-rechargeable batteries. When using the Battery Charger to charge a Lithium Iron Phosphate battery, only batteries that feature an inbuilt battery management system featuring inbuilt under and over voltage protection and cell balancing are suitable. NEVER smoke or allow a spark or flame in vicinity of battery.
- Page 4 • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by REDARC could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
- Page 5 2.4.1 Load Disconnect Feature 2.4.2 Ignition Trigger Feature 2.4.3 Connecting the Battery Sensor 2.4.4 Wiring the Main Unit Batteries MPPT Solar Regulator Copyright © 2020 REDARC Electronics Pty Ltd. All rights reserved. Design and specifications are subject to change without notice.
- Page 6 10. Sophisticated fault detection monitors the house battery condition during all stages of charging, keeping you and your travel trailer/camper/RV safe. 11. The Manager30 has a separate battery sensor to monitor battery conditions and state of charge even while The Manager30 is in standby mode. The battery sensor monitors current, voltage and temperature of the house batteries.
- Page 7 The Manager30 is designed to offer a complete solution to battery charging and maintenance needs for recreational automotive applications. The Manager30 incorporates AC Mains/Shore Power, DC and Solar inputs to achieve the best charge to a house battery The Display The Manager30 comes with a Display designed to give you house battery information and charge status along with critical system information while charging is in progress.
- Page 8 INTRODUCTION Specifications Electrical Specifications Inputs AC Input Input Voltage Range (nominal) 110 to 120 VAC, 50 to 60 Hz Power Rating 560 W Efficiency 80% to 90% Connection IEC Mains Plug DC Input Input Voltage Range Nominal: 9 to 30 V | Maximum: 9 to 32 V Turn ON/OFF Threshold 12 V (24 V) 13.2 V / 12.7 V (26.4 V / 25.4 V) Power Rating...
- Page 9 INTRODUCTION 17.520" (445 mm) 15.906" (404 mm) 16.890" (429 mm) FIGURE 1.4.1: Main Unit Dimensions 0.276" 0.728" 0.433" 0.236" (7 mm) (18.5 mm) (11 mm) (6 mm) 0.433" Optional Spacer (11 mm) 6.22" (158 mm) 6.142" (156 mm) 0.177" 0.236" (⌀4.5mm) (6 mm) ×...
- Page 10 This allows The Manager30 to operate correctly even when loads are connected to the house battery. This mode will always produce an output (unless a fault condition is detected) and will cycle through the three stages as required to maintain the house battery as outlined in Figure 1.5.1.
- Page 11 Maintenance stage turns The Manager30 output off, but continues to monitor the House Battery and will revert to Float stage when the House Battery drops below 12.7 V (12.8 V for Lithium) for 5 seconds or below 90% SoC for 1 hour.
- Page 12 30 Amps, the current supplied to charge the battery is restricted to the user setting. Any excess BMS1230S3 capacity is available to power loads running from the battery under charge. If no loads are running from the battery, total current from The Manager30 will be restricted to the level set by the user.
- Page 13 Power Source Display BMS1230S3R 110 VAC Mains Power FIGURE 2.1.1: System Layout Mounting Instructions This section describes how to mount the three major components of The Manager30: the Main Unit, the Display and the Battery Sensor. FIGURE 2.2.1: The Manager30 System...
- Page 14 2.2.1 Mounting the Main Unit Do NOT expose the Main Unit to rain, snow, spray or bilge water. For optimum operation, The Manager30 should be mounted where the temperature is nominally below 95 °F (35 °C) and does not exceed a maximum of 140 °F (60 °C).
- Page 15 INSTALLATION GUIDE 2.2.2 Mounting the Display The Display should be mounted inside the vehicle (Refer to page 38 for a 1:1 cutout template). It is however acceptable to mount the Display in any convenient location, as long as it is protected from harsh environments such as being exposed to rain or severe amounts of dust or full-time direct sunlight.
- Page 16 INSTALLATION GUIDE Removing the Display Fascia...
- Page 17 INSTALLATION GUIDE NOTICE Refer to page 38 for a 1:1 cutout template Flush Mount Drill/Cut Dimensions NOT TO SCALE Refer to page 38 for a 1:1 cutout template Surface Mount Drill/Cut Dimensions NOT TO SCALE Refer to page 38 for a 1:1 cutout template Ø45mm Ø45mm...
- Page 18 Battery Charger. The Manager30 is capable of drawing up to 50 A from the Vehicle Battery (which may be several feet/ meters from its installation location) and is limited to 30 A output to the House Battery. The installer needs to ensure the appropriate cable is used to connect the positive and negative connections of The Manager30 to both the Vehicle Battery and the House Battery.
- Page 19 REDARC recommends the installer use cabling and connections between 8B&S and 6B&S automotive. REDARC recommends that the output wire be of the size outlined in Figure 2.3.2.1. For longer runs, using 10 mm² is recommended, however this will lower efficiency by up to 3% (the recommended maximum length is 16'5"...
- Page 20 The AC/Shore Power connection must be connected to an earthed socket outlet. Do not use The Manager30 AC input if the cord is damaged. Use of a non-genuine or damaged AC input cord may result in a risk of fire, electric shock, or injury to persons. (If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or service agent).
- Page 21 INSTALLATION GUIDE 2.4.3 Connecting the Battery Sensor Wire the Battery Sensor as shown in Figure 2.4.3.1 ensuring that the “BNEG” stud connects to the House Battery negative terminal and the “GND” stud connects to the vehicle common ground point. The Battery Positive Lead connects to the house battery positive terminal, this lead measures voltage and temperature at the battery.
- Page 22 Display or Battery Sensor Battery, and should be rated slightly higher than *4 Ensure the RED terminal on the Battery Sensor this. REDARC recommend the use of MIDI is connected to the Battery Positive Terminal. Style Fuses. *2 Essential loads are loads which must be left on A single fuse and holder at all times, until the battery is flat.
- Page 23 Boost and Absorption stages indicate the wrong choice of battery type. Check and adjust battery type. If you are unsure of the battery type or settings to use, set The Manager30 to the Gel setting. Figure 2.5.1 and 2.5.2 show standard wiring for batteries in series and in parallel.
- Page 24 (Refer to Figure 2.6.1). So long as the voltage requirements are met, there is no limit to the number of panels that can be connected in a solar array; however The Manager30 will not draw more than 520 W from the solar input.
- Page 25 Left/Right function Power Button The Display is the main user interface for the Manager30 System. The Display is designed to give you control of how the battery is being charged, as well as up-to-date house battery and charge information at any time during the charging process.
- Page 26 USER GUIDE Navigation The Left/Right buttons are used to navigate the pages on the center of the screen. The Up/Down buttons are used to navigate through options found on other pages or to cycle through devices on the Home Page when a Distribution Box is connected. The Left/Right and Up/Down functions are indicated on the screen.
- Page 27 USER GUIDE Basic Screens Home Screen When connected to a Manager only, the 13.9V RedVision display will provide real time 13.6V information on the battery State of Charge, 10 hrs ---V Sources, Current Flow and Solar Input Pushing Left reveals the Settings menu and Right reveals the information menu.
- Page 28 Pushing the down arrow displays the Distribution Box Info. screen When used with a REDARC MANAGER system. When used with a REDARC RedVision Distribution Box. State of Charge logs The State of Charge log screens detail State of Charge per Day...
- Page 29 USER GUIDE Display Settings Factory Settings Key Sound: Display Settings Key Backlight: Home Timeout: 1 min Standby Timeout 1 min Brightness Minimum: Brightness Maximum: 100% Clock Format: 12 Hour The Display Settings screen allows setup and modification of Display specific settings as outlined below. This icon will return to the Home Screen.
- Page 30 REDARC. This icon links to the RBus Diagnostics screen. This screen provides a serial number for each REDARC device connected to the system. More information on the selected device can be found by clicking the top right Soft Key.
- Page 31 USER GUIDE BMS Settings BMS Settings When a Battery Management System is connected, the system will allow setup and modification of a number of BMS settings as outlined below. This icon will return to the Home Screen This icon links to the Battery Information screen. This screen allows the user to set their battery type and size.
- Page 32 ‘Clear’ or ‘Ignore’. Both options will clear the screen. After selecting ‘Clear’, however, The Manager30 will immediately check to see if the condition still exists. If it doesn’t, the unit will restart charging. Selecting ‘Ignore’ will simply hide the fault screen for up to one minute. It will NOT allow The Manager30 to recommence charging unless The Manager30 itself detects the removal of the fault condition.
- Page 33 USER GUIDE Faults CHARGER FAULT MESSAGE CAUSE ACTION An internal error has caused excessive Charger over current fault Return to supplier current draw The output voltage is too high Check battery is correct type Charger over voltage fault (above 18 V) (12 V, 6 cell) Allow to cool, charging will Charger over temperature.
- Page 34 Display. NOTICE The RedVision App and its interactions with the Manager30 System have not been tested on all smartphones available on the market so is not guaranteed to work on all devices. However, the app has been designed to work with: •...
- Page 35 Pairing Instructions ® Install the RedVision or Configurator App (scan the corresponding QR code or search for “REDARC” on your device’s app store) On the Display, press Left, navigate to display settings REDVISION and press the Bluetooth® Soft Key – this should say “Your display is ready for pairing”...
- Page 36 USER GUIDE Subsequent Connections Once a smartphone has been paired with a RedVision Display, it will automatically reconnect with that Display when the app is opened. If you have multiple Redvision Displays paired and you want to switch between which is connected to your smart phone, tap on the 3 gear symbol on the top left of the app.
- Page 37 I am running a load from my house battery, but it does not seem to register on The Manager30 Display, why can I not see this current draw? This is generally caused by incorrect wiring of the Battery Sensor.
- Page 38 DISPLAY DRILL / CUTOUT TEMPLATE PHOTOCOPY OR PRINT THIS PAGE AT 100% SCALE Before drilling holes, ensure that this template is printed at the correct size. 3.583" (91 mm)
- Page 39 24 for prompt and efficient diagnosis and product support. REDARC Corporation Pty Ltd (“REDARC”) offers a warranty in respect of its Products purchased from an authorized distributor or reseller of REDARC by a person who is the original retail purchaser (“Purchaser”), on the terms and conditions, and for the duration, outlined below in this document (“Warranty”).
- Page 40 FREE TECHNICAL ASSISTANCE For product and technical support contact your regional distributor, call our head office between 8:00 a.m. to 5:30 p.m. Australian Central Standard Time, Monday to Friday, or send us an e-mail. Pour accéder Para ver el au manuel manual en d’utilisation Español...
