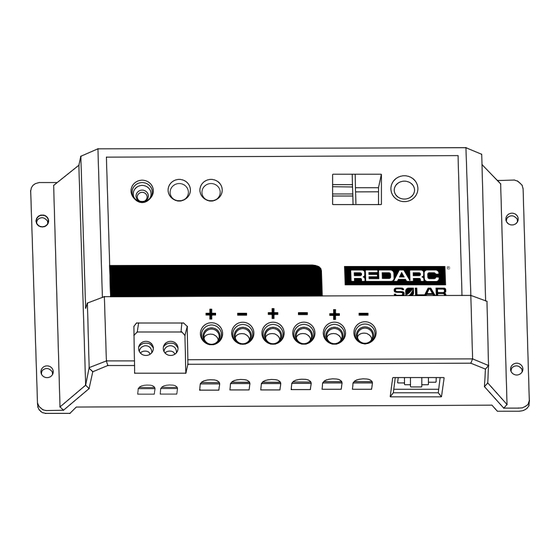

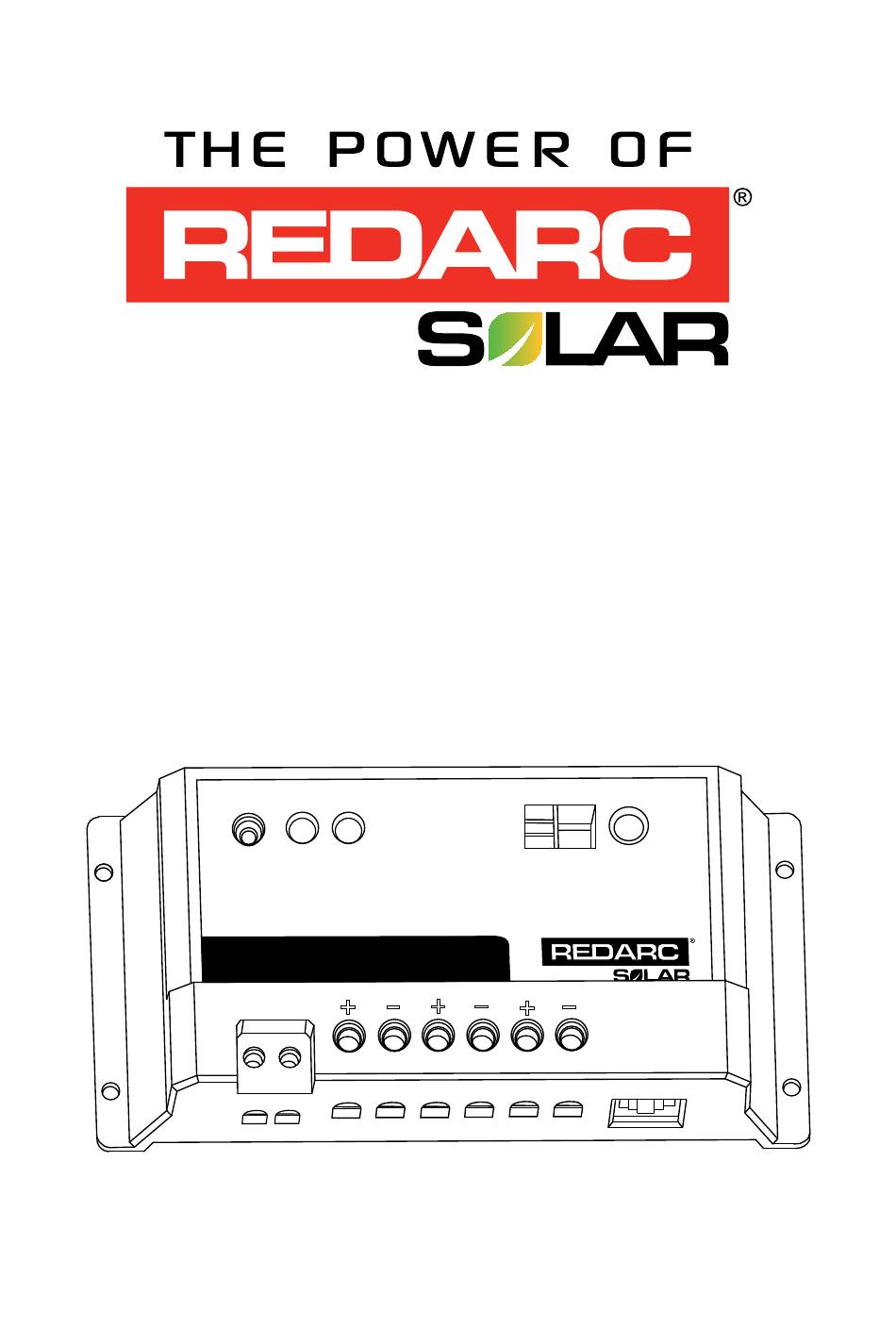

- Page 1 Solar Regulator SRP0120 / SRP0240...
-
Page 2: The Solar Regulator
THE SOLAR REGULATOR REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your auxiliary batteries. REDARC solar regulators are PWM controlled and incorporate automatic system voltage detection. Our solar regulators are suitable for charging up to two separate battery banks and come in both 10 A and 20 A models which are capable of charging either 12 V or 24 V battery systems. -
Page 3: Table Of Contents
CONTENTS THE SOLAR REGULATOR WARNING & SAFETY INSTRUCTIONS 1 SPECIFICATIONS 1.1 Dimensions 1.2 General Specifications 2 THE SOLAR REGULATOR 2.1 Regulator Function 2.2 Connection 2.3 Indication 2.4 Setting Modes 2.5 Modes 3 SYSTEM SETUP 3.1 Fuse Protection 3.2 Installation Notes 3.3 Standard Setup (12 V) 3.4 Dual Battery Setup (24 V) 3.5 Dual battery setup with Multiple solar panels... -
Page 4: General Specifications
SPECIFICATIONS General Specifications System Voltage 12 V 24 V Battery Type AGM/Gel Calcium AGM/Gel Calcium Absorption Voltage* 14.4 V 14.6 V 14.8 V 28.8 V 29.2 V 29.6 V Float Voltage* 13.6 V 13.6 V 13.6 V 27.2 V 27.2 V 27.2 V Maximum Input Voltage 30 V 55 V Battery Voltage Range 9 – 15 V 18 – 30 V Power Rating 120 W (SRP0120) / 240 W (SRP0240) 240 W (SRP0120) / 480 W (SRP0240) Current Limit... -
Page 5: The Solar Regulator
THE SOLAR REGULATOR Regulator Function Battery type Charge Priority MODE LED Indication Chart Temperature sensor Charge Frequency (on side of regulator) Battery 1 charge status Set Button Battery 2 charge status Remote Remote temperature monitor sensor (optional) (optional) Connection The regulator should be connected to the battery according to the diagram above. The connection order is indicated by the numbers circled. -
Page 6: Setting Modes
THE SOLAR REGULATOR Setting Modes NOTE: • The regulator will automatically sense the battery voltage. • A 24 V battery system must have 24 V solar panels and a 12 V battery system must have 12 V solar panels. 1. Press the Set button to start the mode select process. 2. -
Page 7: System Setup
Fuse protection is required for wire and component protection in case of short circuit. Fuses are to be fitted as close as possible to the battery positive terminal. REDARC recommend using MIDI style bolt down fuses as they ensure a low resistance connection. The REDARC FK40 and FK60 fuse kits are recommended. -
Page 8: Standard Setup (12 V)
SYSTEM SETUP Standard Setup (12 V) Amorphous Flexible and Folding Solar Panels are also suitable for this installation. Fuse Regulator Fuse Size SRP0120 15 A SRP0240 30 A Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to specific installation requirements. -
Page 9: Dual Battery Setup With Multiple Solar Panels
SYSTEM SETUP Dual battery setup with Multiple solar panels Amorphous Flexible and Folding Solar Panels are also suitable for this installation. ‘Y’ Connectors available for second panel Cable kits installation available for second battery installation Fuse Fuse Regulator Fuse Size SRP0120 15 A SRP0240... -
Page 10: Setup For Standard Lead Acid Batteries, 70% Charge Priority To Battery 1
SYSTEM SETUP Setup for standard lead acid batteries, 70% charge priority to battery 1 Press the ‘Set’ button and Press and hold the ‘Set’ Hold cycle until the first LED is button for 5 seconds to on (Battery Type). enter the setting change state for mode Charge Priority. -
Page 11: Warranty
UK/Europe Mexico +44 (0)20 3930 8109 +52 (558) 526 2898 Design and specifications are subject to change without notice. | Copyright © 2021 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. - Page 12 Australia power@redarc.com.au www.redarc.com.au + 1300 REDARC (1300 733 272) New Zealand power@redarcelectronics.co.nz www.redarcelectronics.co.nz +64 9 222 1024 North America power@redarcelectronics.com www.redarcelectronics.com United States +1 (704) 247 5150 Canada +1 (604) 260 5512 Mexico +52 (558) 526 2898 UK/Europe power@redarcelectronics.eu www.redarcelectronics.eu +44 (0)20 3930 8109 www.redarc.com.au...
