- Page 1 Solar Regulator SRPA0120 SRPA0240 SRPA0360...
-
Page 2: The Solar Regulator

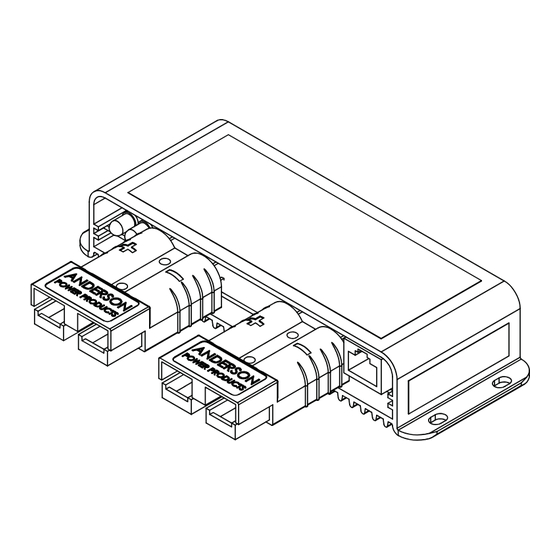

THE SOLAR REGULATOR REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your lead acid house or auxiliary batteries. REDARC solar regulators are Pulse Width Modulated (PWM) controlled and incorporate automatic system voltage detection. -
Page 3: Table Of Contents
2.3. Specifi cations 3. System Setup 3.1. Installation Notes 3.2. Fuse Protection 3.3. Accessories 3.3.1. SRPA-RM 3.3.2. REDARC Cable Range 4. System Wiring 4.1. 12V Standard System 4.2. 24V Standard System 4.3. Wiring Multiple Panels 12V 4.4. Wiring Multiple Panels 24V... -
Page 4: Introduction
INTRODUCTION DIMENSIONS 153 mm 135 mm REGULATOR FUNCTION The SRPA regulators are supplied factory set to the AGM battery type setting; A REDARC remote monitor (SRPA-RM) is required to change the battery type. Solar Panel LED1 Indicator Battery LED2 Indicator... -
Page 5: The Solar Regulator
Connect to the Battery and Solar Panel via an Anderson™ SB™50, 50A grey connector. Connect to the battery fi rst before the solar panel. The REDARC Solar Regulator should be connected as close as possible to the battery it is charging. Refer to section 3.1 Installation notes and section 4. System Wiring. -
Page 6: Specifi Cations
THE SOLAR REGULATOR SPECIFICATIONS System Voltage Battery Type selectable via remote Standard Calcium Standard Calcium (Default) (Default) monitor SRPA-RM Absorption Voltage* 14.4V 14.6V 14.8V 28.8V 29.2V 29.6V Constant Current Stage Equalize Charging 14.8V 29.6V Voltage Equalise Time 2 hours 2 hours Absorb Time 3 hours Float Voltage*... -
Page 7: System Setup
• The regulator should be installed as close as possible to the battery/s. • Ensure that any non-Redarc Anderson™ plug terminals are soldered correctly or crimped with the correct Anderson™ crimping tool. • Always check the manufacturer’s data for your battery and ensure that the ‘Maximum’ voltage of the charging profi... -
Page 8: Fuse Protection
Fuse protection is required for wire and component protection in case of short circuit. Fuses are to be fi tted as close as possible to the battery positive terminal. REDARC recommend using MIDI style bolt down fuses as they ensure a low resistance connection. The REDARC FK40 and FK60 fuse kits are recommended. -
Page 9: Accessories
ACCESSORIES 3.3.1 SRPA-RM The SRPA-RM is an optional Remote Monitor for use with REDARC SRPA0120, SRPA0240 and SRPA0360 regulators. The SRPA-RM is required to change the charging profi le on the Regulator. By Default SRPA0120, SRPA0240 and SRPA0360 Regulators are set to AGM. -
Page 10: System Wiring
SYSTEM WIRING 12V STANDARD SYSTEM... -
Page 11: Standard System
SYSTEM WIRING 24V STANDARD SYSTEM... -
Page 12: Wiring Multiple Panels 12V
SYSTEM WIRING WIRING MULTIPLE PANELS IN PARALLEL (12V) -
Page 13: Wiring Multiple Panels 24V
SYSTEM WIRING WIRING MULTIPLE PANELS OF DIFFERENT TYPES IN PARALLEL (12V) - Page 14 Friendly, personalised, professional service and product support In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical...
- Page 15 Redarc in writing at the postal address or email address specifi ed in in accordance with the instructions of Redarc.
- Page 16 This product has been specifi ed and tested in Australia in accordance with REDARC specifi cations and testing requirements by REDARC Engineers. You can be assured that this product meets the stringent quality levels of all REDARC products. © 2016 Anderson Power Products™, Inc.
