Appendix A: GPIO Instruction
a a: GPIo I
PPendIx

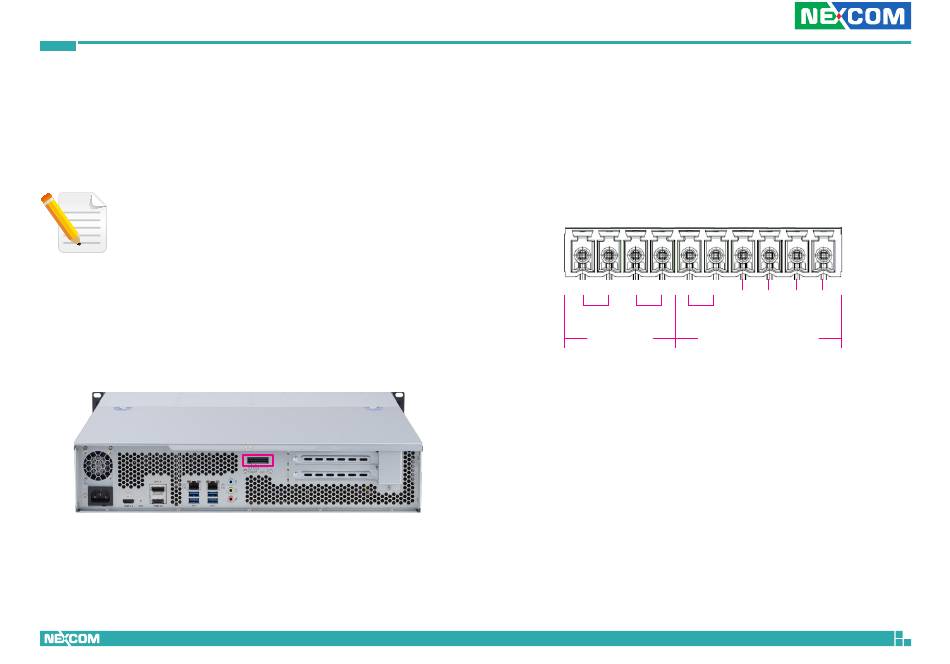

Locating the GPIO Connector
The GPIO function is an optional feature. If available, the GPIO
expansion board comes pre-installed on the system by default.
• This device boasts a 10-pin GPIO pin conveniently located on its rear
panel. This versatile digital pin, controlled by software, can function as
an input, output, or both, allowing you to customize its behavior and
connect with various external devices.
Copyright © 2025 NEXCOM International Co., Ltd. All Rights Reserved.
nstruCtIon
64
Understanding GPIO Pin Definitions
NO COM NO COM
GPO2 GPO1
Output
GPI4 GPI2
GND GPI3 GPI1
Input
