- Page 1 Montageanleitung Assembly instructions WELLFUN LARGE Massivsauna 206 x 206 x 204 cm Log board sauna WELLFUN LARGE Version 12/17...

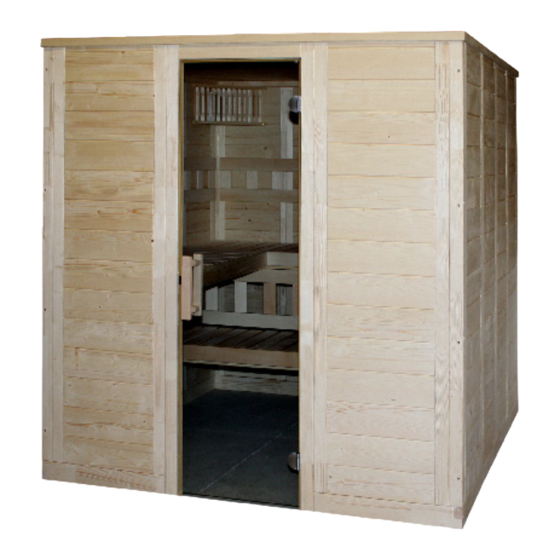

- Page 2 Assembly instructions Log board sauna WELLFUN LARGE Dimension of the cabin: 204 x 204 x 202 cm incl. border edging: 206 x 206 x 204 cm Inside dimension: 196 x 196 x 198 cm Wall thickness: 40 mm Dear customer, Before starting to assemble the cabin, please check with the help of the parts list, if all elements have actually been supplied.
- Page 3 Parts list WELLFUN LARGE 2 floor frame massive battens 66 x 4 x 9 cm 3 floor frames massive battens 204 x 4 x 9 cm 4 corner battens 90° 193 x 6 x 6 cm 4 side walls A/B 193 x 48 x 4 cm (1 with ventilation...
- Page 4 Assembly instructions fig. 1.1 screw 4 x 70 mm fig. 1.2...
- Page 5 screw 6 x 120 mm fig. 1.3 fig. 1.4 fig. 1.5...
- Page 6 Assembly instructions fig. 1.7 fig. 1.6 Electrical element on the right side - Ventilation on the left back side Electrical element on the left side - Ventilation on the right back side fig. 1.8 fig. 1.9...
- Page 7 Abb 1.10...
- Page 8 Assembly instructions Remove the transport batten from the door frame fig. 1.12 Multiclip Abb 1.14 Abb 1.13...
- Page 9 screw 4 x 70 mm fig. 1.16 fig. 1.17 fig..1.18...
- Page 10 Assembly instructions Bench supporting battens screw 5 x 70 mm fig..1.19 fig..1.20 4 pcs. screws 3 x 40 mm fig. 1.21...
- Page 11 fig. 1.22 fig. 1.23 screw 4 x 60 mm fig. 1.24 fig. 1.25...
- Page 12 Assembly instructions Screw the bench from the bottom- screw 4 x 70 mm fig. 1.26 fig. 1.29 fig. 1.27 screw 3 x 40 mm fig. 1.28 fig. 1.29...
- Page 13 fig. 1.30 fig. 1.31 screw 3 x 40 mm fig. 1.32...
- Page 14 Assembly instructions Silicone ring for hinge plates on both sides of the glass door fig. 1.33 fig. 1.34 screw 4 x 30 mm fig. 1.35 fig. 1.36...
- Page 15 Door seal from the glass door fig. 1.37 fig. 1.38 fig. 1.39 Put the sheet metal on the glass door fig. 1.40...
- Page 16 Assembly instructions Ring of silicone for screw hole in the glass door fig. 1.41 Inside fig. 1.42 Assembly of the glass door on the left or on the right side fig. 1.43...
- Page 17 screw 3 x 40 mm fig. 1.44 fig. 1.45...
- Page 18 Assembly instructions Start with the frontal border edge above the door fig. 1.46 screw 3 x 40 mm fig. 1.47...
- Page 19 Covering for the screw hole fig. 1.48 fig. 1.49...
- Page 20 Assembly instructions PLAN WELLFUN LARGE 206 x 206 x 204 cm A/B side walls Assembly of the cabin left or right...
- Page 21 GmbH | Division of Harvia Group | Oberregauer Straße 48, A-4844 Regau T +43 (0) 7672/277 20-567 | F -801 | info@sentiotec.com | www.sentiotec.com...
