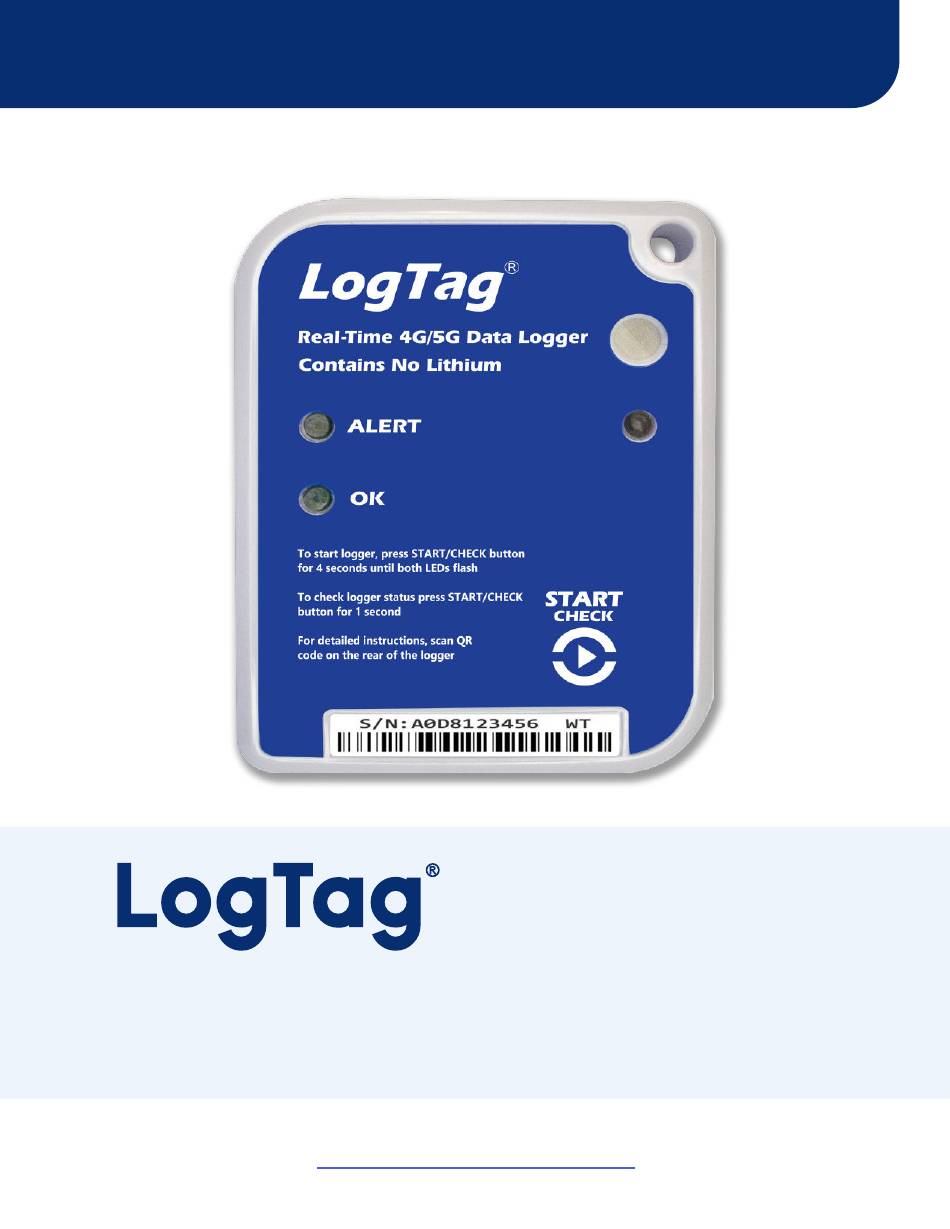

- Page 1 ® LogTag North America Inc. LT5GEO User Guide Version A - April 2025 www.logtag.com...
-
Page 2: Safety Information
Battery Life The batteries in the LT5GEO are designed to power the device for up to 112 days provided: • A strong signal is available where the LT5GEO is deployed. • The location and transmission interval is every 24 hours. - Page 3 Online cloud account, where it can be viewed, analyzed, shared with others, or downloaded for further analysis. Features The LogTag® LT5GEO features our familiar LogTag® family feel, with a user-friendly single-button operation and its LED status lights for at-a-glance monitoring.
-
Page 4: Airplane Mode
• A USB-C cable to charge the device. • A 5V/5W USB wall power supply. Power Supply The LT5GEO is charged via a USB-C cable and requires an external 5V USB power supply to ensure proper and stable charging of the logger. - Page 5 Charging the LT5GEO Before starting the logger, it must be fully charged to ensure maximum trip duration. The LT5GEO features a rechargeable NiMH battery that is charged via a USB-C cable. To charge the logger: • Open the protective cap from the bottom of the device.
- Page 6 • To edit notification recipients, select Edit Notifications. Step 8: Once the configuration is complete, select “Create Shipment” to complete the configuration Wizard. For a more in-depth guide, refer to page 51 of the LogTag Online User Guide or the LT5GEO Quick Start...
-
Page 7: During Recording
Online at intervals based on your estimated trip length. During Recording During the trip, the LT5GEO transmits recorded environmental data to the LogTag ® Online cloud via cellular connectivity, allowing you and your team to view it in real-time from anywhere, anytime. -
Page 8: Led Indicators
If the LT5GEO arrives at the destination and no LEDs light up when you press the Start/Check button, follow these steps: 1. Connect your LT5GEO to your USB charging cable. If the battery is very low, the red LED will blink slowly, and data transmission will not be immediately possible. Charge the unit until the red Alert LED lights up steadily. -
Page 9: Accessing The Files
9. The logger model corresponding to the serial number is displayed. 10. The current shipment status of the attached logger is shown. 11. The battery status provides an estimated remaining battery life. 12. The last transmitted column outlines when the logger last transmitted to LogTag ® Online. - Page 10 Chart The Chart tab provides an interactive temperature and humidity graph for the logger(s) attached to a shipment, similar to the LogTag ® Drive and Location Chart. 1. The shipment name is displayed as the chart title. 2. Click the “From” and “To” boxes to choose a start and end date to filter data within a specific range.
- Page 11 Report (Shipment Summary) The Logger Report provides a trip-format statistics summary of temperature and humidity data for the selected date and time range. You can preview or download the report as a PDF. If the shipment contains multiple loggers, the report will display temperature statistics for each logger with recorded data.
- Page 12 Report (Logger Data) The Logger Data tab displays all logger temperature and humidity data, along with recorded events, in a table format based on the selected date and time range. 1. Select the “From” and ‘To” date and time using the calendar date selector to filter readings taken within a specific range.
- Page 13 To learn more about LogTag Online and its features, visit the LogTag Online website: https://logtagrecorders.com/logtag-online/ For a more in-depth guide on how to use the platform, check out the LogTag ® Online User Guide: https://logtagrecorders.com/app/uploads/LogTag-Online-User-Guide.pdf For support inquiries, contact support@logtagrecorders.com.
-
Page 14: Technical Specifications
1 m/s^2 Recording Capacity 16,320 local logger memory. 1 million recordings with LogTag® Online Transmission Interval 20 minutes-24 hours, depending on trip duration set through LogTag® Online Uploads immediately when alarm is triggered, regardless of transmission interval. Sampling Interval 10 minutes...
