Summary of Contents for LogTag USRIC-8

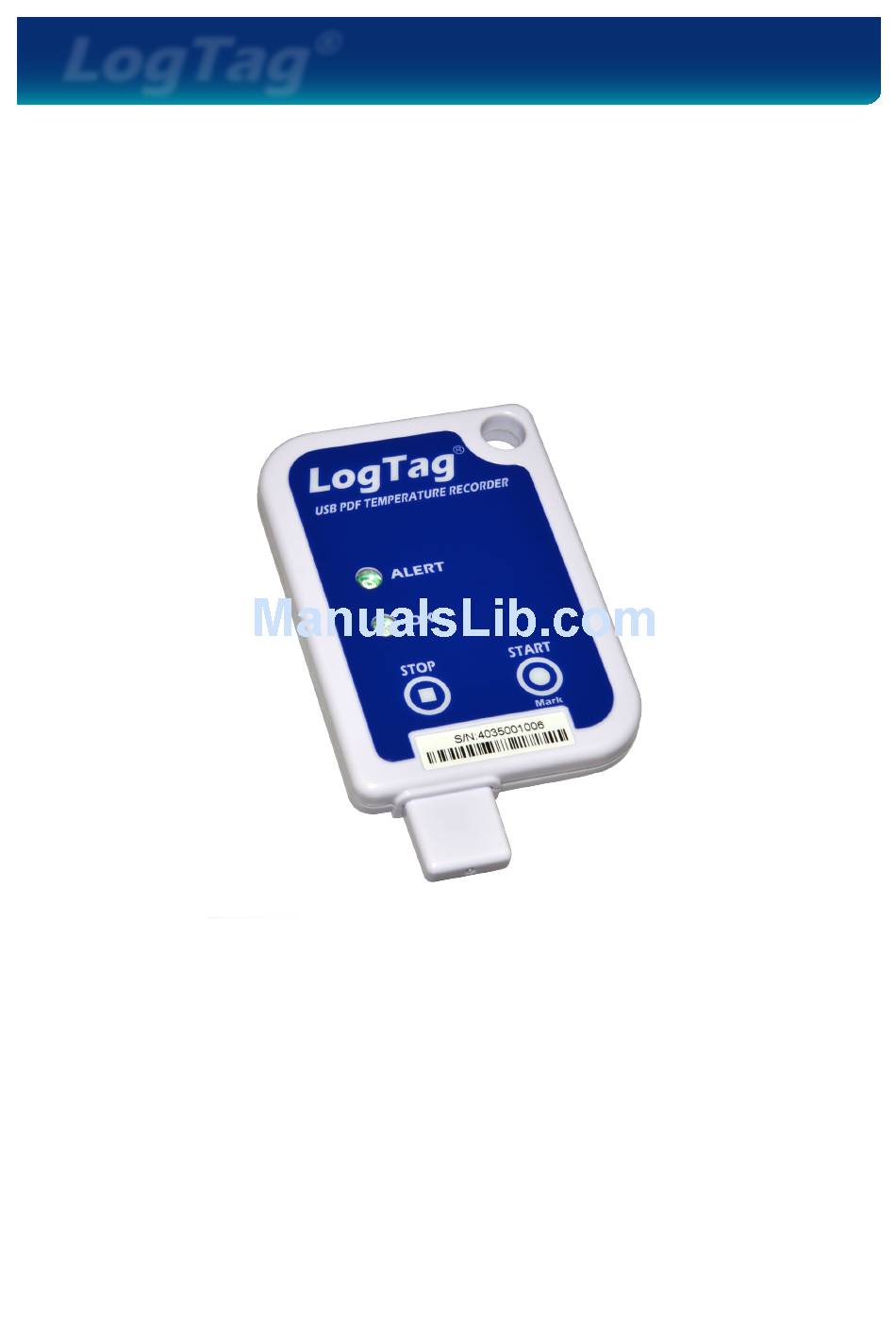

- Page 1 LogTag ® TEMPERATURE RECORDER USRIC-8 USB PDF Temperature Recorder Product User Guide Revision 1.6 Friday, 4. September 2015...
-
Page 2: Table Of Contents
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Page 2 of 11 USRIC-8 Product User Guide, document revision 1.6, 20150904 - © Copyright 2015, LogTag Recorders Ltd. -
Page 3: Safety Information
• ...the device is stored and operated according to LogTag Recorders’ recommendations. Disclaimer The USRIC-8 monitors temperature exposure and not the quality of the goods it accompanies. Its purpose is to signal if product quality evaluation/testing is required. Typographical conventions... -
Page 4: Introduction
Can be used to stop the unit. 1 Depending on the configuration, the USRIC-8 may produce any of the supported file types *.ltd, *.csv or *.pdf, or none at all if file generation is disabled when configuring the unit. -
Page 5: Standard Configuration Options
You cannot combine a date/time start with pre-start readings or the start delay function. If you configure the USRIC-8 for a time start, but you leave it plugged into the USB port until after the configured time has passed, the unit will start as soon as it is unplugged. -
Page 6: Marking A Reading With An Inspection Mark
Unplugging Plugging the USRIC-8 into a USB port You can unplug a USRIC-8 at any time; there is no need to stop the device via the shortcut menu in the notification area on the taskbar. What happens when you plug the USRIC-8 into a USB port... -
Page 7: Tips And Tricks
LED every second Ready for re-flash The red LED is on • A permanently lit red LED light indicates the USRIC-8 is ready to receive new firmware. permanently Special software is required to upload new firmware to the USRIC-8. -
Page 8: Interpreting The Data
Here you can see the settings that were uploaded during the configuration of the time it would otherwise have taken a reading. USRIC-8. It shows how the recorder was started, if a start delay was active and the Alarm limits interval used for the readings. -
Page 9: Getting Help
Getting help File information The information from the report page is repeated here. If after studying the ‘USRIC-8 Quick Start Guide’ you still need Data list further information, please visit the support section of the LogTag The Data list shows a single row for each recorded reading, along with the with date,... -
Page 10: Usric-8 Factory Presets
USRIC-8 Factory Presets LogTag® USRIC-8 recorders can be client configured using LogTag Analyzer. For an out-of-box solution they can also be ordered in volume, pre-configured with a factory profile ready for starting. If a default configuration does not suit, customers can compile their own profile by specifying the parameters in the table below when ordering. -
Page 11: Technical Specifications
Power source CR2032 3V non-rechargeable, non-replaceable Lithium battery– Battery life Shelf life of up to two years before configuration. Six months operating life from the time of configuration. LogTag® is a registered trademark of LogTag Recorders Ltd. Page 11 of 11...
