Summary of Contents for LogTag VFC400-USB

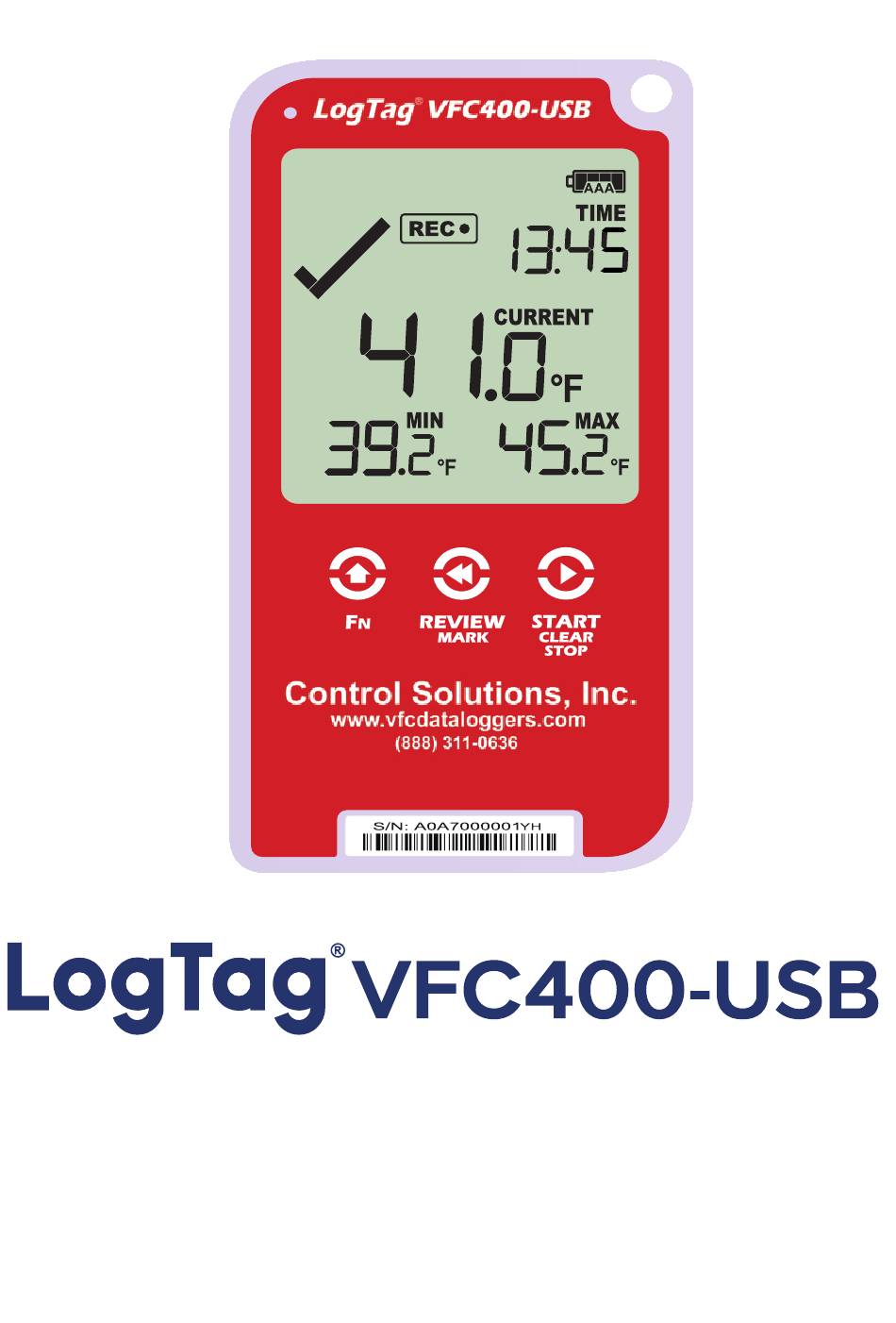

- Page 1 Quickstart Guide Version A www.logtagrecorders.com...
-
Page 2: Table Of Contents
Quickstart Guide Contents What’s included Battery Installation Downloading Control Solutions VTMC Confi guring your VFC400-USB Installing the Wall Mount Starting your VFC400-USB Downloading Results... -
Page 3: What's Included
What’s included Please check you have each of the items shown below before continuing with setting up your VFC400-USB. Glycol Buffer with USB Cable VFC400-USB Acrylic Stand Installation & External Probe 2x AAA Battery Mounting Kit Wall mount bracket (included) -
Page 4: Battery Installation
USB socket. 1. You will need a small phillips (cross-shaped) screwdriver to remove the cover on the back of the VFC400-USB case. 2. Once you have removed the battery cover, install the 2x AAA batteries provided in the product. -
Page 5: Downloading Control Solutions Vtmc
‘Check Internet for update’ in the ‘Help’ menu. Warning: Please ensure no other LogTag software is currently running on your computer before running the Analyzer software. Page 5... -
Page 6: Confi Guring Your Vfc400-Usb
1. Open Control Solutions VTMC 2. Click ‘Configure’ from the ‘LogTag’ menu or click the ‘Wizard’ icon 3. Adjust your logger configuration settings as required. For more information on configuration settings, please refer to... -
Page 7: Installing The Wall Mount
Wall Mount. Before sticking on the Wall Mount, make sure the sensor cable and the USB cable from the VFC400-USB can both reach the device comfortably without obstruction or at risk of being accidentally disconnected if knocked. -
Page 8: Starting Your Vfc400-Usb
Press and hold the START/ Clear/Stop button. STARTING will appear along with READY. Release the button once READY disappears. The VFC400-USB now records temperature data. The Logger will not start if: • You release the button before READY disappears. -
Page 9: Downloading Results
A new device drive will appear in file explorer with the files containing the recorded data. Alternatively, you can follow the steps below: 1. Open Control Solutions VTMC 2. Click ‘LogTag’ from the ‘Download’ menu or press ‘F4’ 3. Click ‘Close’ to exit the download page Page 9...
