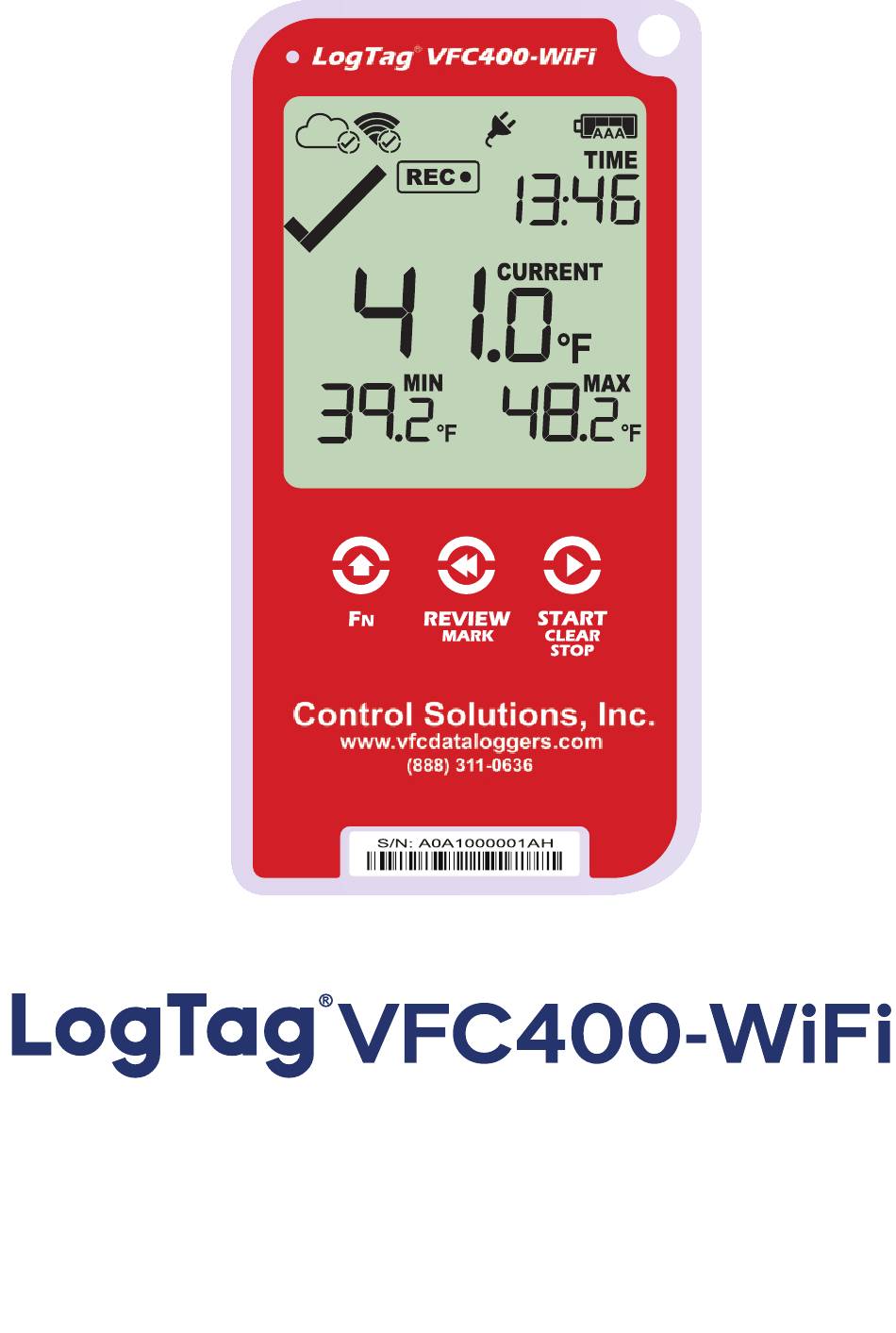

LogTag VFC400-WiFi Quick Start Manual

LogTag VFC400-WiFi Quick Start Manual

Advertisement

Quickstart Guide
Version A
www.vfcdataloggers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFC400-WiFi and is the answer not in the manual?

Questions and answers

Summary of Contents for LogTag VFC400-WiFi

  • Page 1 Quickstart Guide Version A www.vfcdataloggers.com...
  • Page 2: Table Of Contents

    Quickstart Guide Contents What's Included Battery Installation Downloading Control Solutions VTMC Confi guring your VFC400-WiFi Downloading the Connection Wizard Running the Connection Wizard Connecting to your WiFi Network LogTag Online Creating a Location Installing the Wall Mount Starting your VFC400-WiFi...
  • Page 3: What's Included

    What's Included Please check you have each of the items shown below before continuing with setting up your VFC400-WiFi. USB Cable AC Adaptor VFC400-WiFi Glycol Buffer with Acrylic Stand Installation & Mounting External Probe 2x AAA Battery Wall mount bracket...
  • Page 4: Battery Installation

    1. You will need a small phillips (cross-shaped) screwdriver to remove the cover on the back of the VFC400-WiFi case. 2. Once you have removed the battery cover, install the 2 AAA batteries provided in the product. Take note of the direction each battery must be installed.
  • Page 5: Downloading Control Solutions Vtmc

    ‘Check Internet for update’ in the ‘Help’ menu. Warning: Please ensure no other LogTag software is currently running on your computer before running the VTMC software. Page 5...
  • Page 6: Confi Guring Your Vfc400-Wifi

    1. Open Control Solutions VTMC 2. Click ‘Configure’ from the ‘LogTag’ menu or click the ‘Wizard’ icon 3. Adjust your logger configuration settings as required. For more information on configuration settings, please refer to...
  • Page 7: Downloading The Connection Wizard

    The unit requires you to connect it to your WiFi Network. To do that, we have an easy tool for you to use called the LogTag Online Connection Wizard. To download the LogTag Online Connection Wizard, please open your browser and type the link below to begin the download: https://www.vfcdataloggers.com/content/Software/connectionwizard.exe...
  • Page 8: Running The Connection Wizard

    “Next”. You will be asked to sign in to your LogTag Online account. If you do not have an account, click the link below or alternatively, open your browser, type the following link into the address bar and follow the on-screen instructions.
  • Page 9: Connecting To Your Wifi Network

    Connecting to your WiFi Network Type your LogTag Online account details and click “Sign In”, followed by “Next”. The Wizard will now scan for any connected LogTag devices. If the scan doesn't find any devices, double-check the device is plugged in to your computer with the USB cable provided and click “Scan...
  • Page 10 1. Click the Network Name arrow to see nearby Wireless Networks options. Note: This process can take up to 2 minutes, please wait whilst the network scan is in progress. 2. Once you have selected your WiFi Network from the list, type the password for the network.
  • Page 11 WiFi network and to LogTag Online. 1. Once the Wizard displays “Connection Succeeded”, click “Next” to complete the Wizard. 2. Click “Close” to close the Wizard or click the ‘LogTag Online Sign In page’ link to take you to LogTag Online website. Page 11...
  • Page 12: Logtag Online

    LogTag Online LogTag Online is a secure online service that stores the data recorded from your logger against your account. Signing in to your LogTag Online Account Open your browser and navigate to: https://logtagonline.com 1. Type your Email and Password 2.
  • Page 13: Creating A Location

    Locations page. For more information on completing the fields, or to edit/delete Location please refer to the LogTag Online user guide. Tip: You can pin/unpin a Location to your dashboard by clicking the small “plus/minus” icon in the top right corner to show real-time...
  • Page 14: Installing The Wall Mount

    Wall Mount. Before sticking on the Wall Mount, make sure the sensor cable and the USB cable from the VFC400-WiFi can both reach the device comfortably without obstruction or at risk of being accidentally disconnected if knocked.
  • Page 15: Starting Your Vfc400-Wifi

    Starting your VFC400-WiFi Press and hold the START/ Clear/Stop button. STARTING will appear along with READY. Release the button once READY disappears. The VFC400-WiFi now records temperature data. The Logger will not start if you: • Release the button before READY disappears.
