LogTag LT5GEO Quick Start Manual

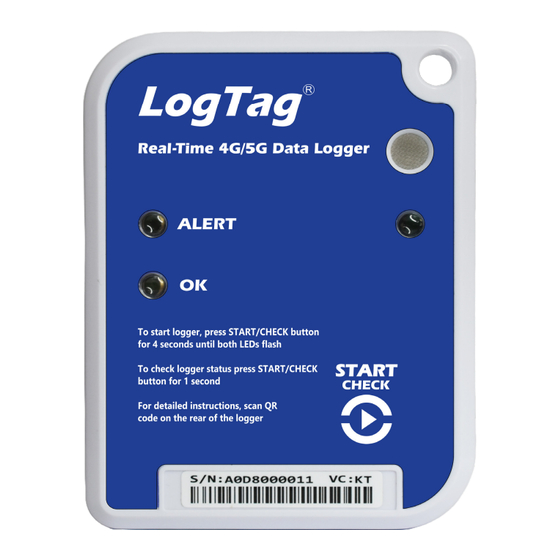

Real-time 4g/5g data logger
Hide thumbs Also See for LT5GEO:
Table of Contents

Advertisement

Quick Links

Download this manual
LT5GEO
Quick Start Guide
Version A
www.logtagrecorders.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT5GEO and is the answer not in the manual?

Questions and answers

Related Manuals for LogTag LT5GEO

Summary of Contents for LogTag LT5GEO

  • Page 1 LT5GEO Quick Start Guide Version A www.logtagrecorders.com Page 1...

  • Page 2: Table Of Contents

    Quick start Guide Contents Operation Charging the Logger Setting up with LogTag Online Starting your LT5GEO During recording Setting up an LT5GEO Creating a Transit Account Creating a shipment Accessing shipment data Completing the trip Troubleshooting Page 2...

  • Page 3: Operation

    Alert LED (red) lights for 3 seconds The logger’s battery is partially charged. The logger can be started, but will not transmit cellular data to LogTag Online and may not have sufficient battery left to cover the intended trip length.

  • Page 4: Charging The Logger

    The logger is now ready for use. Setting up with LogTag Online 3) Before starting the logger register it in LogTag Online to activate SIM card and apply desired configuration to the logger. Unwanted readings can be recorded to LogTag Online if logger is added to the shipment after it started, for example start delay settings may not apply.

  • Page 5: Starting Your Lt5Geo

    LEDs flash in an alternating pattern. The logger will: • Connect to LogTag Online and request any updates to its configuration data • Record environmental and positioning data and transmit this to LogTag Online...

  • Page 6: During Recording

    During recording 5) The LT5GEO will record the following environmental data during the trip: • Temperature • Humidity • Light level • Shock In addition, the logger establishes its position via GPS if a signal can be established, or via cell site triangulation when cellular coverage is available.

  • Page 7: Setting Up An Lt5Geo

    Setting up an LT5GEO in LogTag Online What is LogTag Online Transit? LogTag Online (LTO) is a Cloud-based online environmental management system providing alarm notifications, compliance, record storage and reporting functions. A transit account allows you to consolidate the data for one or multiple loggers into an easily identifiable shipment.

  • Page 8: Creating A Transit Account

    Creating a Transit Account 2) Follow the prompted steps to create a LogTag Online account. To have access to shipments you will need to change the team profile to “Transit User”. If you cannot see “Shipments” on the main menu, you will need to click on your profile and navigate to “Manage...

  • Page 9: Creating A Shipment

    Creating a shipment 3) On the “Shipment” tab, click on “Shipment Wizard”. Give the shipment a name, origin, destination, and estimated journey time. To enable the geo-fencing features, enter an address and mark out an area boundary. You can create new geo-location and use it as Origin or Destination or select from list of previously created one.
  • Page 10 Follow the wizard directions to input the logger’s serial number into the shipment. If you want to be notified when logger data breaches t e m p e r a t u re / h u m i d i t y thresholds or experience light or shock affect apply profile to logger.

  • Page 11: Accessing Shipment Data

    Accessing shipment data 4) Clicking on an individual shipment will allow you to see the following information. Shipment Info An overview of the shipment information and a button to set the shipment as delivered manually. Chart Live temperature and humidity readings that can be exported to CSV file Report Generate a PDF logger report with sensor values and trip statistics.
  • Page 12 Page 12...

  • Page 13: Completing The Trip

    This will transmit any data not yet Start/Check available in LogTag Online. If you have access to the shipment in LogTag Online, finalize the shipment so no erroneous data is transmitted, as the logger will continue to transmit until it receives a confirmation message from LogTag Online.

  • Page 14: Troubleshooting

    Troubleshooting If the LT5GEO arrives at the destination, and no LEDs light when you press the Start/Check button for 1 sec, do the following: 1. Charge the unit until the red Alert LED lights up steadily (if the battery is very low, the red LED will blink slowly, and you will not be able to transmit the data immediately).
