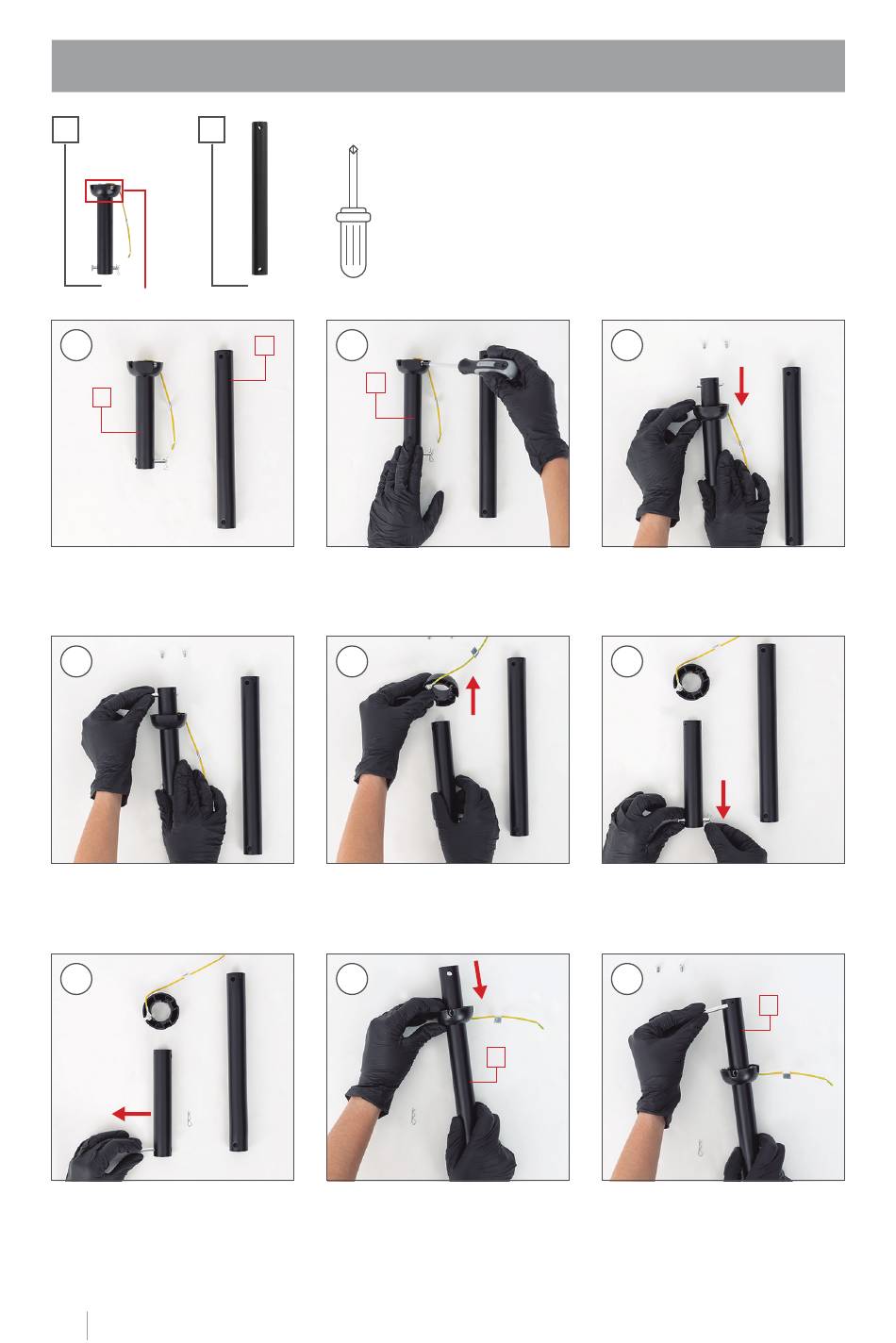

Create Wind Sail Assembly Manual page 10

I J
+
TILT SUPPORT
1
I
With the help of a screwdriver, remove the two screws from
the tilt bracket of the bar I.
4
Remove the pin from the tilt
bracket.
7
Carefully pull the pin out of
the bar I.
10 E NGL I SH
C H OICE O F H EI G HT
Before you start, choose the desired height.
(10cm +/-)
You will have to choose between the height of piec-
es H or I.
+
· If you choose the height of piece I, you should fol-
low the instructions below.
· If you choose the height of piece H, go directly to
step 2 (page 11).
2
J
I
5
Remove the tilt support
from the bar I.
8
Attach the tilt support to
the bar J.
3
Slide the tilt bracket down.
6
Remove the locking piece
from the pin of bar I.
9
J
Place the tilt support pin
into the bar J.
J
