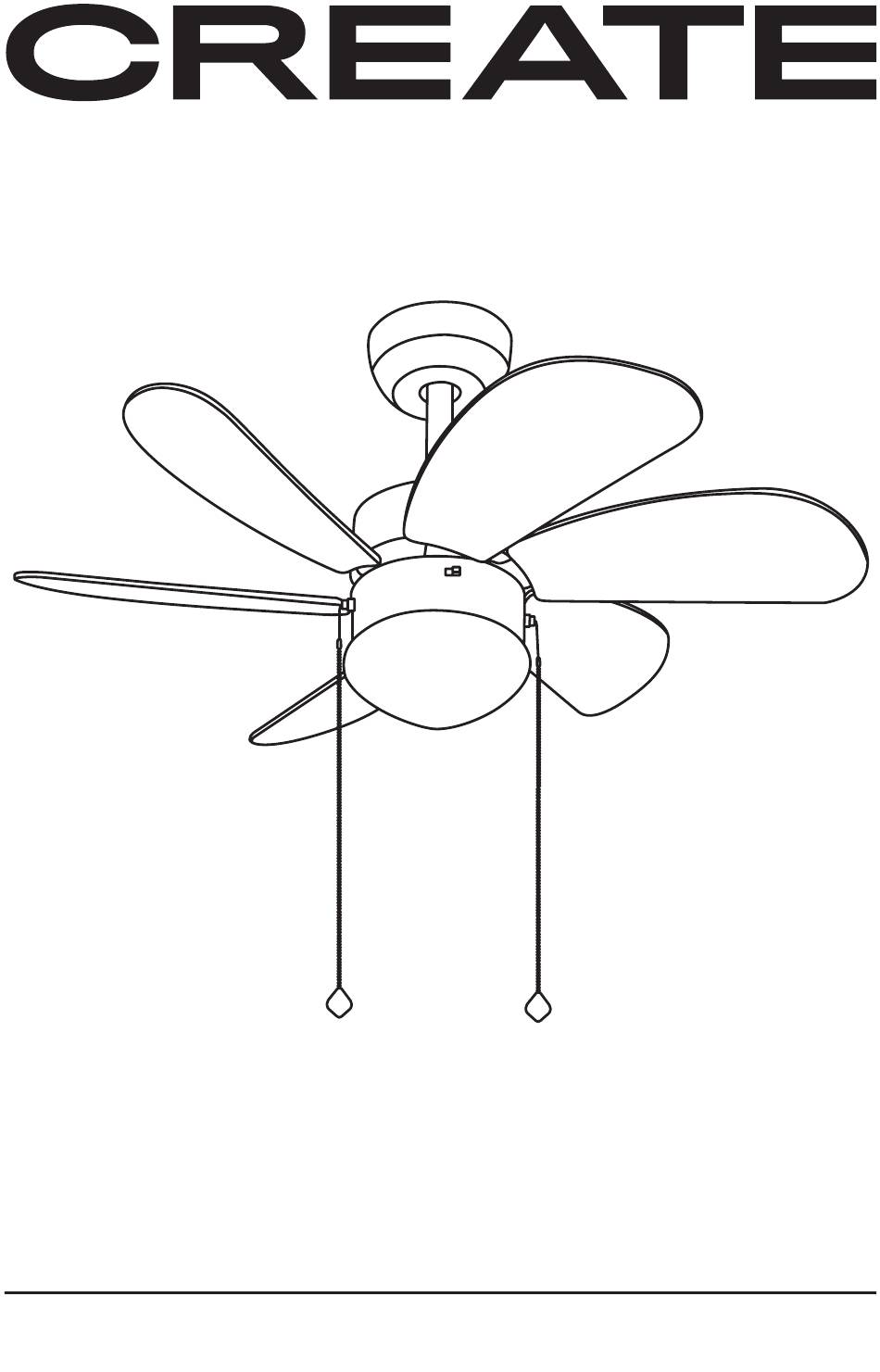

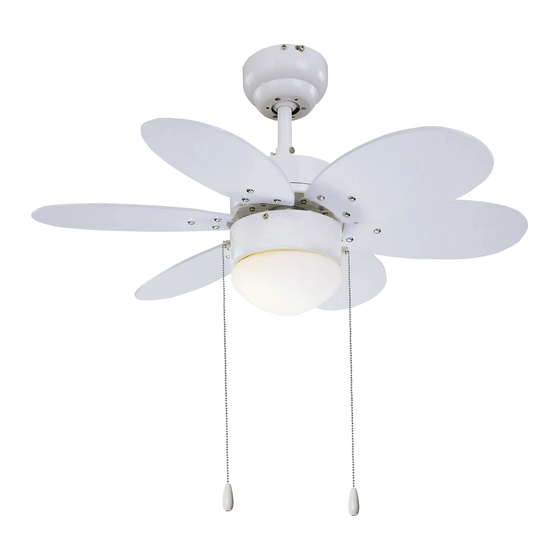

- Page 1 Wind Easy Assembly manual...
- Page 3 To download this user guide in your language, visit our website: www.create-store.com/uk/ Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es/ Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt/ Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr/...
- Page 4 INDE X BOX C O N TEN TS ST E P 1. WO O D CEIL IN G ST E P 1. FALSE C EI L IN G ST E P 1. C O N CR ETE CEIL IN G ST E P 2.
- Page 5 BOX CONTENTS BLADE HITCH (x6) CHAIN (x2) FLORON EMBELLISHER BLADES TULIPA THE MOTOR MOTOR REVERSIBLE (x6) SCREWS FOR SCREWS FOR MEDIUM BLADE HITCH (x12) BLADES (x18) MOUNTING SHANK (1) EXPANSION SCREWS (2) WOOD SCREWS SPLICE TERMINALS BALANCING KIT ATTENTION! Before starting the as- sembly, remember to disconnect the light from the electrical panel so as not to suffer an electric shock.
- Page 6 STEP 1. WOOD CEILING PARTS AND TOOLS NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO CEILING TYPE Mark with a pencil the 4 holes of piece K If necessary, depending on the type of on the ceiling. ceiling, you will need to use a drill to make the holes in the wood.
- Page 7 STEP 1. FALSE CEILING PARTS AND TOOLS NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes using piece K as a guide. responding holes.
- Page 8 STEP 1. CONCRETE CEILING PARTS AND TOOLS NOT INCLUDED (1) EXPANSION SCREWS Disassemble part L separating it into pieces. Ø8 mm Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes of piece K, using the same piece responding holes with an Ø8 mm drill bit.
- Page 9 Place part K matching its holes with the Insert pieces L2, L3 and subsequently the screws L1. Make sure the ceiling wires are nut L4. placed on one side of piece K. Tighten piece L4 with a # 10 wrench, until Make sure that piece K is perfectly hooked you feel that it is well fixed.
- Page 10 STEP 2. MOUNTING THE MAIN BODY Remove pin from part H. Enter the bar H through the hole in the part A as the pictures show. Insert the part F As shown Once the pieces are inserted A and F, you must insert the in the picture.
- Page 11 With the help of a screw- Insert the bar at the top of Make sure no wires are driver, remove the 2 screws the piece G. pinched. from the top of the piece G. Once the bar is inserted, Place the locking piece on Then replace place the pin of the piece H...
- Page 12 Align the hook of the blades with the holes located in the Then align the hole in the hole of the piece G. Make sure that the inclination of the part motor to screw the part C. C face down as shown in the picture. Make sure the part C is se- Repeat the same step with the rest of the blade hooks (x6) curely attached.
- Page 13 STEP 3. ELECTRIC CONNECTION Place the seatpost camber bracket into the slot on the part K so that it is attached to the ceiling. Remember to put the notch on the black top back so that the piece fits well. Before continuing, check Connect the part ground wire H to the motor (G).
- Page 14 Connect the Phase wire (F) with the black wire (motor) and the blue wire (lamp). Once con- nected, place the part M screwing it in until it is well attached. Once the cables are secure, connect the white (Neutral) cable from the part G to the Neutral cable of your electrical installation, joining them in the terminal strip of the part K with the help of a flat screwdriver.
- Page 15 STEP 4. MOUNTING THE BLADES (x6) REVERSIBLE BLADES Remember that the blades are reversible, choose the color that you like best and put it facing downwards, then place the blade D under the blade hook until the holes fit. Place the thread on the top of the blade hitch and screw in the screw from the bottom of the blade until it is slightly snug.
- Page 16 STEP 5. PLACEMENT OF BULB AND TULIP LIGHT BULB NOT INCLUDED Place a compatible bulb in the socket and screw it in clockwise until it is properly seated. Place the part E on the fan by fitting it into the motor and fix it by turning clockwise. Do not forget to check that the part E fits well.
- Page 17 STEP 6. ASSEMBLING THE CHAINS Hook the pin on the end of the chain into the slot and pull the chain out to lock it. Later, you can connect the electricity and enjoy your new fan. ENGLISH...
- Page 18 BLADE BALANCING KIT Your ceiling fan may have blade swing problems when in operation due to irregularities in the blades or brackets. Also, incorrect system mounting or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
