Using the Conversion Kit

1

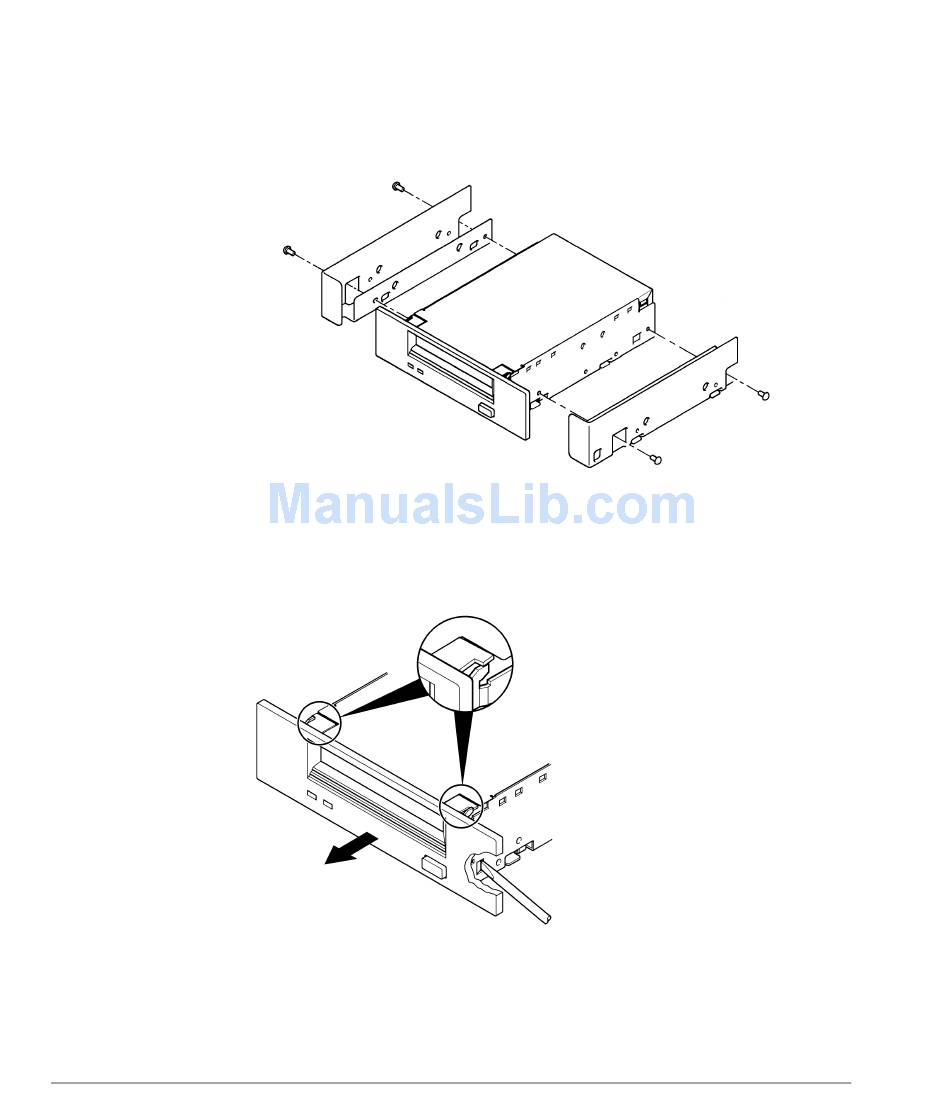

Figure 1.4 Removing the drive rails prior to installation in a 3½-inch bay
2
Figure 1.5 Removing the 5¼-inch panel
1-12
Unscrew the four screws and remove the rails from the tape drive.
Use a screwdriver to release the 5¼-inch front panel from the tape drive
and remove it. Fit the 3½-inch front panel and push firmly until the
panel clicks into place.
Note: Some drives have
clips on the sides of the
unit.
