Step 4: Attach Mounting Rails

If your computer requires special rails or other hardware to install the tape
drive, mount them on the tape drive in this step.
If your computer does not require special mounting hardware, proceed to
step 5 on page 1-16 now.
1 Attach the appropriate rails.
• If you are installing in an HP NetServer L-series, place the tape drive in
• If you are installing in an HP NetServer E-series that requires mounting
• If you are installing in a Compaq computer that requires mounting rails,
• If you are installing in a IBM or Dell computer, refer to our World Wide
• If your computer uses other mounting hardware, attach it to the tape
2 Secure the tape drive in the mounting tray using the four screws supplied
with the rail kit.

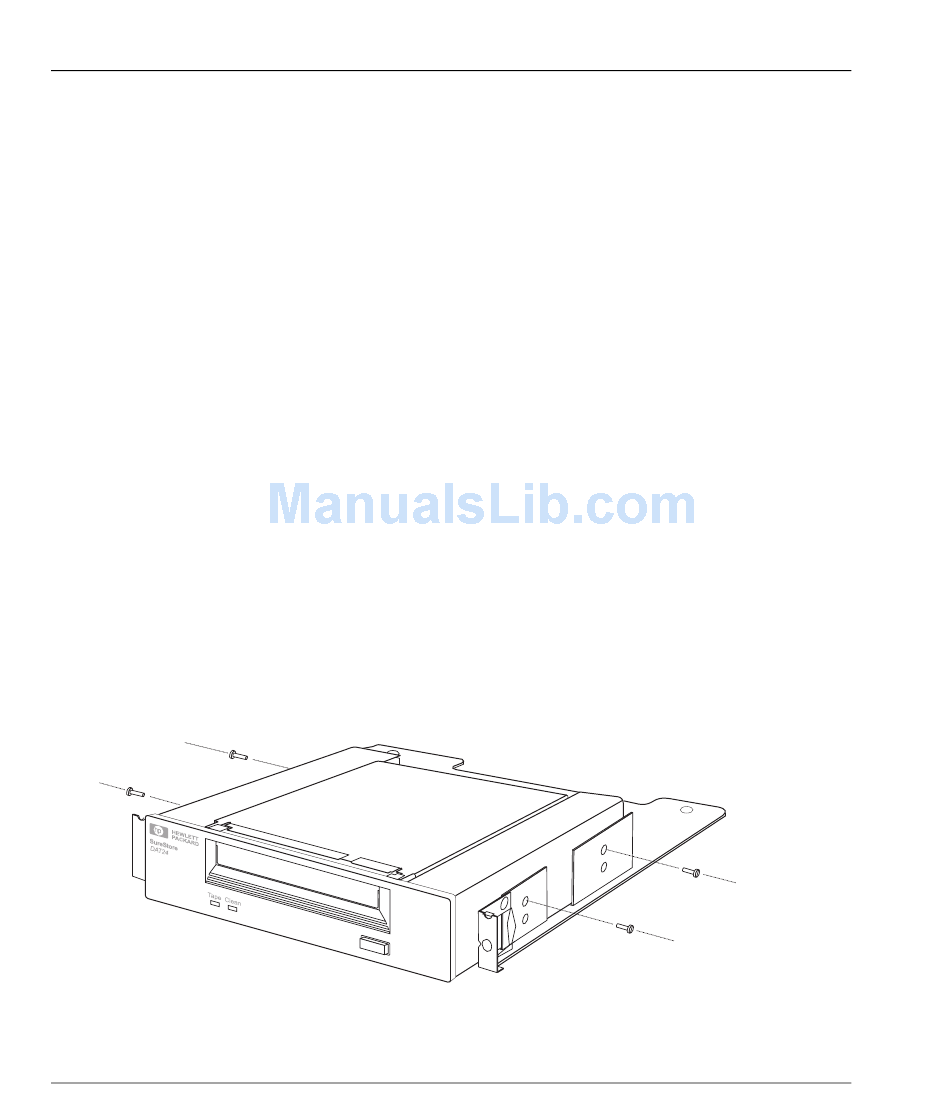

Figure 1.7 Attaching the tape drive to the HP NetServer L-series mounting tray
1-14
the mounting tray supplied, as shown in figure 1.7.
rails, Vectra, Kayak or Brio, fasten the rails to the tape drive using the
four screws supplied, as shown in figure 1.8.
fasten the rails to the tape drive using the four screws supplied, as
shown in figure 1.9. Compaq rails are provided with DAT8i, DAT24i and
DAT40i models only.
Web site for further instructions: http://www.hp.com/go/connect.
drive as directed in your computer documentation.
Use the four
screws
provided with
the rail kit
