wanbo TT Manual

Also See for TT:

User manual (47 pages)

Manual (34 pages)

Table of Contents

Contents

1 Accompanying Accessories
2 Appearance
3 Basic Parameters
4 Projection
5 Remote Control
6 Projection Distance Reference
7 Cleaning Method
8 Poisonous and Harmful Substance, Element Name and Content
9 Important Safety Precautions
10 Statement
11 Documents / Resources
- 11.1 Download manual

wanbo TT Manual

Accompanying Accessories

Remote control × 1
Adapter × 1
Power cord × 1

Appearance

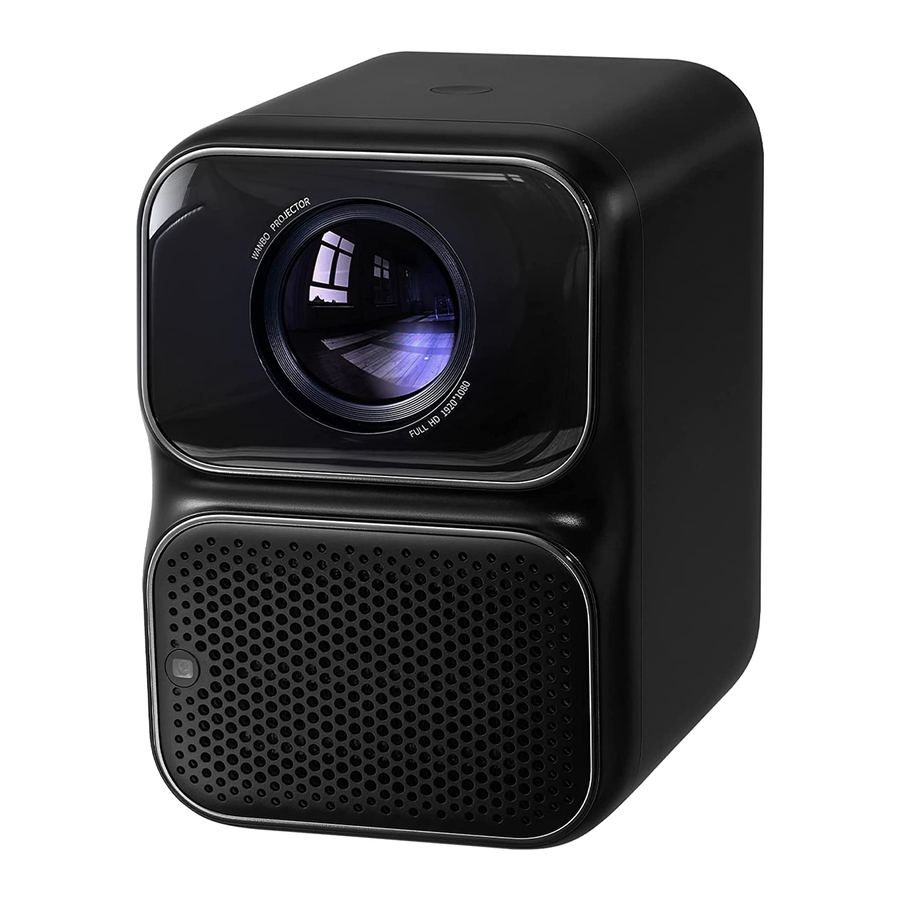

Overview

Basic Parameters

Product Name	Wanbo Projector	Display Principle	LCD
Light Source	LED	Net Weight	1.6 kg
Operation Mode	Remote Control	Horn	5W*2
Output Port	Headphone Audio Output	Working Environment	0~40
Accessory	User Manual / Remote	Input Port	HDMI / USB
Accessory	Control / Power Cord / Adapter	Machine Size	125.9179.6184 mm

Projection

Remote Control

Projection Distance Reference

Projection size (under status of no keystone correction / Inch)	Screen length * width (m)	Lens ~ screen (m)
40	0.89*0.50	1.11
56	1.24*0.70	1.56
66	1.46*0.82	1.83
86	1.90*1.07	2.39
100	2.21*1.25	2.78
120	2.66*1.49	3.33

information Note: Projection size and distance are calculated according to projection ratio, which may have a deviation and subject to actual status.

Cleaning Method

Please make sure the power plug is unplugged before cleaning.

Do not use pesticides or other volatile chemicals on the projector or lens. Do not let rubber or vinyl products contacts the projector for a long time, which will damage the coating and make it peeled off.

Clean the Projector

Wipe with a soft, dry cotton cloth. If it's dirtied seriously, we can wipe with soft cloth that stuck with diluted neutral detergent, then dry with a clean and dry cloth. Please pay more attention if used with chemical fiber cloth.
Don't use thinner, benzene or any other solvents to avoid quality reduction or coating peeling off etc.
A brush can be inserted into the front of the vacuum cleaner to remove dirt inside the vents. Please don't use vacuum cleaner with no connector, or clean with vents directly.
Please don't scrape the machine with nails or any other hard objects so as to avoid scratches.

Lens Cleaning

Clean lens with the same method for camera lens: please use professional blow dryer or cleaning paper for glasses, ensure lens are not scratched.

Inlet and Outlet Dust Cleaning

Dust in the inlet and outlet will prevent ventilation and increase the internal temperature, which will cause defect.
Disconnect power line after turn off the projector.
Clean the exterior with an electric vacuum cleaner, please install brush head adapter on the vacuum cleaner first. Kindly take note: don't use vacuum cleaner with no connector or brush.

Poisonous and Harmful Substance, Element Name and Content

Part name	Hazardous substances
Part name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr(VI))	Polybro minated Biphenyls (PBB)	Polybro minated Diphenyl Ethers (PBDE)
Shell	O	O	O	O	O	O
Optical Machine	O	O	O	O	O	O
Circuit Board	O	O	O	O	O	O
Fan	O	O	O	O	O	O
Other Wires	X	O	O	O	O	O
Remote Control	O	O	O	O	O	O
Power Supply	O	O	O	O	O	O
O: Content of the hazardous substance in all homogeneous materials of the component is under the limits of SJ/T11363-2006. X: Content of the hazardous substance exceeds the limit requirements specified by SJ/T11363-2006 in at least one homogeneous material of the component. The components labeled "X" " have no substitutive due to global technology development limits. Circuit board assembly *: including printed circuit board and its components, electronic components, etc. The number in the logo represents the normal environmental service life of the product. (Battery Excluded)

Important Safety Precautions

To avoid dangerous or illegal operation, please read through the following precautions before using this device.
In order to provide the device with stable power supply, select the power supply line that conforms to the national electricity standard and the power sockets for which protections measures are taken, such as grounding.
Use the type of power supply indicated on the device.
Do not unpack and disassemble the machine by yourself, otherwise we will not undertake any free warranty service.
To avoid eyes injury, do not look directly at the projector lens when this device is working.
Do not place the device on any item that may block the ventilation openings, such as cloth, blankets, etc.
Since this device is not waterproof, avoid water drenching or splashing, and do not place any item containing liquid next to the device, such as the vases, water cups, etc.
To prevent electric shock, do not expose the device to rain or water.
Unplug the power cord if the device will not be used for a long time.
Transport the device with the original foam.
Do not try to repair the device by yourself, please contact the dealer if required.
Use the product in the environment within temperature of 5°-35°, and do not use in a place over 2,000 meters sea level.

information Note: In order to avoid damage to our eyes, please don't look at the lens directly when it's working!!!

Statement

Statement regarding intellectual property: Both the hardware design and software program of this product are c opyrighted. Reproduction of the product and manual contents without our authorization will bear corresponding legal responsibility.
This manual is for reference only, the final functions are subject to the actual functions of the product received.
All pictures herein are for reference only, which shall be subject to the actual product. We reserve the right of improvement or change on product appearance and design under no prior notice.

Only for non-tropical climate conditional use. Non-professionals are prohibited from unauthorized disassembly to avoid electric shock. Don't look at the lens directly when it's working. Do not block the ventilation holes.
