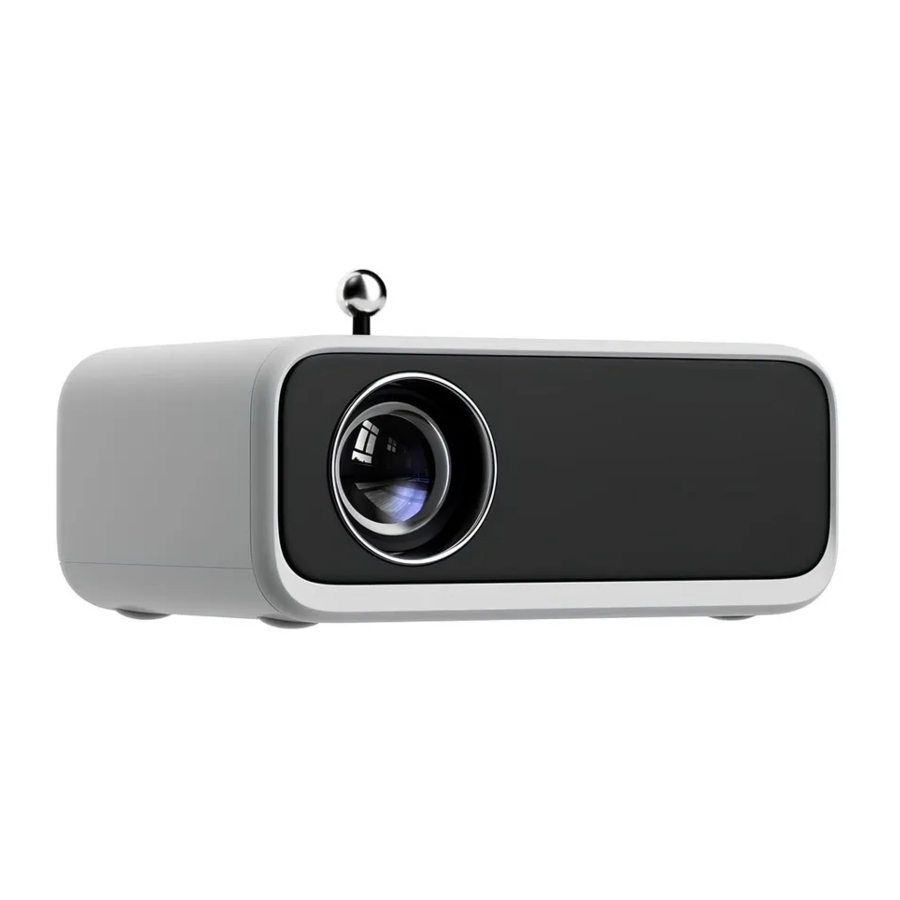

Projector Overview
Multimedia Supported Files
| Image Format | JPG/PNG/BMP/JPEG |
| Video Format | MP4/MKV/MOV/WMV/RMVB/RM/AVI/FLV/TRP/VOB 3GP/DIVX/TP/TS/MPG/M2TS/F4V/DAT |
| Audio Format | MP3/WAV/FLAC/WMA/M4A |
| File Format | TXT |
The projector does not support Dolby audio decoding.
Packing List
Projector ×1
Remote Control ×1
Power adaptor ×1
User Manual ×1
Remote Control
Specification
| Model | LCD projector | Image system | LCD |
| Lamp | LED | Input voltage | DC15V Adaptor |
| Language | Multilingual | Size | 165*122*86mm |
| Aspect Ratio | 16:9/4:3 | Working temp | 0~35℃ |
| Weight | 0.6kg | Input voltage | HDMI/USB/AV |
| Operation mode | Manual/Remote control | Output | Headphone |
Focus Setting
Image focusing
Place the projector lens perpendicularly to the projection screen or curtain wall, and adjust the focus dial until the image is clear, During the focusing process, you can open images to help adjustment until it reaches the best effect.
How to Select Source
Step 1: Select the source you want in the main interface, such as HDMl, AV, etc.
Step 2: Press OK button on the remote control to enter into the corresponding source interface.
Note: When the projector is under condition of no signal, please press the source button on the remote control to select the home page or other source.
How to Play Multimedia
Step 1: Select "USB" in the main interface.
Step 2: After entering the interface, select the files you want.
How to Set the Menu
Select Setup in the main interface, Firstly, press left/right keys to select sub-menu, Secondly, set up the mode you need, finally press OK key to confirm.
Submenu:
PICTURE: Picture Mode / Contrast / Brightness / Color / Tint / Sharpness / Focus / Color Temperature / Noise Reduction.
SOUND: Sound Mode / Treble / Bass.
OPTION: OSD Language / Aspect Ratio / Projection Mode / Factory Reset / Software Upgrade / Version.
Standard Setting
When installing, place the projector on a solid, stable countertop. Ventilation around the machine should be good. Do not cover or block the vents. There should be no obstructions within 30cm of the vents.
| Aspect ratio | 16:9 |
| Picture size(inch) | Projection distance(m) |
| 40" | 1.35 |
| 50" | 1.68 |
| 70" | 2.27 |
| 100" | 3.16 |
| 120" | 3.74 |
Note: Above datas are for reference only, datas will be subject to real measurement.
Poisonous and harmful substance, Element name and content
| Part name | Hazardous substances | |||||
| Lead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent chromium (Cr(VI)) | Polybro minated Biphenyls (PBB) | Polybro minated Diphenyl Ethers (PBDE) | |
| Shell | O | O | O | O | O | O |
| Optical Machine | O | O | O | O | O | O |
| Circuit Board | O | O | O | O | O | O |
| Fan | O | O | O | O | O | O |
| Other Wires | X | O | O | O | O | O |
| Remote Control | O | O | O | O | O | O |
| Power Supply | O | O | O | O | O | O |
| O: Content of the hazardous substance in all homogeneous materials of the component is under the limits of SJ/T11363-2006. X: Content of the hazardous substance exceeds the limit requirements specified by SJ/T11363-2006 in at least one homogeneous material of the component. The components labeled "X" " have no substitutive due to global technology development limits. Circuit board assembly *: including printed circuit board and its components, electronic components, etc.
| ||||||
The number in the logo represents the normal environmental service life of the product. (Battery Excluded)Important Safeguards
- Please read the manual carefully before operating projector. Please use standard power cable to acheive stable power supply
- Please use power supply and cable indicated on the rating label. The projector should be kept away from cloths, sofas and anything that may block the ventilation scoop. Please keep the unit away from any flammable and explosive materials.
- Please do not disassemble the unit yourself as this will invalidate the warranty service. Please avoid watching lens directly when the projector is on so as to prevent our eyes from being hurt. The projector must be kept away from water and any other liquids.
- To prevent electric shock, please keep the projector away from rain and moisture. It is recommended to switch off the projector after it has run for 6 hours continuously. Please use the original foam and other cushioning materials when transporting the projector.
- If the projector does not work, please contact the authorized service agent.
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
