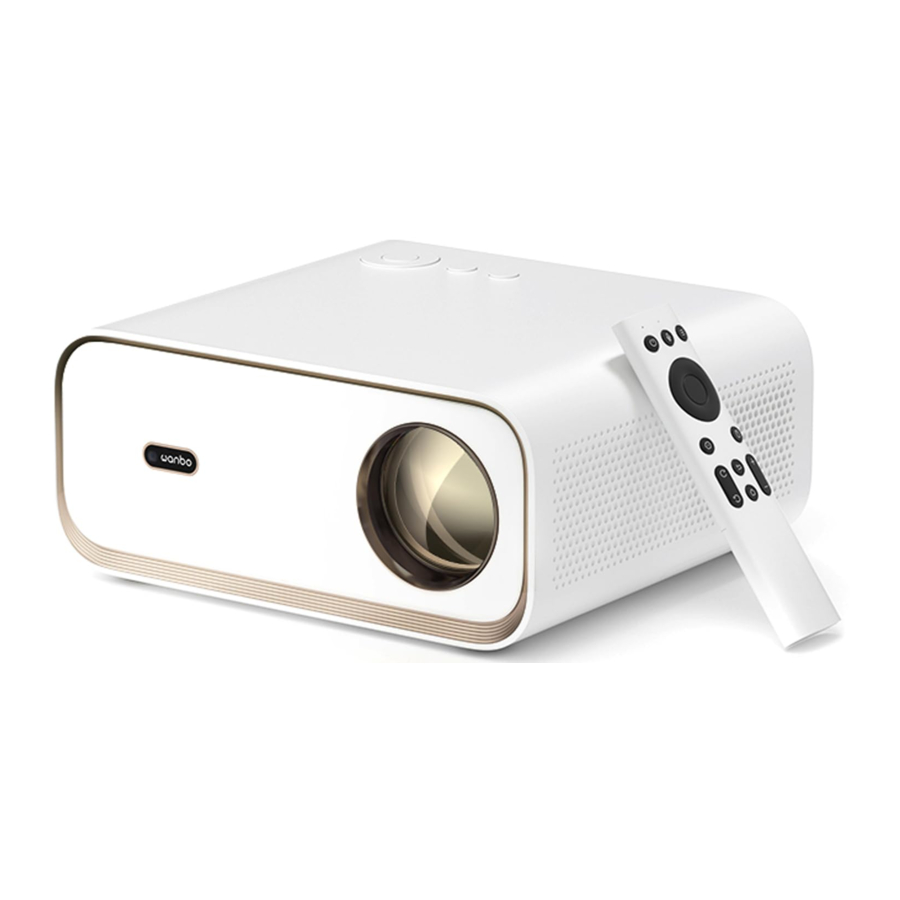

Wanbo X5 Manual

Projector Part Name and Function

 Projector Part Name and Function

Installation and Adjustment

  1. Device Power-On and Power-Off
    Power-On
    Method 1: Press the power button on the projector to start.
    Method 2: Point the remote control to the projector and press the power key to turn it on.

    Power-Off
    Short press the power button or the " " key on the remote control, once shutdown prompt box appears, short press the power button or the power key on the remote control again.
  1. Adjusts Focal Length

    Schematic diagram of blurred image

    Focus Length: When the picture image is blurred (indicated as the right picture), adjust the lens focus through " " " " on the remote control to achieve the best definition.

Projector hanger installation steps

  1. Remove the 4 pads
  2. Adjust hanger angle to align with the hole and then tighten screws
  3. Fixed the hanger

Basic Parameters

Product Name Wanbo Projector Display Principle LCD
Light Source LED Horn 5W*2
Operation Mode Remote Control Working Environment 0-35°C
Output Port Headphone Audio Output Input Port HDMI/USB/AV IN
Net Weight 3.2 kg Machine Size 265*235*119 mm
Accessory User Manual / Remote Control / Power Cord Power 135 w

Remote Control

Mobile Phone with the Same Screen

The following steps can help us to display content of our mobile phone to projection screen synchronously through wireless wifi, just enjoy with a larger picture. Equipment requirements: support devices above IOS6 and Android 5.3 Min.

iPhone
Support for IOS6 or Over IOS6

Android
Support for Android 5.3 Min

Android Devices User Instruction

  1. Ensure the Phone and Projector are under the same WIFI (For Android Only).
  2. Open"Eshare"of the projector.
  3. Choose the device with the same name with Eshare to complete mirror.

IOS Devices User Instruction

  1. Ensure the Phone and Projector are under the same WIFI (For IOS Only).
  2. Open "Eshare" of the projector.
  3. Open "AirPlay" / "Mirror" of the Phone.
  4. Choose the device with the same name with Eshare to complete mirror.

IOS Old Version

IOS New Version

How to be with the same screen for iPhone under status of No Wifi

  1. If there has no WIFI, firstly open 4G network of iPhone, then open WIFI hot spot in the "Settings" interface of the phone.
  2. Collect iPhone's hot spot WIFI for the projector.
  3. Open "Eshare".
  4. Open "Airplay" / "Screen Mirror".
  5. Find the projector and click.

Signal Source Setting

Enter Setting interface in the main screen and select input source. Enter into HDMI signal channel, Press "OK" " to switch input source.
Note:
If you want to return to the previous layer, please press the return key;
If you want to return to the main interface, please press the main screen key.

Mobile Phone Projection

How to "push" contents to the projector
* Note: Advantage of push is it does not affect normal use of the mobile phone.

  1. Ensure the Phone and Projector are under the same WIFI.
  2. Open "Eshare".
  3. Open "Airplay" / "Screen Mirror".
  4. Find the projector and click.
  5. Open video software of the mobile phone and finds the TV push icon in the four corners (it's usually on the top right or on the
    bottom right) (Each APPs have different push icon design).
    * Note: Not all video software have function of push.
  6. Click this icon to push videos to the projector. At the same time, we can have other operations on the phone, it will have no conflict.


Schematic diagram of some push icons

Projection Distance Reference

Projection size (under status of no keystone correction / Inch) Screen length * width (m) Lens ~ screen (m)
40 0.89*0.5 1.33
60 1.33*0.75 2.0
80 1.77*1.0 2.67
100 2.21*1.25 3.33
120 2.66*1.49 4.0
140 3.10*1.74 4.67
160 3.54*1.99 5.33
180 3.99*2.24 6.0

Note: Projection size and distance are calculated according to projection ratio, which may have a deviation and subject to actual status.

U Disk Support Format

File Type File format supported
Picture JPG/PNG/BMP
Video Support MP4,MOV,3GP,AV1,DIVX,FLV,ISO,M2TS,MKV,MPG, RMVB,TP,TRP,TS,WMV,VOB,DAT,ASF
Audio MP3,WMA,MP2,OGG,M4A,FLAC,3GP,WAV,AC3,M3U, RM,WMV,DTS

Note: Specific operation contents are subject to actual situation due to irregular update of the product system

Cleaning Method

Please make sure the power plug is unplugged before cleaning.
Do not use pesticides or other volatile chemicals on the projector or lens. Do not let rubber or vinyl products contacts the projector for a long time, which will damage the coating and make it peeled off.

  • Clean the Projector
  1. Wipe with a soft, dry cotton cloth. If it's dirtied seriously, we can wipe with soft cloth that stuck with diluted neutral detergent, then dry with a clean and dry cloth. Please pay more attention if used with chemical fiber cloth.
  2. Don't use thinner, benzene or any other solvents to avoid quality reduction or coating peeling off etc.
  3. A brush can be inserted into the front of the vacuum cleaner to remove dirt inside the vents. Please don't use vacuum cleaner with no connector, or clean with vents directly.
  4. Please don't scrape the machine with nails or any other hard objects so as to avoid scratches.
  • Lens Cleaning
  1. Clean lens with the same method for camera lens: please use professional blow dryer or cleaning paper for glasses, ensure lens are not scratched.
  • Inlet and Outlet Dust Cleaning
  1. Dust in the inlet and outlet will prevent ventilation and increase the internal temperature, which will cause defect.
  2. Disconnect power line after turn off the projector.
  3. Clean the exterior with an electric vacuum cleaner, please install brush head adapter on the vacuum cleaner first. Kindly take note: don't use vacuum cleaner with no connector or brush.

Poisonous and Harmful Substance, Element Name and Content

Part name Hazardous substances
Lead
(Pb)
Mercury
(Hg)
Cadmium (Cd) Hexavalent chromium
(Cr(VI))
Polybro minated
Biphenyls
(PBB)
Polybro minated
Diphenyl
Ethers
(PBDE)
Shell O O O O O O
Optical Machine O O O O O O
Circuit Board O O O O O O
Fan O O O O O O
Other Wires X O O O O O
Remote Control O O O O O O
Power Supply O O O O O O
O: Content of the hazardous substance in all homogeneous materials of the component is under the limits of SJ/T11363-2006.
X: Content of the hazardous substance exceeds the limit requirements specified by SJ/T11363-2006 in at least one homogeneous material of the component. The components labeled "X" " have no substitutive due to global technology development limits. Circuit board assembly *: including printed circuit board and its components, electronic components, etc.
The number in the logo represents the normal environmental service life of the product. (Battery Excluded)

Important Safety Precautions

You are recommended to use the projector in a dark room to achieve the best effect.

  1. Please don't install in places that directly blown by cold and warm air of air-conditioning, water condensation or high temperature may lead to failure to the machine.
  2. Ensure adequate ventilation and vent are not blocked to prevent heat accumulation inside the machine.
  3. Please prevent foreign matters such as nails or paper scraps from falling into the machine. Do not insert any metals such as iron wire or screwdriver into the machine. Please turn off the power immediately and turn to professional technician to remove it if any foreign matters fall into the body.
  4. Do not place any liquid on this machine to avoid risk of electric leakage.
  5. Please use soft packaging materials to move the projector, keep the projector from violent vibration.
  6. Areas near the exhaust will become hot during and after we use the projector, it may lead to scald if we touch with hand.
  7. Please don't watch lens directly when it's on so as to protect our eyes from damage.

warningNote:

  • Don't open the shell to prevent electric shock, Please turn to qualified professional maintenance personnel for the maintenance as there are no parts in the machine that users can repair themselves.
  • Don't expose the machine to rain or moisture so as to prevent misfire or electric shock.
  • The product is applicable to be used under a temperature of 0-35 for a safe side.


Don't install in places with poor ventilation

Don't block the vent (Inlet or Outlet)


Don't install in places that hot and humid

Don't install in dusty and smoky areas
