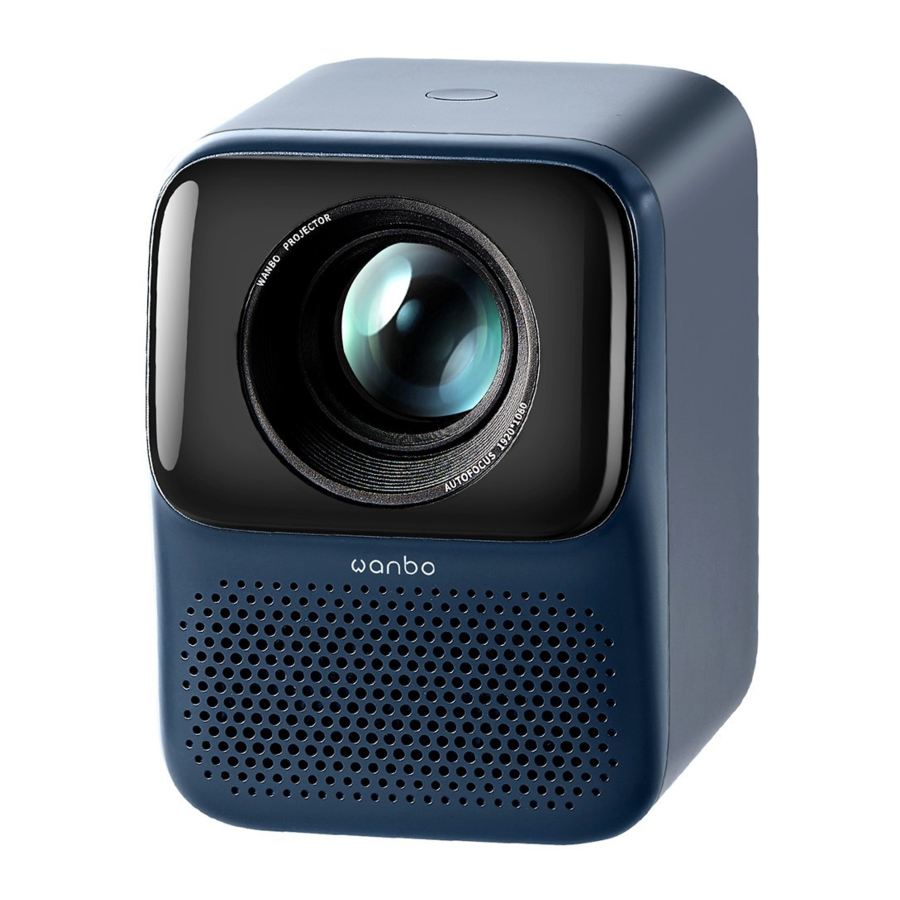

Wanbo T2 Max Manual

Projector Part Name and Function

Installation and Adjustment

Device Power-On and Power-Off

Power-On
Method 1: Press the power button on the projector to start.
Method 2: Point the remote control to the projector and press the power key to turn it on.

Power-Off
Short press the power button or the "" key on the remote control, once shutdown prompt box appears, short press the power button or the power key on the remote control again.

Adjusts Focal Length

Focus Length: When the picture image is blurred (indicated as the right picture), adjust the lens focus through "" "" on the remote control to achieve the best definition.

Basic Parameters

Remote Control

Mobile Phone with the Same Screen

The following steps can help us to display content of our mobile phone to projection screen synchronously through wireless Wi-Fi, just enjoy with a larger picture.

Equipment requirements: support devices above IOS6 and Android 5.3 Min.

Android Devices User Instruction

1. Ensure the Phone and Projector are under the same Wi-Fi (For Android Only).
2. Open "Eshare" of the projector.
3. Choose the device with the same name with Eshare to complete mirror.

IOS Devices User Instruction

1. Ensure the Phone and Projector are under the same Wi-Fi (For IOS Only).
2. Open "Eshare" of the projector.
3. Open "AirPlay" / "Mirror" of the Phone.
4. Choose the device with the same name with Eshare to complete mirror.


How to be with the same screen for iPhone under status of No Wi-Fi

1. If there has no Wi-Fi, firstly open 4G network of iPhone, then open Wi-Fi hot spot in the "Settings" interface of the phone.
2. Collect iPhone's hot spot Wi-Fi for the projector.
3. Open "Eshare".
4. Open "Airplay" / "Screen Mirror".
5. Find the projector and click.

Mobile Phone Projection

How to "push" contents to the projector

* Note: Advantage of push is it does not affect normal use of the mobile phone.

1. Ensure the Phone and Projector are under the same Wi-Fi.
2. Open "Eshare".
3. Open "Airplay" / "Screen Mirror".
4. Find the projector and click.
5. Open video software of the mobile phone and finds the TV push icon in the four corners (it's usually on the top right or on the bottom right) (Each APPs have different push icon design).
   * Note: Not all video software have function of push.
6. Click this icon to push videos to the projector. At the same time, we can have other. operations on the phone, it will have no conflict.

   Schematic diagram of some push icons

Signal Source Setting

Enter Setting interface in the main screen and select input source. Enter into HDMI signal channel, Press "OK" " to switch input source.

Note:
If you want to return to the previous layer, please press the return key;
If you want to return to the main interface, please press the main screen key.

U Disk Support Format

Note: Specific operation contents are subject to actual situation due to irregular update of the product system.

Projection Distance Reference

Note: Projection size and distance are calculated according to projection ratio, which may have a deviation and subject to actual status.

Cleaning Method

Please make sure the power plug is unplugged before cleaning.

Do not use pesticides or other volatile chemicals on the projector or lens. Do not let rubber or vinyl products contacts the projector for a long time, which will damage the coating and make it peeled off.

• Clean the Projector
  1. Wipe with a soft, dry cotton cloth. If it's dirtied seriously, we can wipe with soft cloth that stuck with diluted neutral detergent, then dry with a clean and dry cloth. Please pay more attention if used with chemical fiber cloth.
  2. Don't use thinner, benzene or any other solvents to avoid quality reduction or coating peeling off etc.
  3. A brush can be inserted into the front of the vacuum cleaner to remove dirt inside the vents. Please don't use vacuum cleaner with no connector, or clean with vents directly.
  4. Please don't scrape the machine with nails or any other hard objects so as to avoid scratches.
• Lens Cleaning
  1. Clean lens with the same method for camera lens: please use professional blow dryer or cleaning paper for glasses, ensure lens are not scratched.
• Inlet and Outlet Dust Cleaning
  1. Dust in the inlet and outlet will prevent ventilation and increase the internal temperature, which will cause defect.
  2. Disconnect power line after turn off the projector.
  3. Clean the exterior with an electric vacuum cleaner, please install brush head adapter on the vacuum cleaner first. Kindly take note: don't use vacuum cleaner with no connector or brush.

Important Safety Precautions

You are recommended to use the projector in a dark room to achieve the best effect.

1. Please don't install in places that directly blown by cold and warm air of air-conditioning, water condensation or high temperature may lead to failure to the machine.
2. Ensure adequate ventilation and vent are not blocked to prevent heat accumulation inside the machine.
3. Please prevent foreign matters such as nails or paper scraps from falling into the machine. Do not insert any metals such as iron wire or screwdriver into the machine. Please turn off the power immediately and turn to professional technician to remove it if any foreign matters fall into the body.
4. Do not place any liquid on this machine to avoid risk of electric leakage.
5. Please use soft packaging materials to move the projector, keep the projector from violent vibration.
6. Areas near the exhaust will become hot during and after we use the projector, it may lead to scald if we touch with hand.
7. Please don't watch lens directly when it's on so as to protect our eyes from damage.

Note:

• Don't open the shell to prevent electric shock, Please turn to qualified professional maintenance personnel for the maintenance as there are no parts in the machine that users can repair themselves.
• Don't expose the machine to rain or moisture so as to prevent misfire or electric shock.
• The product is applicable to be used under a temperature of 0-35℃ for a safe side.

• Don't install in places with poor ventilation

• Don't install in places that hot and humid

• Don't block the vent (Inlet or Outlet)

• Don't install in dusty and smoky areas
