FineTek EG50 Operation Manual

EG50 Magnetostrictive Level Transmitter
Operation Manual
INSTALLATION
Sensor can be directly top mounted if the size of the connection hole is bigger
than the diameter of the float.
In case the diameter of the float is bigger than connection size, firstly dismantle
float and mount. While installing back the float needs to be the right direction.
Float have a mark showing correct direction to be mounted
Position of the ring clip must be aligned with stem marked position
Sensor must not be mishandled, squeezed, bended or deformed. In case of any
deformation and abnormal functioning, sensor needs to be sent back to factory
for repair & calibration
Please do not replace the specifications of the float without permission; otherwise,
the product would fail to function properly.
The float should be prevented from striking or dropping on the ground so as to
avoid breaking the magnet inside the float and losing its function.
Please do not open the junction box to ensure ensure accuracy of the
measurement.
During transportation, sensor must be covered with anti vibration packaging such
as bubble packaging or spongy packaging etc.
When sensor is installed on non-metallic tank, the housing should be well
grounded.
INSTALLATION
Measuring
50~1000mm
range
4-20mA or 20-4mA
Output
RL  500Ohms
Resolution
45um
Range of more than
500mm, error ± 0.1% F.S
Linearity
Range of 500mm below
the error of ± 500um
Repeatability
±0.005% F.S
Digital output
RS485
Power supply
18~30Vdc
Ambient temp.
-40°C ~85°C
Operation temp.
-40°C ~125°C
DIMENSION
M12 M12
60.5 60.5
14
Upper blank
distance 51
Float
Iout1
Measuring Measuring
range range
Float
Iout2
Lower blank Lower blank
distance 15 distance 15

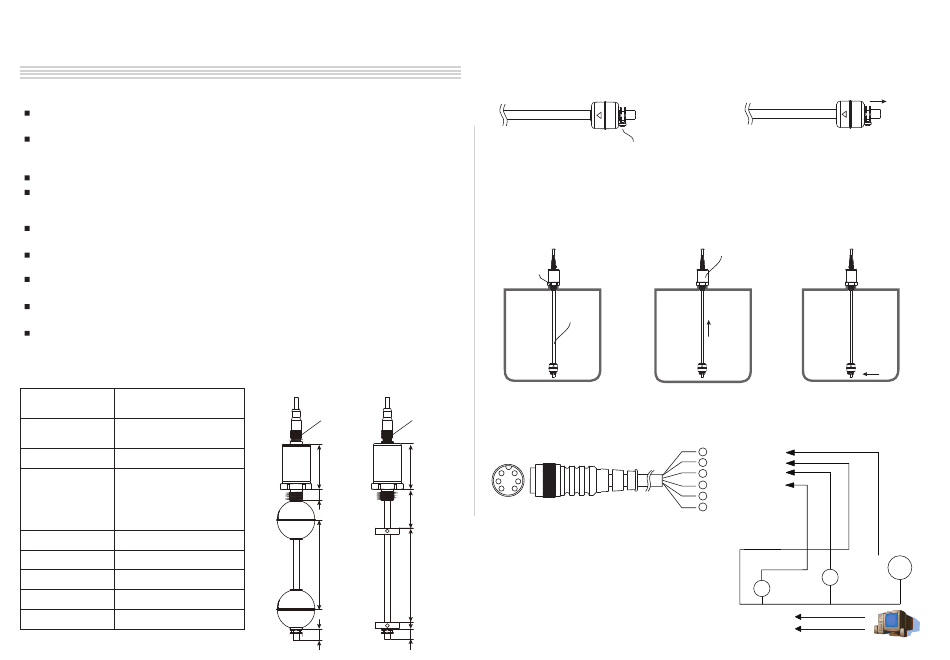

INSTALLATION METHOD IF THE FLOAT HAS TO BE TAKEN OFF
BEFORE INSTALLATION
Step 1
Loosen the ring clip at stem end
Ring clip
Step 4
Step 3
Put back the float ontothe
Install the product itself into
stem by specific direction
the tank, and screw the
mark on the float has to be
connection well.
toward the housing
Connection
stem
WIRING DESCRIPTION
2 1
3 7
4 6
Step 2
Take off the float.
Step 5
Screw the ring clip
well on the stem
Housing
Power +
Brown
4
Power -
Blue
6
Red Iout 1
2
White
Iout 2
3
+
Green RS485 D
7
Black RS485 D -
1
+
4~20mA
+ A
20~4mA
4~20mA
A -
20~4mA
-
Green RS 485 D+
Black RS 485 D-
DC
+
Power
Supply
-
18~30V
