Swing Case SC304P Installation Manual

Passenger side 2020-c jeep gladiator jt

Download this manual

SC304P - Passenger Side

2020-C Jeep Gladiator JT

Hardware Included

1. Truck Bracket

2. Striker Bracket

3. Mounting Screws (qty 6)

4. Assembly Nuts (qty 2)

2. INSTALLING MOUNTING BRACKET ASSEMBLY - Position the bracket to the light well/wheel

well area. Position the top of the bracket as shown in the inset photo ( referencing the top hole

in the bracket and the top inset dimple on the light well ). Using the six (6) self drilling screws

provided, attach the bracket to the truck. Be careful not to overtighten and strip out the holes.

SC304P_Install

Created June 2019

Part Number - SC304P

1. BRACKET ASSEMBLY - Attach the striker

bracket to the truck bracket using the two (2)

assembly nuts.

SC304P

Need help?

Do you have a question about the SC304P and is the answer not in the manual?

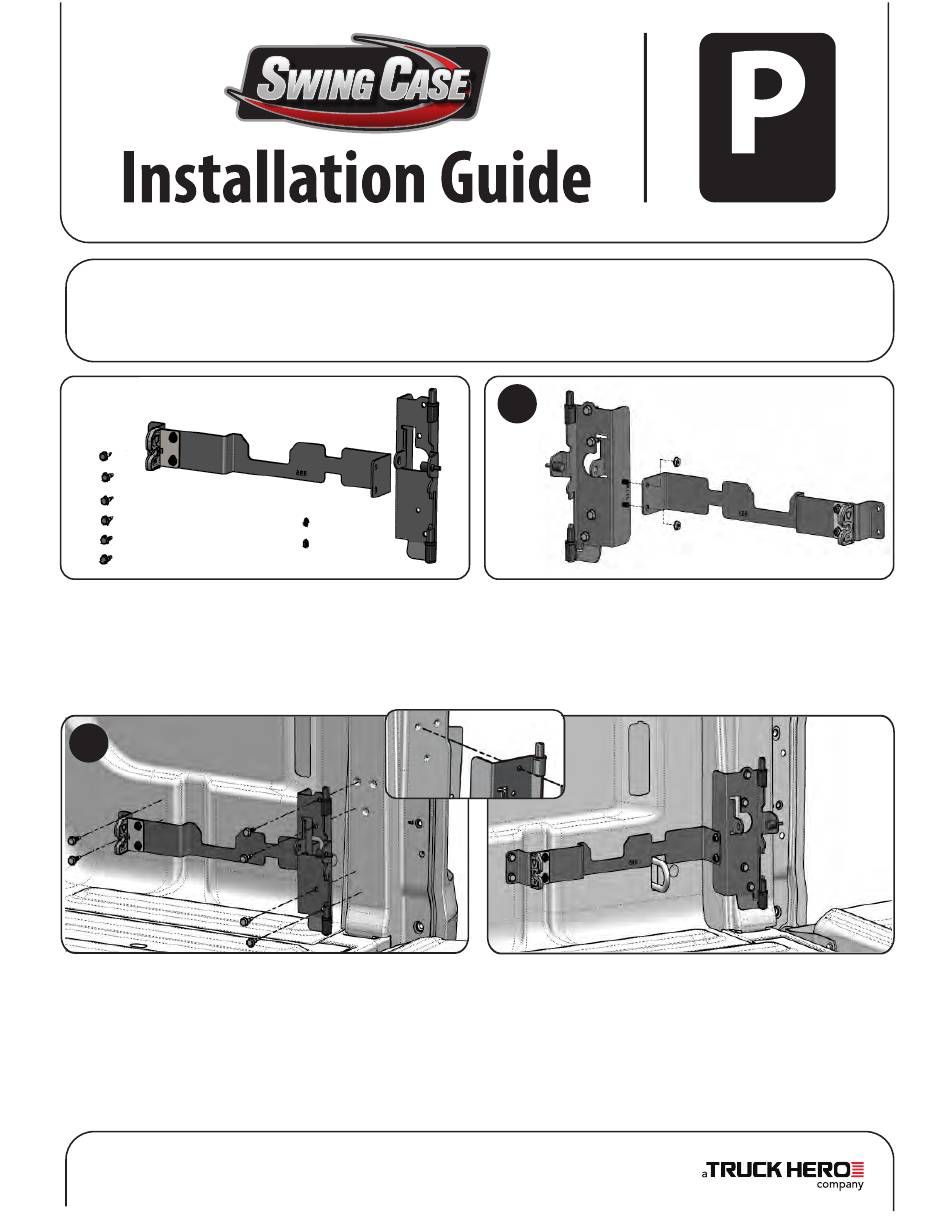

Page 1 SC304P SC304P - Passenger Side 2020-C Jeep Gladiator JT Hardware Included 1. BRACKET ASSEMBLY - Attach the striker 1. Truck Bracket bracket to the truck bracket using the two (2) 2. Striker Bracket assembly nuts. 3. Mounting Screws (qty 6) 4.
Page 2 3. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 4. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
Page 3 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper t of the brackets.
Page 4 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the nish. Be sure that products such as OFF®...
