Swing Case SC600P Installation Manual

Passenger side isuzu d-max 2012-2019
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
2
5
1

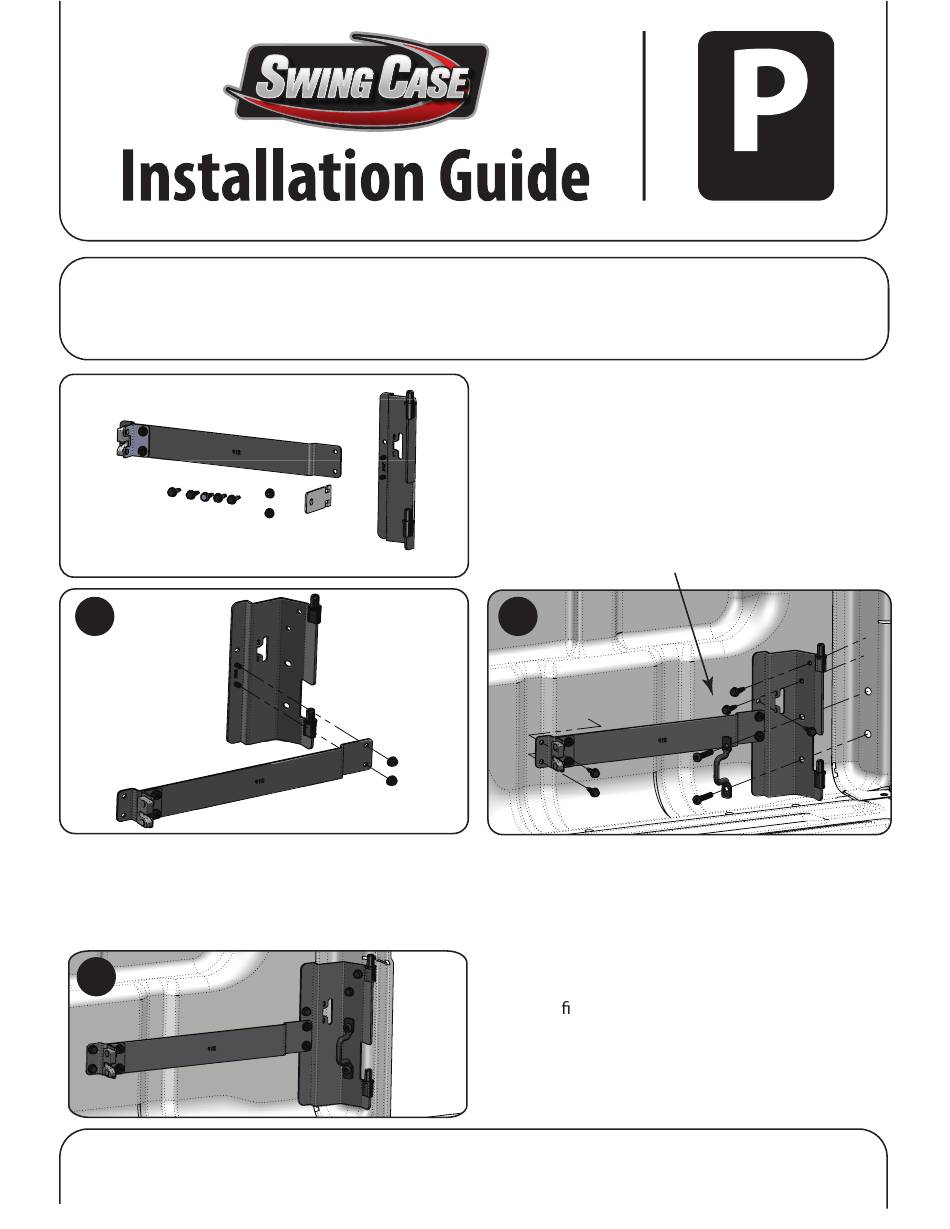

1. BRACKET ASSEMBLY - Attach the striker bracket to the truck bracket using the two (2) assembly nuts.
2. INSTALLING MOUNTING BRACKET ASSEMBLY - Remove the factory Isuzu tie down (T40 bit). Position
the bracket to the light well area, line up the holes and re-install the factory tie down using the factory
hardware.
3
UnderCover
59 Absolute Dr., Rogersville, MO 65742
866-900-8800 • undercoverinfo.com ©
UnderCover Inc., 2022
SC600P - Passenger Side
Isuzu D-Max 2012-2019
1
3
4
Hardware Included
1. Truck Bracket
2. Striker Bracket
3. Lock Tab
4. Assembly Nuts (qty 2)
5. Mounting Screws (qty 5)
Note: Must remove tie down, and reinstall with bracket.
2
3. INSTALLING MOUNTING BRACKET ASSEMBLY
(continued)
Using the ve (5) self drilling screws install the the
bracket according to drawing 2 . Be careful not to
overtighten and strip out the holes.
SC600P
Part# SC600P_Install Rev.4-26-22
