Swing Case SC800P Installation Manual

Passenger side mitsubishi l200 2010-2014 & 2016-c
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Mitsubishi L200 2010-2014 & 2016-C
2
3
1

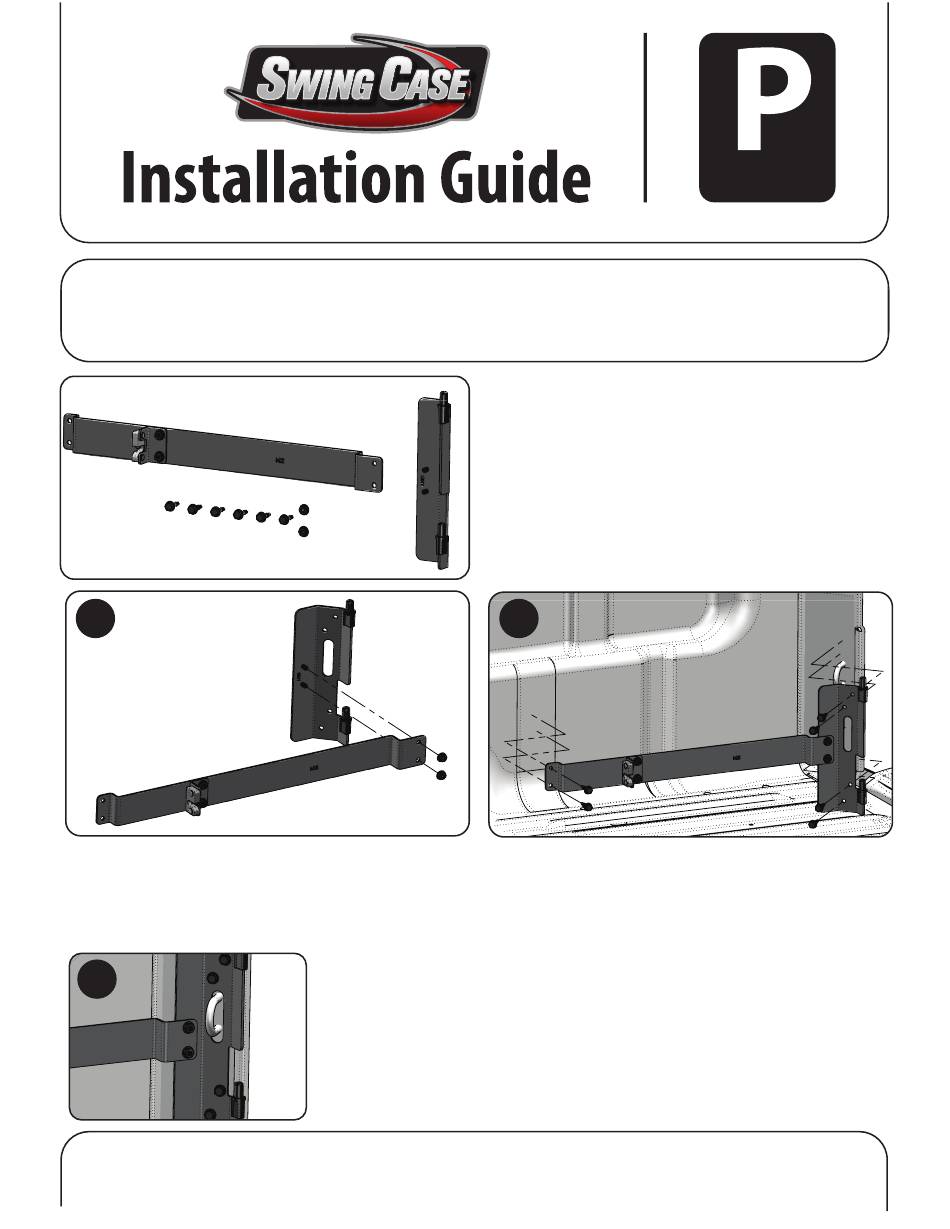

1. BRACKET ASSEMBLY - Attach the striker bracket to the truck bracket using the two (2) assembly nuts.
2. INSTALLING MOUNTING BRACKET ASSEMBLY - Position the bracket to the light well/wheel well area.
3
UnderCover
59 Absolute Dr., Rogersville, MO 65742
866-900-8800 • undercoverinfo.com
© UnderCover Inc., 2022
SC800P - Passenger Side
1
4
3. INSTALLING MOUNTING BRACKET ASSEMBLY (continued)
Mount the bracket over the tie down, according to the drawing. Using
the six (6) self drilling screws provided, attach the bracket to the truck .
Be careful not to overtighten and strip out the holes.
Hardware Included
Hardware Included
1. Truck Bracket
1. Truck Bracket
2. Striker Bracket
2. Striker Bracket
3. Mounting Screws (qty 6)
3. Mounting Screws (qty 6)
4. Assembly Nuts (qty 2)
4. Assembly Nuts (qty 2)
2
SC800P
Part# SC800P_Install Rev.4-26-22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC800P and is the answer not in the manual?

Questions and answers

Related Manuals for Swing Case SC800P

Summary of Contents for Swing Case SC800P

  • Page 1 SC800P SC800P - Passenger Side Mitsubishi L200 2010-2014 & 2016-C Hardware Included Hardware Included 1. Truck Bracket 1. Truck Bracket 2. Striker Bracket 2. Striker Bracket 3. Mounting Screws (qty 6) 3. Mounting Screws (qty 6) 4. Assembly Nuts (qty 2) 4.

  • Page 2: Operation And Adjustment

    4. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 5. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
  • Page 3 Pivot Lock Installation Insert the supplied pivot lock at an angle in between the lower tab and the top of the lower pivot bushing. While pushing upward on the pivot lock, rotate the pivot lock into position over the top over the lower pivot bushing.
  • Page 4 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper t of the brackets.
  • Page 5 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the finish. Be sure that products such as OFF®...
