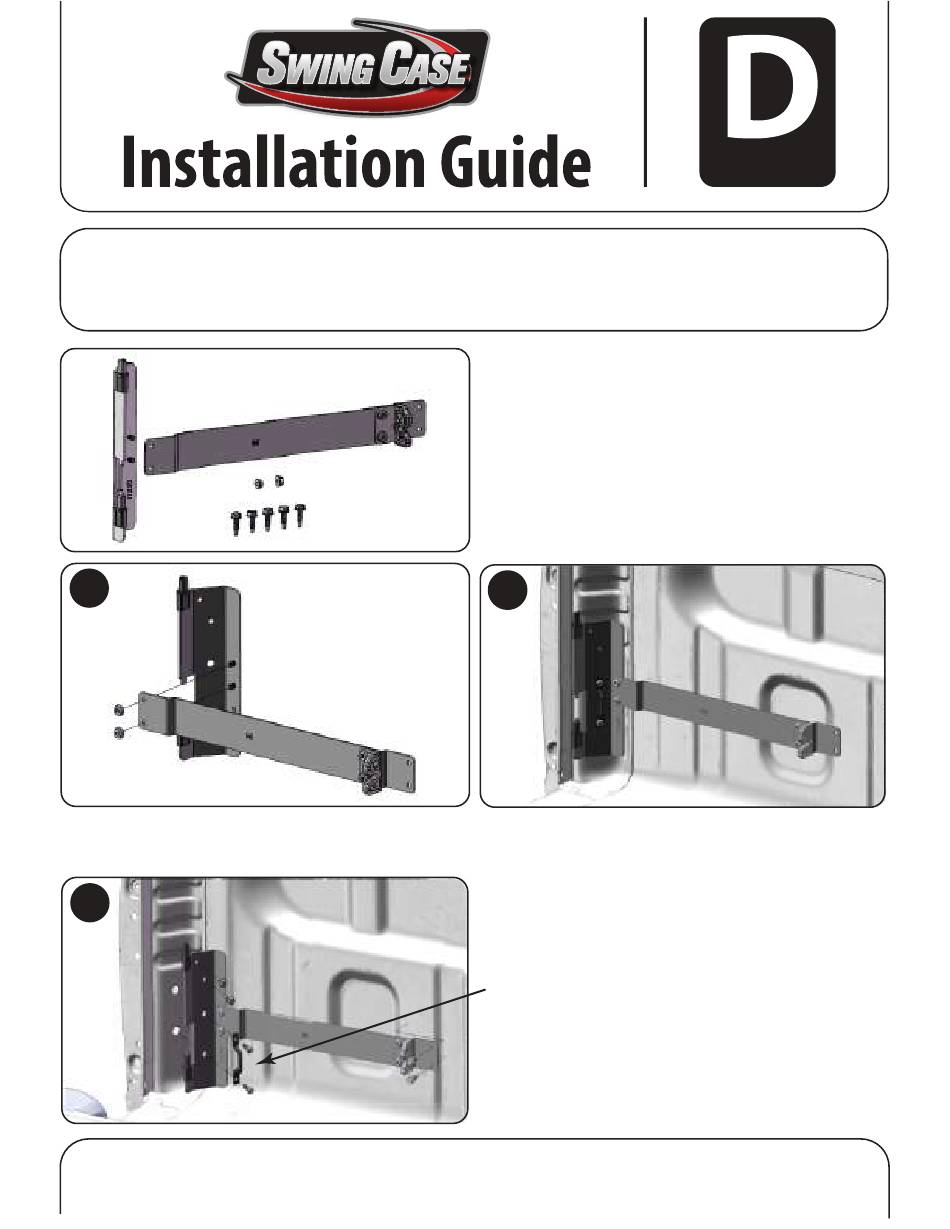

Swing Case SC601D Installation Manual

Driver side isuzu d-max 2020-2024
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
1
3
4
1
1. BRACKET ASSEMBLY - Attach the striker bracket to
the truck bracket using the two (2) assembly nuts.
3
UnderCover
59 Absolute Dr., Rogersville, MO 65742
866-900-8800 • undercoverinfo.com ©
UnderCover Inc., 2022
SC601D - Driver Side
Isuzu D-Max 2020-2024
2
Hardware Included
1. Truck Bracket
2. Striker Bracket
3. Assembly Nuts (qty 2)
4. Mounting Screws (qty 5)
2
2. INSTALLING MOUNTING BRACKET ASSEMBLY -
2. INSTALLING MOUNTING BRACKET ASSEMBLY -
Remove the factory Isuzu tie down (T40 bit).
Remove the factory Isuzu tie down (T40 bit).
Position the bracket to the light well area, line up
Position the bracket to the light well area, line up
the holes and re-install the factory tie down using
the holes and re-install the factory tie down using
the factory hardware.
the factory hardware.
Note: Must remove tie down, and reinstall with bracket.
3. INSTALLING MOUNTING BRACKET ASSEMBLY
(continued)
Using the five (5) self drilling screw install the
bracket according to drawing 2. Be careful not to
overtighten and strip out the holes.
SC601D
Part# SC601D_Install Rev.4-26-22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC601D and is the answer not in the manual?

Questions and answers

Related Manuals for Swing Case SC601D

Summary of Contents for Swing Case SC601D

  • Page 1 SC601D SC601D - Driver Side Isuzu D-Max 2020-2024 Hardware Included 1. Truck Bracket 2. Striker Bracket 3. Assembly Nuts (qty 2) 4. Mounting Screws (qty 5) 2. INSTALLING MOUNTING BRACKET ASSEMBLY - 2. INSTALLING MOUNTING BRACKET ASSEMBLY - 1. BRACKET ASSEMBLY - Attach the striker bracket to Remove the factory Isuzu tie down (T40 bit).

  • Page 2: Operation And Adjustment

    4. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 5. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
  • Page 3 Pivot Lock Installation Insert the supplied pivot lock at an angle in between the lower tab and the top of the lower pivot bushing. While pushing upward on the pivot lock, rotate the pivot lock into position over the top over the lower pivot bushing.
  • Page 4 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper fit of the brackets.
  • Page 5 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the finish. Be sure that products such as OFF®...
