Swing Case SC700D Installation Manual

Driver side volkswagon amarok 2010-2021
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Volkswagon Amarok 2010-2021
1
1

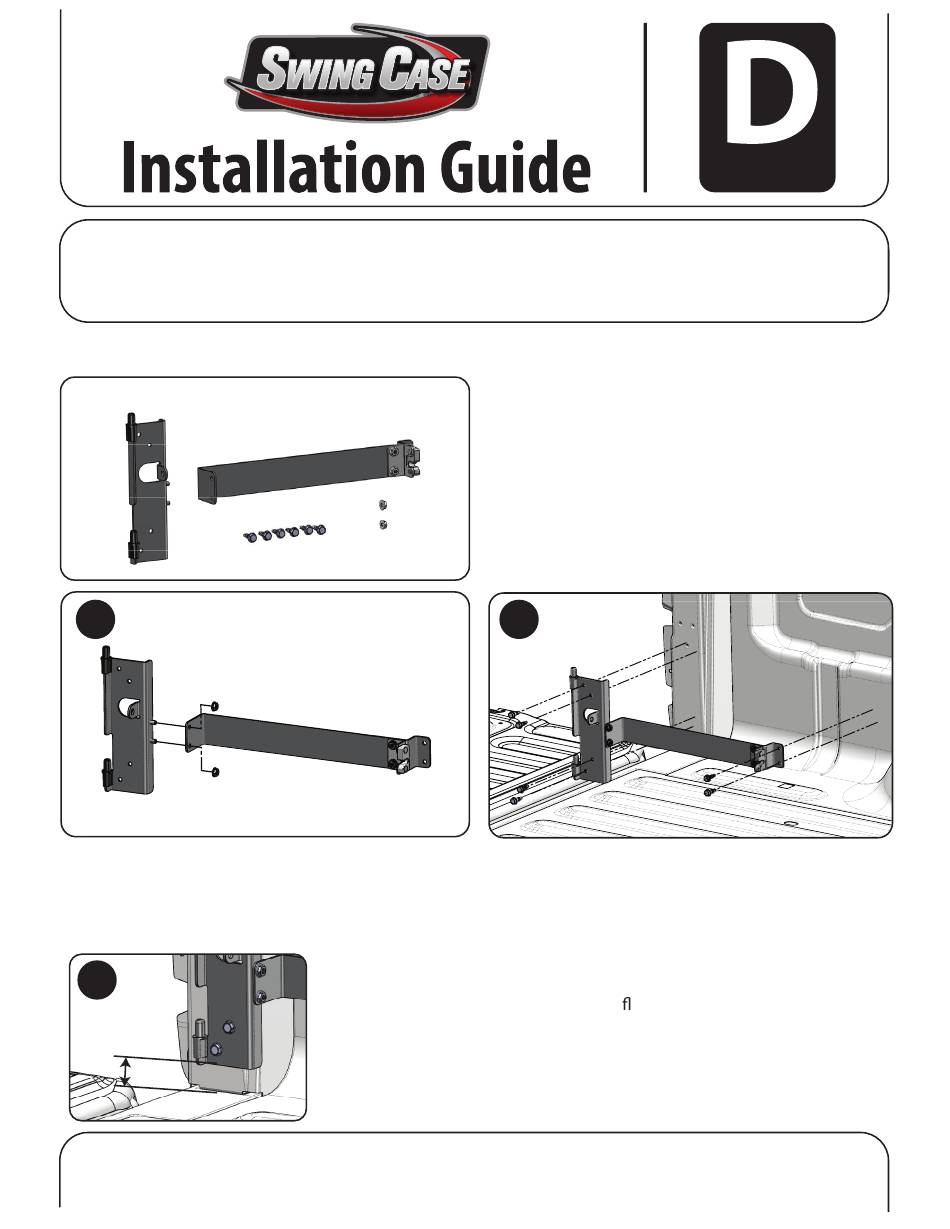

1. BRACKET ASSEMBLY - Attach the striker bracket to the truck bracket using the two (2) assembly nuts.
2. INSTALLING MOUNTING BRACKET ASSEMBLY - Position the bracket to the light well/wheel well area.
3
1 1/4"
(32 mm)
UnderCover
59 Absolute Dr., Rogersville, MO 65742
866-900-8800 • undercoverinfo.com ©
UnderCover Inc., 2022
SC700D - Driver Side
2
3
4
3. INSTALLING MOUNTING BRACKET ASSEMBLY (continued)
Mount the bracket 1 1/4" from the bed oor, according to the drawing.
Using the six (6) self drilling screws provided, attach the bracket to the
truck . Be careful not to overtighten and strip out the holes.
Hardware Included
Hardware Included
1. Truck Bracket
1. Truck Bracket
2. Striker Bracket
2. Striker Bracket
3. Mounting Screws (qty 6)
3. Mounting Screws (qty 6)
4. Assembly Nuts (qty 2)
4. Assembly Nuts (qty 2)
2
SC700D
Part# SC700D_Install Rev.4-26-22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC700D and is the answer not in the manual?

Questions and answers

Related Manuals for Swing Case SC700D

Summary of Contents for Swing Case SC700D

  • Page 1 SC700D SC700D - Driver Side Volkswagon Amarok 2010-2021 Hardware Included Hardware Included 1. Truck Bracket 1. Truck Bracket 2. Striker Bracket 2. Striker Bracket 3. Mounting Screws (qty 6) 3. Mounting Screws (qty 6) 4. Assembly Nuts (qty 2) 4. Assembly Nuts (qty 2) 1.

  • Page 2: Operation And Adjustment

    4. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 5. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
  • Page 3 Pivot Lock Installation Insert the supplied pivot lock at an angle in between the lower tab and the top of the lower pivot bushing. While pushing upward on the pivot lock, rotate the pivot lock into position over the top over the lower pivot bushing.
  • Page 4 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper t of the brackets.
  • Page 5 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the finish. Be sure that products such as OFF®...
